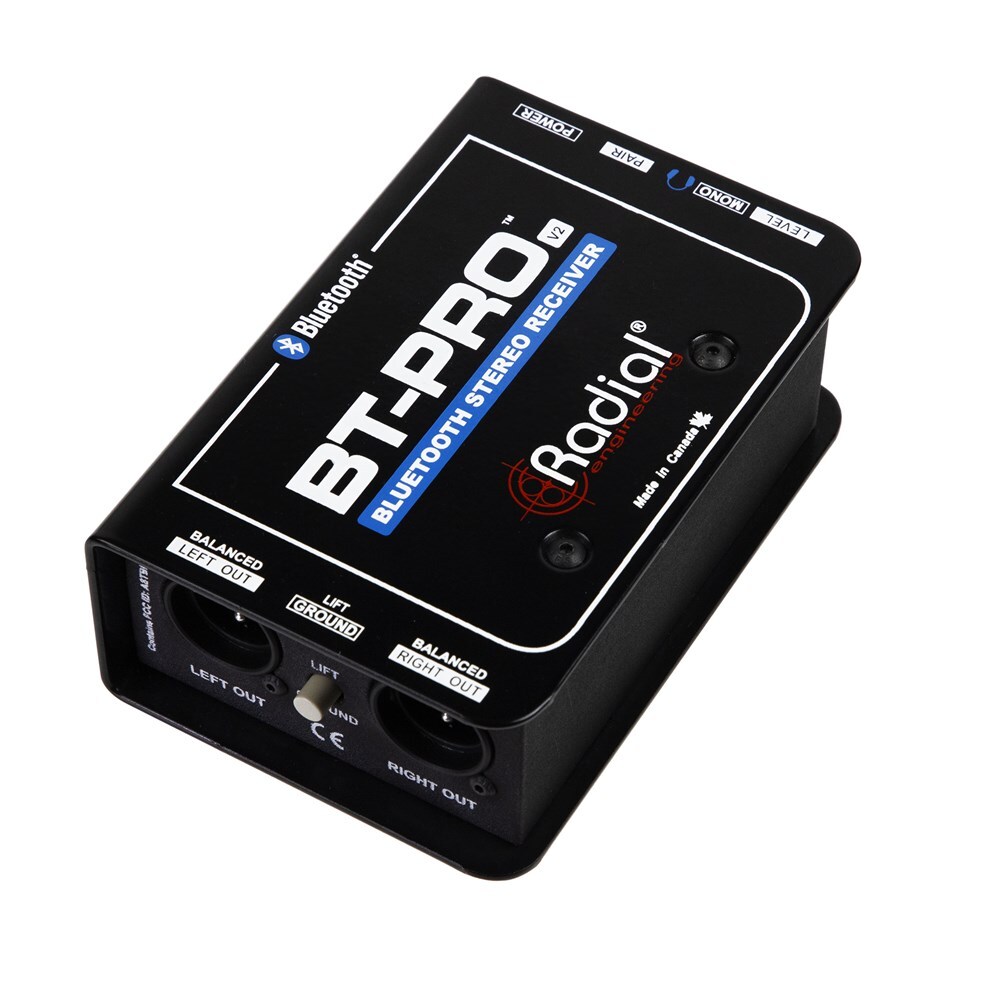

Radial BT-Pro V2

The BT-Pro V2 is a Bluetooth-enabled direct box that connects wirelessly to smartphones, tablets, and other mobile devices and provides a pair of balanced analog audio outputs to feed a PA system. Each BT-Pro V2 has a unique identifier, allowing multiple units to be used within the same building. The latest model of the BT-Pro can also be powered via 48V phantom from a mixing console.

• Wirelessly connect smartphones and tablets to a mixer

• Bluetooth reception of up to 30 meters (100ft)

• Dual balanced XLR outputs feed the PA system

• Powered via external supply or 48V phantom power

• Unique device ID allows multiple BT-Pro’s in a single location

Wireless connection, professional audio
The BT-Pro V2 makes it easy to quickly connect to any smartphone, tablet, or mobile device for high quality audio playback through a sound system. It wirelessly pairs over Bluetooth, eliminating the need to search for adaptor cables and providing you with the freedom to move around while staying connected. Superior audio quality is provided using the Bluetooth 5.0 protocol, allowing the BT-Pro to be used for playback even in critical listening environments. While the BT-Pro V2 is designed to last with a 14 gauge steel outer shell and high durability connectors and controls, it also has an enhanced reception range thanks to the plastic injection-molded insert, which allows wireless signals to pass through unimpeded. Balanced XLR outputs are provided for connection to pro audio equipment, with a level control to allow for easy volume adjustments, a headphone output for testing purposes, and a mono switch to reduce channel requirements when needed.

48V operation & unique device identifiers
For ease of use in live sound applications, the BT-Pro can be powered via 48V phantom from the PA console. This provides the ability to use the included external power supply as a redundant backup, or to eliminate it from the setup altogether. Under 48V phantom power, the BT-Pro provides mic-level signals at the XLR outputs, but when the external power supply is used it is capable of generating line-level signals that can be connected to the line inputs of a PA console and avoid using additional mic-level channels. Each individual BT-Pro V2 also has a unique Bluetooth identifier, allowing multiple units to be successfully used in close proximity to one another. This makes it easy for commercial multi-room facilities to employ a number of BT-Pro units without any confusion when trying to connect to a receiver in a specific part of the building.

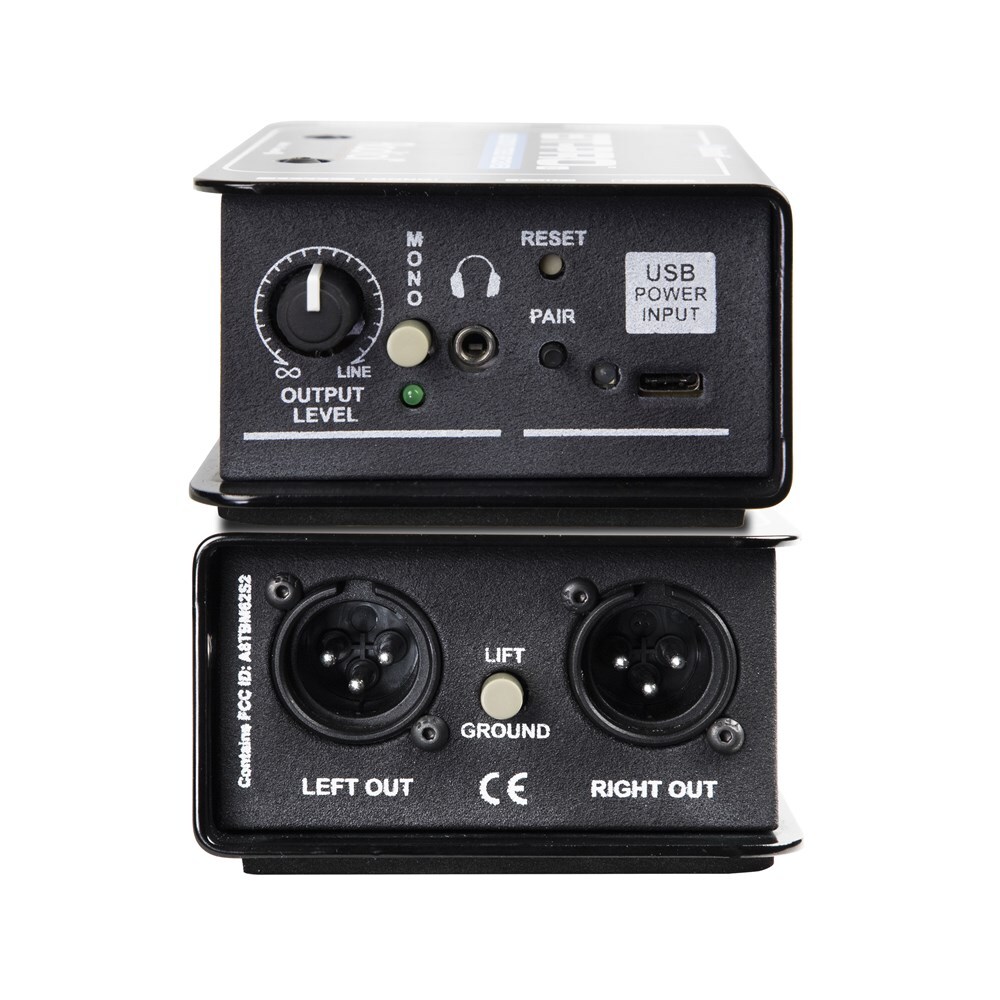

FEATURES

Level
Used to set the overall output level at the XLR and headphone outputs.

Mono
Sums the stereo signal to mono. When active, the red LED illuminates. Mono mode reduces the channel count on the PA or lets you send the signal to two separate audio system simultaneously.

Headphone
Mini 3.5mm (1/8”) stereo TRS headphone output is used to check the output from the source for troubleshooting or queueing tracks.

Pair
Press and hold the Pair button for 3s to disconnect from any Bluetooth devices and force the BT-Pro into pairing mode. During playback, double-tap this button to remotely pause/resume playback on your source device. The Pair LED indicates the pairing and playback status of the BT-Pro.

Reset
Press this recessed switch to power cycle the BT-Pro, allowing you to re-establish a wireless connection should an error occur.

Power Input / USB
Used to locally power the BT-Pro. Connect via USB-C cable to a computer or a power adaptor brick (included). This is a power input only and will not pass audio or other data.

XLR Out
Standard male XLR outputs provide balanced analog audio at mic or line-level to feed a PA system. The BT-Pro can be powered remotely by providing 48V phantom power to these outputs.

Ground Lift
Used to eliminate hum and buzz caused by ground loops. Lifts pin-1 on both XLR outputs.

Plastic Insert
The BT-Pro V2 combines a 14 gauge steel protective outer shell with an injection-molded insert which allows wireless signals to pass through unimpeded, enhancing the effective wireless range of the device while ensuring it stands up to use on stage night after night.

SPECIFICATIONS

Audio circuit type: Active audio line driver
Frequency response: 20Hz to 20KHz
Dynamic range: 90dB
Total harmonic distortion: 0.05%
Output Impedance: 150Ω
Signal to Noise: 90dB
Bluetooth Compliance: Bluetooth 5.0
Data Compression: SBC Codec
Features: Mono Sum, Ground lift, Level Control, Headphone
Input Connectors: Bluetooth 5.0, Device range up to 100'
Output Connectors: XLR-M, 3.5mm TRS Headphone
Extras: Included power supply
Construction: 14 gauge steel outer shell, molded nylon insert
Finish: Durable powder coat
Size (L x W x D): 3.3” X 5” X 2” (84 x 127 x 51mm)
Weight: 1.1lbs (500g)
Power: USB-C connector (Power Only) or 48V Phantom
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
