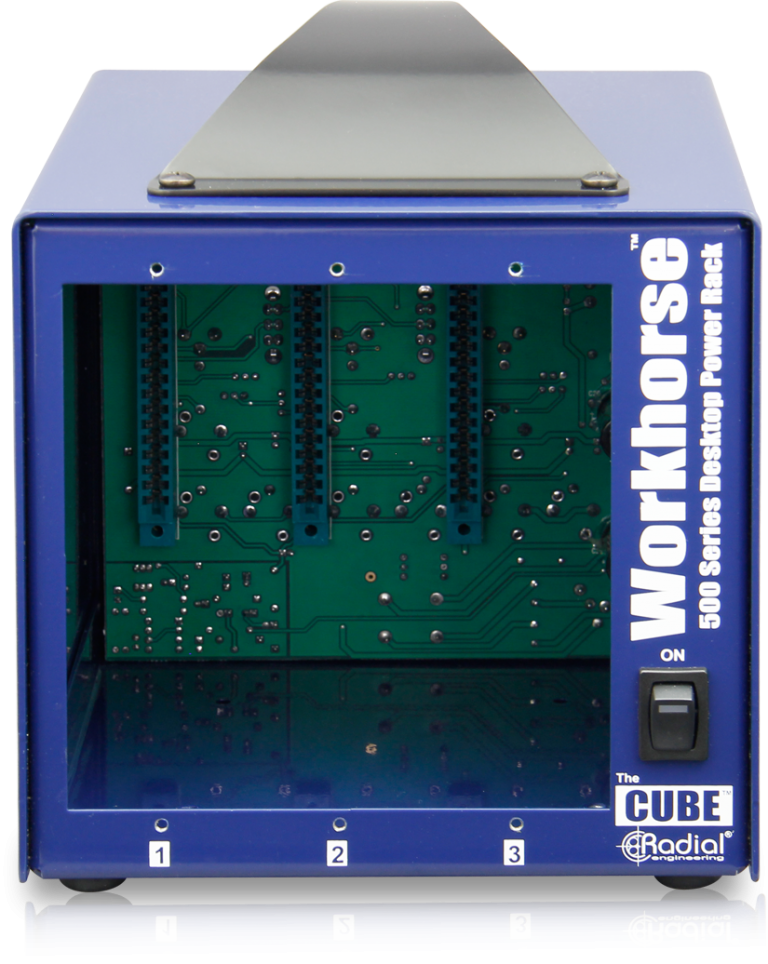

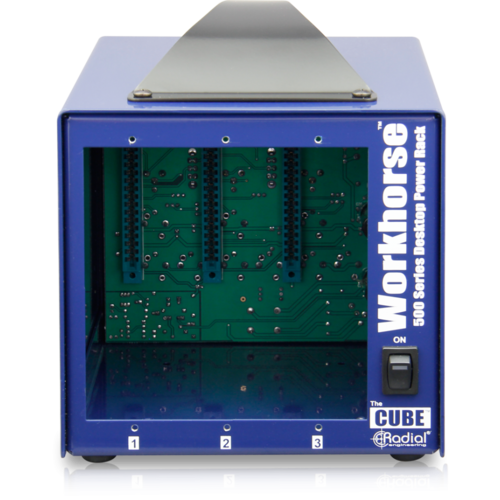

Radial Cube

Portable Desktop 500 Series Power Rack

The Cube is a three module desktop power rack designed to bring the fun and excitement of 500 series modular audio to everyone.

• Desktop power rack houses three 500 series modules

• Compatible with Radial and older API systems

• Provides up to 500 milliamps of shared current

• Optional angles let you recess it into the table top

Desktop power supply
Following the criteria established by the Radial Workhorse, the Cube is 100% backwards compatible with older API modules while being optimized for Radial's expanding range of preamps, processors and routing devices. Construction begins with a 14 gauge steel frame and features dual gold contact EDAC 15-pin connectors for optimal signal transfer. To maximize headroom, the external supply delivers 500mA of current for power hungry modules plus a separate 48V phantom tap delivers a full 10mA of current for microphone preamps. Rear panel connectivity includes standard XLRs for each slot along with ¼" TRS connectors for multiple modules, cross patching and parallel processing. Instead of the traditional 'hardwire patch' system employed by others, The Cube employs an innovative feed function that patches modules together in series without the need of a cable. And stereo modules no longer need to be soldered to be paired, they can now be sync'd together using a simple switch. The Cube is also equipped with Omniport on each slot. This TRS jack enables the module manufacturer to implement a unique function for a given module such as a key input on a gate.

FEATURES

14-Gauge Steel
Heavy duty construction for added durability and improved shielding.

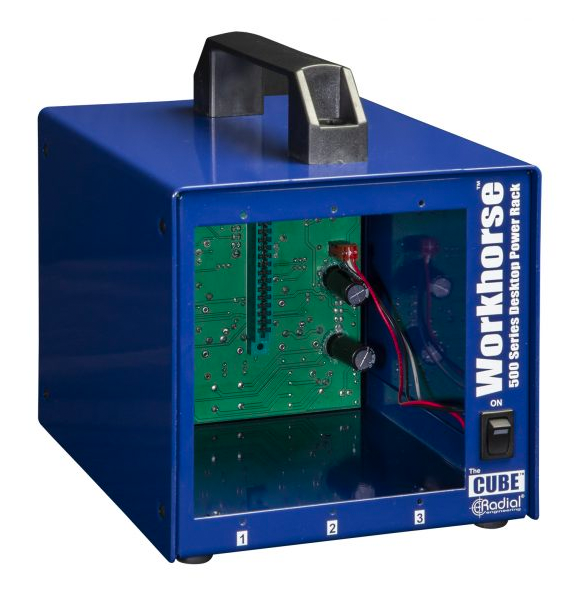

3 Space Power Rack
Lets you fit in any three 500 series modules.  Backward compatible with older API modules.

EDAC 15 Pin
Dual sided gold contacts to ensure connectivity. Employs original API spec to ensure compatibility.

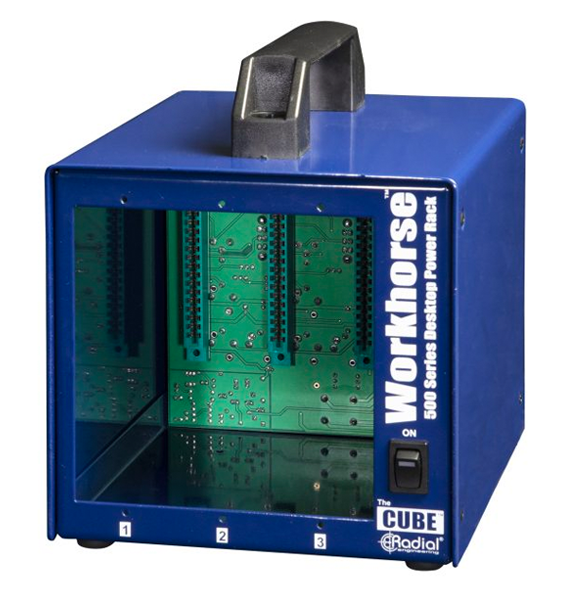

Carry Handle
Makes it easy to move the Cube around the studio with one hand. Can be removed.

Power Switch
Convenient front panel switch makes it easy to turn off and mute when swapping modules.

Rear Panel
Full complement of connectors for series and parallel signal processing.

48V Phantom Switch
Lets you turn 48V phantom power on or off.

Power OK
LED indicator lets you know your power supply is properly connected.

Power Supply
External supply provides nearly 600 milliamps of current to the three modules.

Male & Female XLRs
Used to connect signal to and from each of the three modules.

Feed Switch
Sends the output from one module into the next without requiring a cable.

Link Switch
Used to stereo link two modules when formatted for stereo use.

Omniport
Works with Radial modules and others to provide extra functionality.

SPECIFICATIONS

Audio circuit type: Connection buss from modules to connectors
Compatibility: Adheres to the Whos-Doc and VPR Alliance
Features: OmniPort
Input Connectors: 3 balanced XLR male, 3 ¼" TRS
Output Connectors: 3 balanced XLR male, 3 ¼" TRS
Extras: Desktop format; 500 milliamps available current; 166mA average current per slot
Construction: 14-gauge steel
Size (L x W x D): 7.5" x 7.5" x 6.25" (190 x 190 x 160mm)
Weight: 5.4 lb (2.5kg)
Shipping size (L x W x D): 9.0" x 12.5" x 9.25" (229 x 318 x 235mm)
Shipping weight: 7.85 lb (3.6kg)
Power: External 100V - 240V AC with 48V Phantom
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
