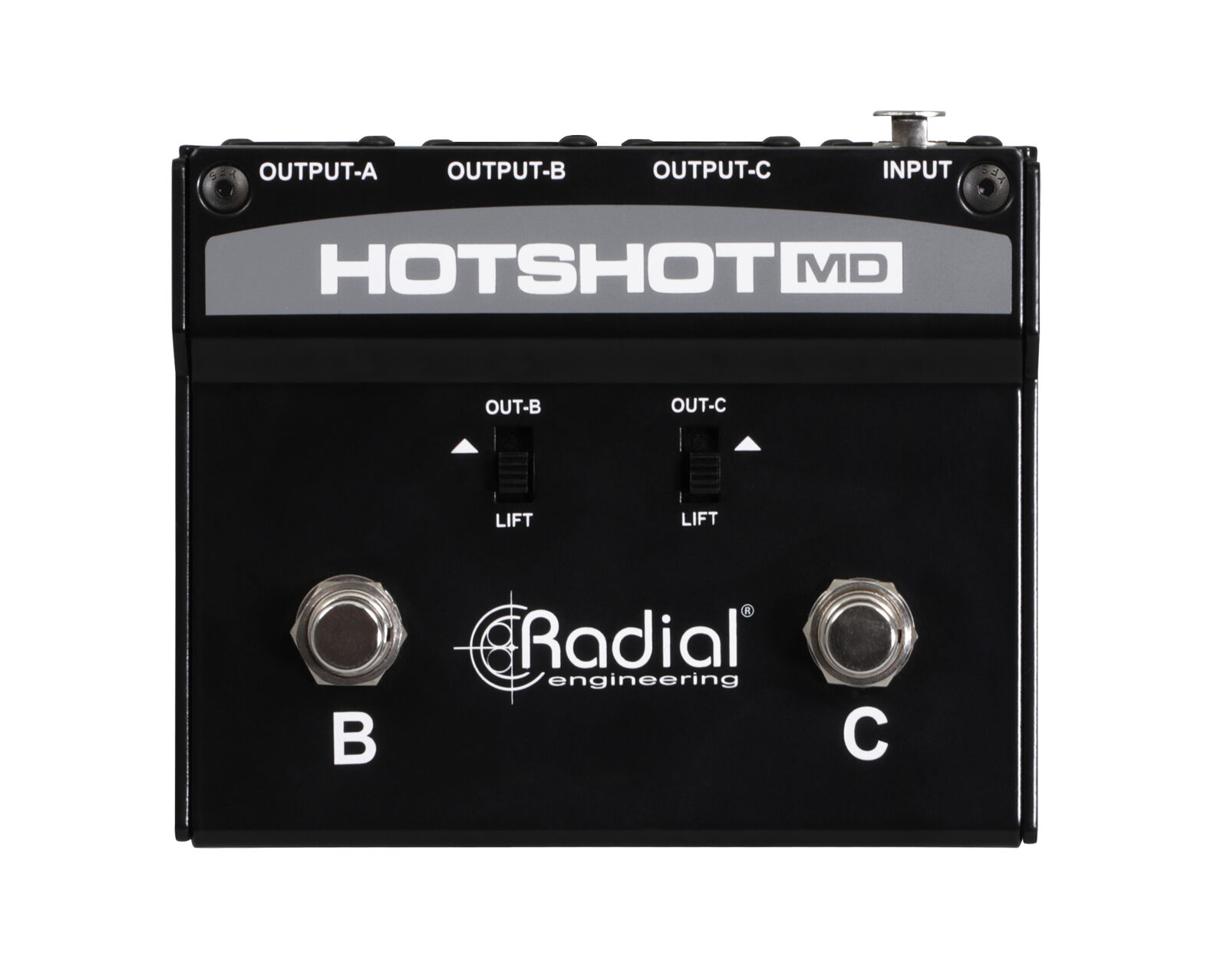

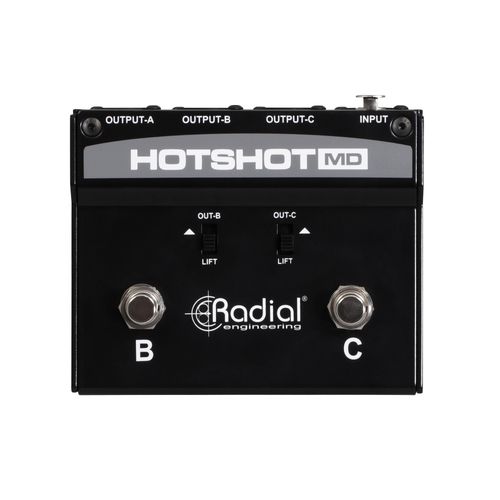

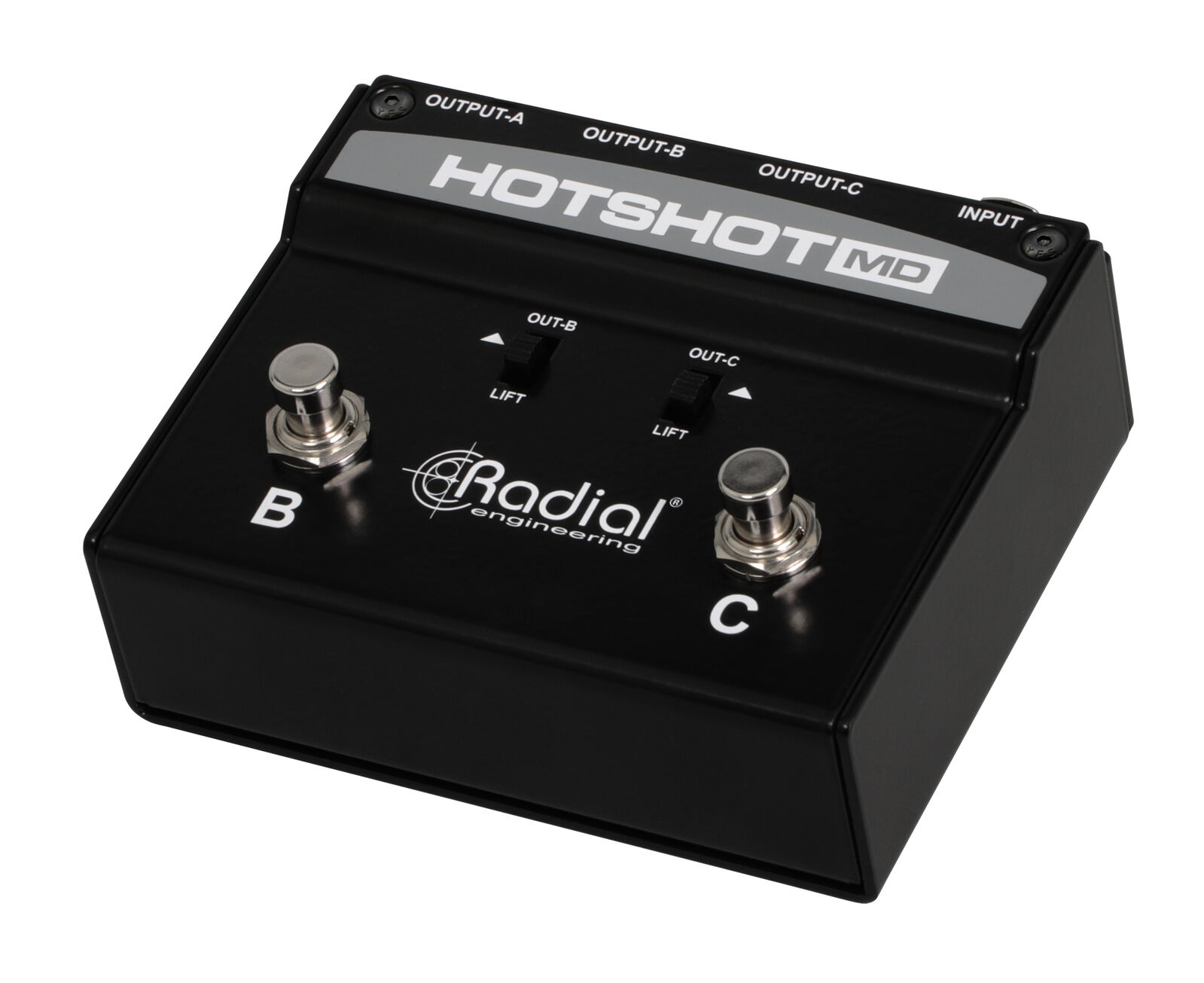

Radial HotShot MD

Call The Shots From One Mic

The Radial HotShot MD gives music directors and artists easy and discreet control over their microphone outputs to enable seamless transitions between singing, cueing the band, and coordinating with techs and engineers—all without disrupting the audience experience. Engineered with Radial’s signature road-ready construction and noise-free switching, the HotShot MD streamlines communication, boosts efficiency, and enables bandleaders to focus on delivering flawless performances.

FEATURES

• Redirects mic signal to communicate with techs, band members, or both

• Noise-free switching for a seamless stage performance

• Pristine signal path preserves the sound quality of the vocal mic

• 100% passive design does not require external power to operate

3 Channels of Discreet Onstage Communication
A noise-free solution for momentarily rerouting a dynamic microphone on stage, the HotShot MD allows signal to pass through Output-A when no footswitches are depressed, so your vocal mic feeds the PA system normally. If either the B or C footswitches are engaged singly, Output-A will be muted, and signal will be diverted to Output-B or Output-C, depending on which footswitch is depressed. This allows you to instantly reroute your mic to speak with band members or technicians as needed without the audience hearing a thing. Both footswitches can also be engaged simultaneously, so you can communicate with all parties at once. The moment you release either footswitch, your vocal mic automatically redirects back to the PA system so the performance can continue.

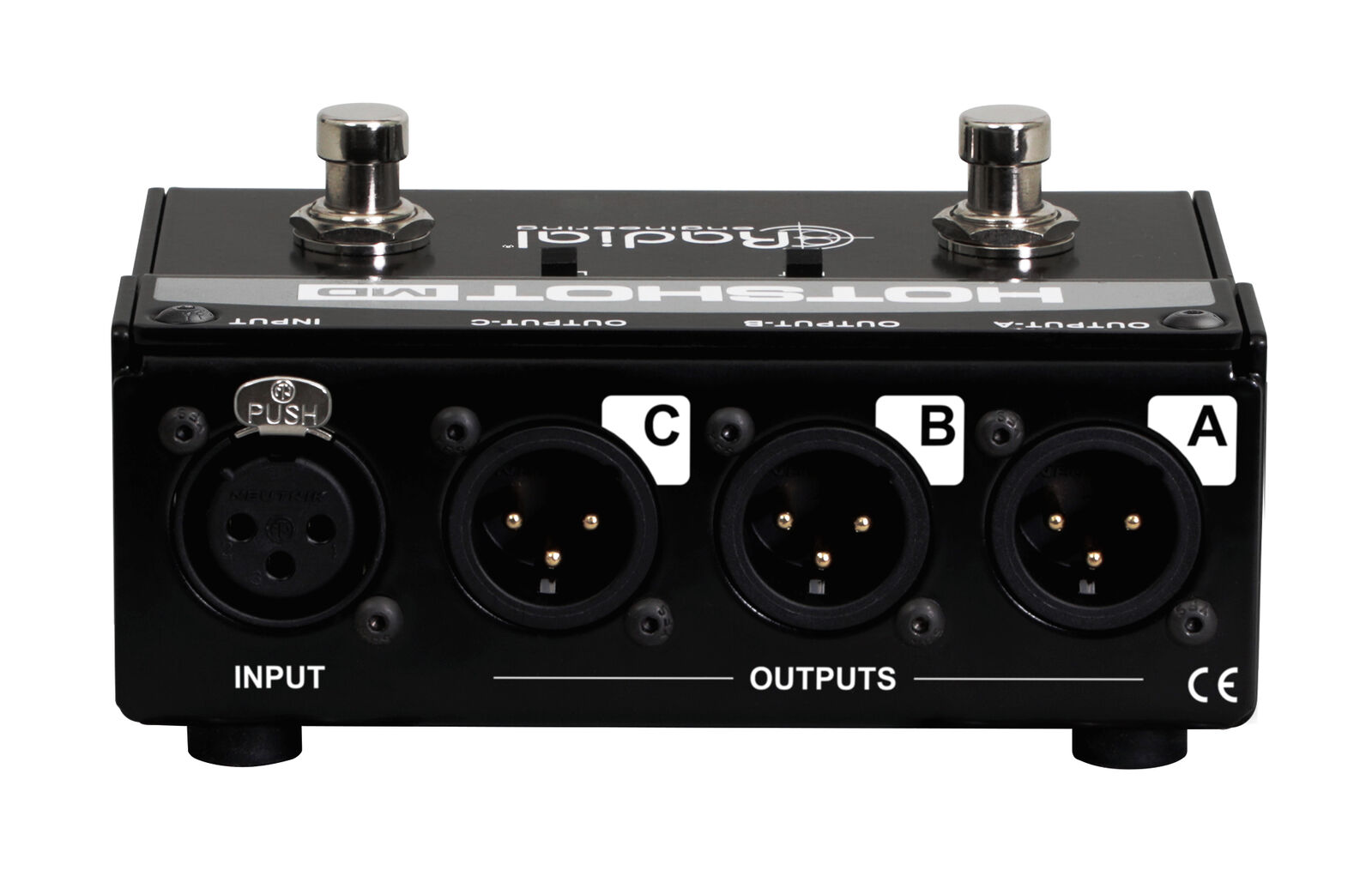

Input
Locking XLR input for connection to a dynamic microphone.

Output-A
XLR output for vocal channel to PA/Monitors.

Output-B
XLR output for connection to a second location.

Output-B Footswitch
Momentary footswitch reroutes microphone signal to Output-B - automatically mutes Output A.

Output-C
XLR output for connection to a third location.

Output-C Footswitch
Momentary footswitch reroutes microphone signal to Output-C - automatically mutes Output A.

Pressing B & C Together
Output B/C Momentary footswitches (when pressed together) routes signal to outputs B & C simultaneously - automatically mutes Output A.

Output-B Ground Lift
Switch disconnects pin-1 on Output-B.

Output-C Ground Lift
Switch disconnects pin-1 on Output-C.

Enclosure
14 Gauge Heavy Duty Steel Enclosure to withstand the rigors of concert touring.

SPECIFICATIONS

Audio circuit type: Passive, true-bypass
Frequency response: 20Hz - 20kHz, +0dB/-0.05dB
Total harmonic distortion: <0.00016% @ +4dBu, 20Hz - 20kHz
Intermodulation Distortion: <0.0014% 60Hz/7kHz, 4:1, +4dBu
Signal to Noise: >110dB re +4dBu, 22kHz BW
Total Harmonic Distortion + Noise: .<0.00037% @ +4dBu, 20Hz - 20kHz, 20kHz BW

Features
Input Connectors: 1 locking XLRF, 3 XLRM
Footswitches: Momentary
Ground Lift Switches: Disconnects Pin-1 on associated XLRM

General
Construction: 14-gauge Steel Chassis
Finish: Durable Powder Coat
Size (L x W x D): 3.70" x 4.63" x 2.00" (93.85mm x 117.50mm X 50.8mm)
Weight: 1.41lb (0.64kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3.00" (158.75mm x 107.95mm x 76.20mm)
Shipping weight: 1.59lb (0.72kg)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
