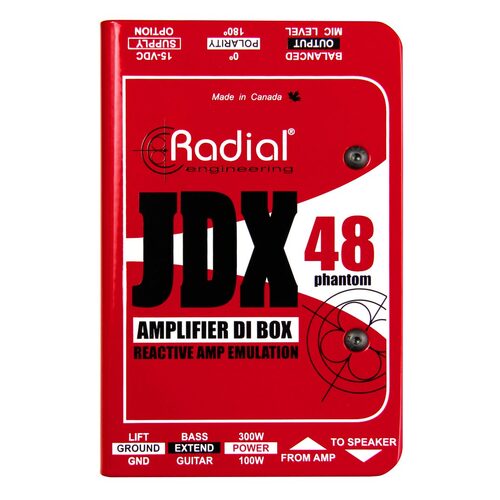

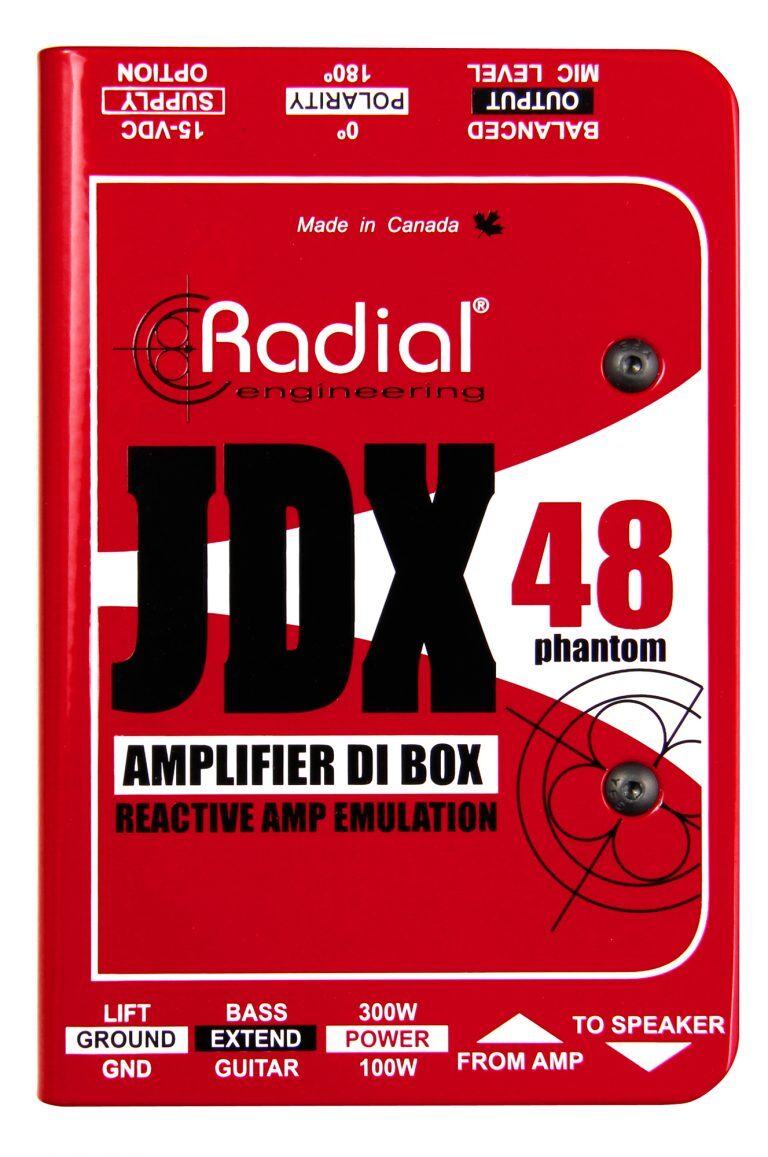

Radial JDX 48

The JDX 48™ is a direct box designed to capture the sound of an electric guitar amplifier by connecting between the amp head and the speaker cabinet, providing a balanced feed for the PA system that sounds like a well-placed microphone on your amp.

• Capture the sound of your amplifier through a direct box

• Delivers consistent tone across every performance

• Works equally well on electric guitar and bass

• Can be powered from 48V phantom or DC supply

Deliver your amp's tone through the PA
The JDX 48 makes it easy to get a consistent and natural amplifier tone through the PA system night after night, by taking a feed directly from your amplifier and employing Radial's popular JDX speaker emulation that produces an effect similar to placing a dynamic microphone in front of a 4x12 half stack cabinet. This gives you a more manageable sound onstage for gigs where feedback is an issue, or if mic'ing your amp isn't an option. For artists that employ in-ear monitoring systems, the JDX 48 provides consistent tone each night in the monitor mix for shorter setup times and a more comfortable audio feed for the artist.

Dual powering options
The JDX 48 can be powered using 48V phantom from the mixing console, for a cleaner setup on stage that eliminates the need to carry a power supply to the gig. However, for times when phantom power may not be available, the JDX 48 also ships with a separate DC power supply - giving you a redundant powering option so you never have to perform without your JDX.

FEATURES

Ground Lift
Innovative circuit lifts ground without cutting 48V phantom power

Bass Ext
Extends low frequency response to simulate 15" driver

No Slip Pad
Provides electrical & mechanical isolation and keeps the JDX from sliding around

300W Amp
Increases power handling for 300 Watt amps

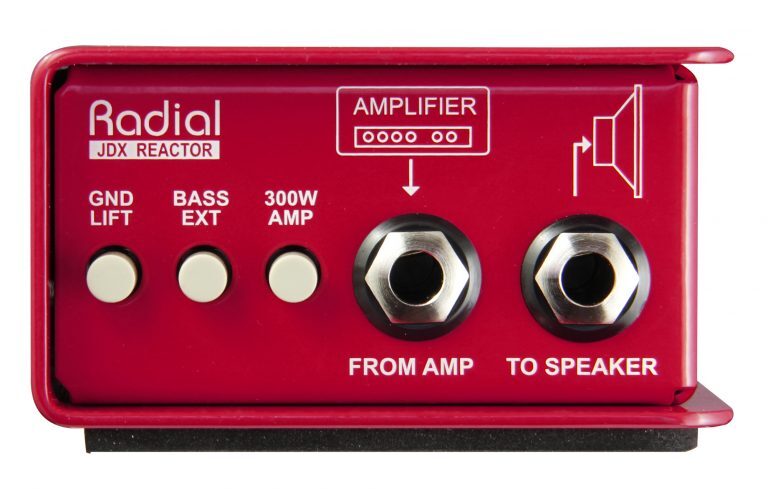

From Amp
1/4" jack connects from amp head to JDX

To Speaker
1/4" jack connects JDX to speaker

Bookend Design
Creates protective design around the connectors and switches for added durability.

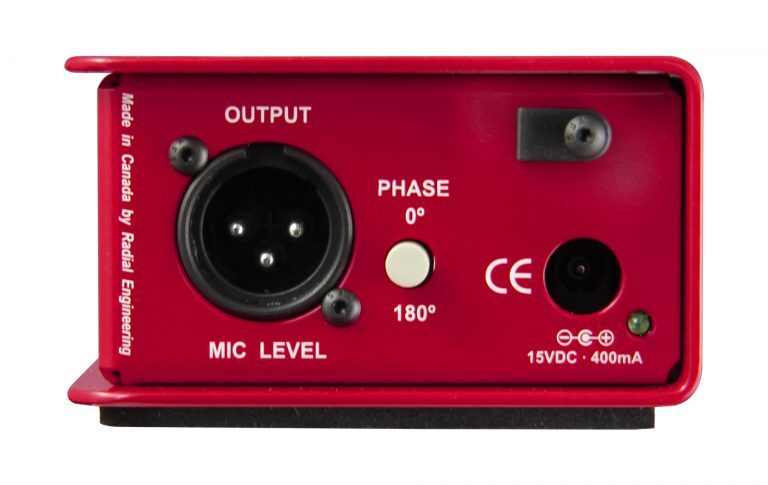

XLR Output
Balanced 600 Ohm mic level output, used to feed mixer or mic preamp.

180° Polarity Reverse
Toggles XLR pins-2 & 3 to help phase align sound sources.

Cable Clamp
Used to retain the power supply cable and eliminate accidental disconnect.

15 VDC PSU
Input for the included power supply. Use when 48V phantom is not available.

SPECIFICATIONS

Audio circuit type: Discrete Class-A - Transformer Isolated
Frequency response: Shaped for guitar use
Dynamic range: 114dB
Total harmonic distortion: <0.015% (+10dBu input @ 1KHz
Intermodulation Distortion: 0.03% (+10dBu input @ 1KHz)
Input Impedance: 15kΩ
Output Impedance: 2kΩ (XLR out)
Noise Floor: -100dBu below 0dBu
Maximum Input: 120W @ 8Ω
Maximum Output: +14dBu (clip level)
Switches: 180° polarity reverse, Ground lift, Bass Extend
Input Connectors: One 1/4" input
Output Connectors: One XLR output, one 1/4" output
Extras: Bass extension lowers frequency response for bass guitar, 300W amp increases power handling from 100W to 300W, Active speaker emulation band-pass filter
Construction: 14-gauge steel chassis and outer shell
Size (L x W x D): 6.25" x 5" x 2" (159 x 127 x 51mm)
Weight: 2.80lbs (1.28 kg)
Power: 48V phantom or +15VDC/400mA adapter Included
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
