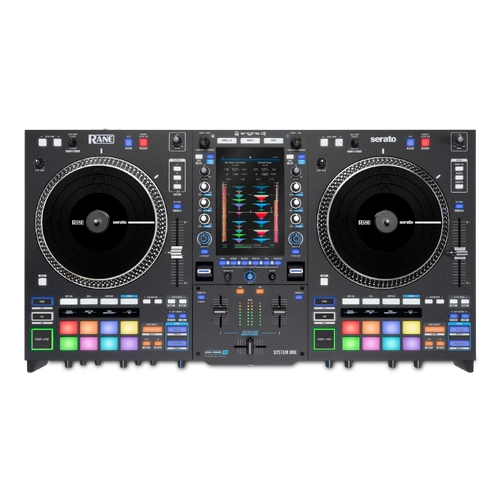

RANE System One

All-In-One Standalone Motorized DJ System

SYSTEM ONE redefines what’s possible for open format DJs, allowing for dynamic, laptop-free performances and an unmatched level of creative freedom—all in one system. 

One System for Every Source, Every Stage, Every Set
RANE SYSTEM ONE is the world’s first all-in-one standalone DJ system with motorized platters, fusing the legacy feel of turntables with the freedom of modern, laptop-free standalone DJ technology.

The first RANE product with Engine DJ on board, SYSTEM ONE allows open format DJs to experience the trusted performance of RANE hardware while seamlessly mixing between standalone media, music streaming services, and software sources like Serato DJ Pro (Algoriddim djay support coming in early 2026.) With loads of FX options and multiple ways to DJ with Stems, this all-in-one system gives you the power to unlock new levels of creativity and elevate every performance.

The Freedom and
Feel DJs Demand 

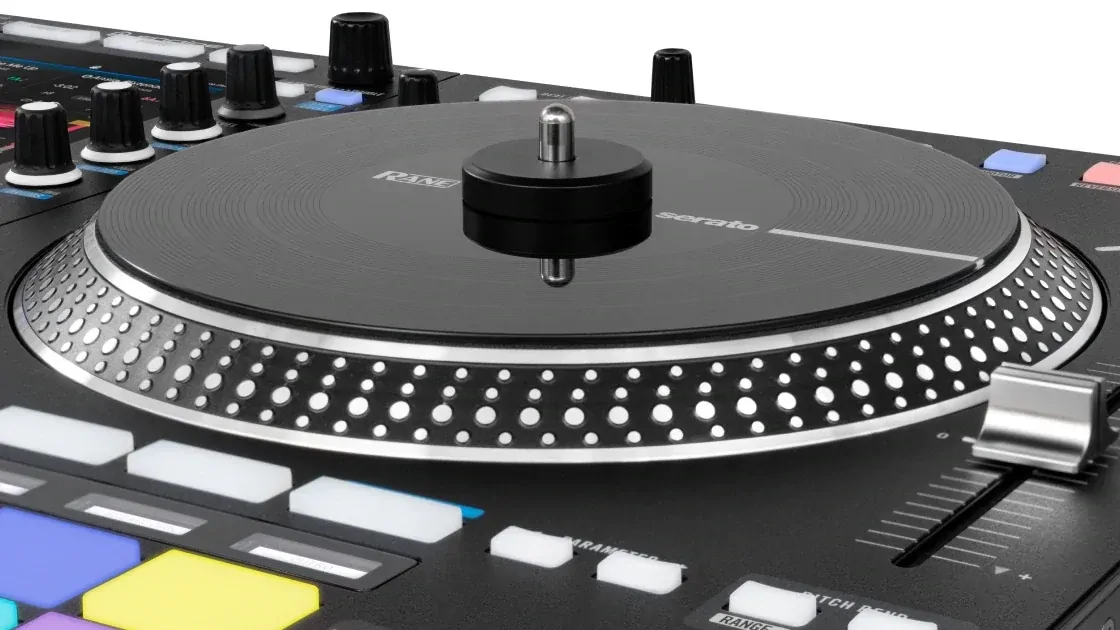

SYSTEM ONE is designed to streamline your entire workflow. The embedded Engine DJ operating system allows you to deliver dynamic performances without a laptop. This technology, combined with the 7.2” aluminum motorized platters, empowers open format DJs with an unmatched level of freedom while maintaining the legacy feel of turntables.  

Complete Performance Flexibility
OmniSource system architecture enables seamless mixing between tracks saved on USB sticks, SD cards, or the internal hard drive (sold separately), streaming music services, and software sources like Serato DJ Pro (Algoriddim djay support coming in early 2026), enabling a fluid and flexible performance workflow.

Stems for Greater Creative Control
Execute blends and remixes on the fly with standalone Stems, Stem FX, Instant Acapella and Instrumental buttons, Stems pad mode, and Stem Level EQ control. Render tracks for Stems ahead of time with Engine DJ desktop or directly on the SYSTEM ONE (on-board Stems rendering coming early 2026). 

Seamless FX Integration 
SYSTEM ONE features over 25 onboard Main FX across six assignable slots with aluminum toggle activation, plus 5 knob-controlled Sweep FX, 10 on-screen Touch FX, and 4 fader-activated Fader FX, giving you a robust arsenal of creative tools to execute incredible routines and sets. Along with internal effects, you also have the option to tap into Serato's software FX collection for even more flexibility.  

Convenient Compatibility
with Engine DJ
SYSTEM ONE is the first RANE standalone DJ system, designed to make the transition to standalone seamless. Engine DJ desktop software enables the full import of Serato DJ libraries, including crates, hot cues, loops, BPM, key, and other metadata, allowing you to transfer your existing collection to a USB drive, SD card, or the internal hard drive (sold separately) and perform on SYSTEM ONE without a laptop.

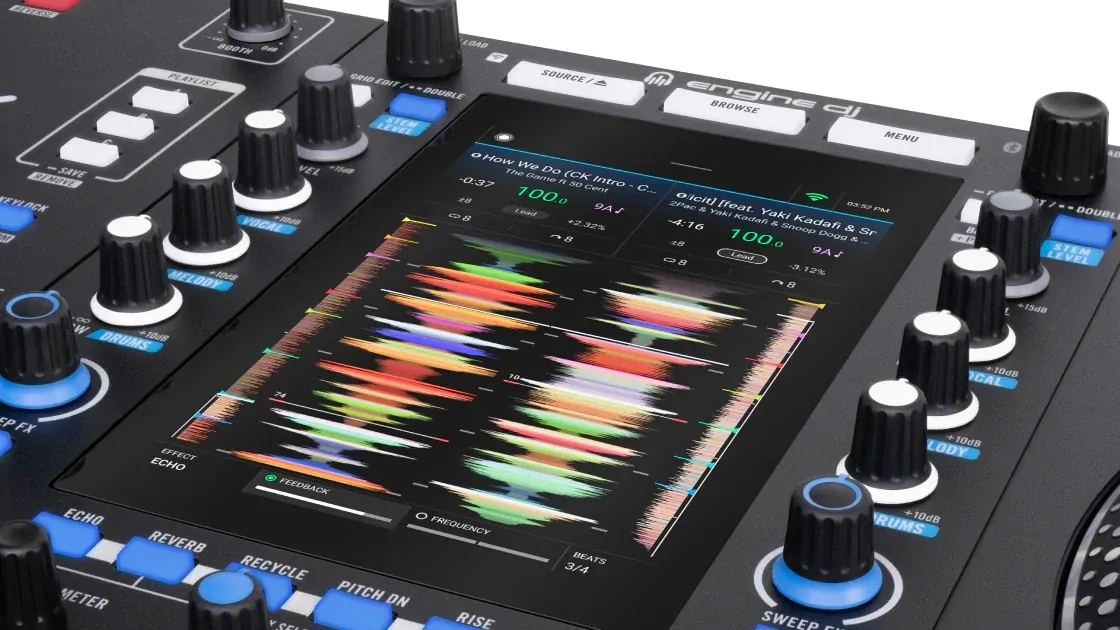

High-Def Touchscreen with
Instant Visual Feedback
Browse tracks, monitor deck status, visually cue and mix with moving RGB waveforms, and control FX and lighting, all from a single, streamlined interface. With customizable view options, waveforms can be displayed vertically or horizontally, with or without the track list, and with the option to enable Day Mode, allowing you to customize the layout to match your ideal DJ workflow.

Immediate Access to Every Track
With Playlist Banks, you can save and instantly access your favorite Engine DJ or streaming services playlists or Serato DJ crates. Three dedicated buttons provide fast recall, keeping go-to tracks, crates, and playlists just a tap away.

Performance Pads with
OLED Displays
The 8 Performance Pads on each deck feature dynamic RGB lighting that reflects the active pad mode with custom colors for Hot Cues and Loops. OLED displays above the pads provide clear visual feedback for all pad modes, allowing you to instantly see Hot Cue and Sample names as well as different Stem elements and Roll beat divisions.

Integrated SoundSwitch
Lighting Control 
Wirelessly connect to Philips Hue and Nanoleaf smart lighting for dynamic automated light shows at home, perfect for livestreams and content creation. The addition of a SoundSwitch Micro DMX interface or Control One allows the SYSTEM ONE to control DMX lighting fixtures with access to beat-synced Auto Loops and on-screen override controls. 

Pro-Level Sound
and Connections

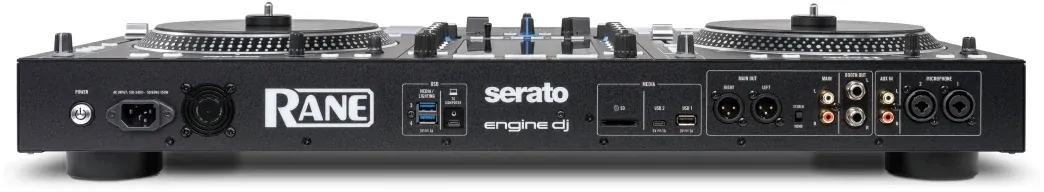

SYSTEM ONE features signature RANE high-fidelity audio with plenty of input and output options, ensuring that you always sound your best in every setting. Audio output options include XLR Main, RCA Main, ¼” Booth, and Bluetooth while input options include a selectable Bluetooth/RCA Auxiliary input with front volume knob, and two XLR combo jack microphone inputs with EQ, Echo and Reverb FX, Talkover, and Anti-Feedback. An on-screen 10 band EQ lets you further craft your own sound for both the Main and Booth outputs.

FEATURES

• High-torque motorized 7.2" platters

• Stems pad mode with Stem FX

• 3 Playlist Banks for quick access to favourite playlists and crates

• Built-in Wi-Fi for access to music streaming platforms, such as Apple Music, Amazon Music Unlimited, TIDAL, Beatport, Beatsource, SoundCloud Go+, and Dropbox

• Stem Level EQ mode

• OmniSource system architecture for seamless mixing between local media, streaming, cloud services, and computer-based software sources

• 7" HD touch vertical display with RGB waveforms

• 4 fader triggered Fader FX

• MAG FOUR crossfader with front panel tension adjust, reversal switch, contour knob, and on-screen calibration and cut in settings

• 25+ internal Main FX with paddle activation

• PRECISION FEEL channel faders with tension adjust, reversal switches, and contour knob

• 10 screen-controlled Touch FX

• Bluetooth audio output with on-screen volume control

• 5 knob-controlled Sweep FX

• Responsive RGB performance pads with OLED displays

• Instant Acapella and Instrumental buttons

• Locking IEC power cable

• USB-C computer connection with retention screw

• Media inputs: (3) USB A, USB-C, SD Card, and internal hard drive slot (hard drive not included)

• XLR and RCA Main outputs and 1/4" Booth Outputs with 10-band software EQ

• 2 XLR combo jack microphone inputs w/ EQ, Echo and Reverb FX, Duck and Anti-Feedback

• Standalone Embedded Sampler with dedicated pad mode and front panel volume control knob

• Bluetooth/RCA AUX input with dedicated volume knob on front panel

SPECIFICATIONS

Digital Audio
Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz  
Digital Signal Processing: 32-bit, Floating Point, Double Precision  

Audio Outputs

Main Output (XLR, RCA stereo pair) 
DAC: 24-bit
Dynamic Range: 117 dB  
Output Type: Balanced XLR    
Max Output Level (XLR): 8 Vrms 
Max Output Level (RCA):  4 Vrms
Frequency Response: 20 Hz–20 kHz: +0, -1 dB  
THD+N: 0.002% @ 1 kHz, 4 Vrms  
Channel Separation: > 80 dB 
Input Gain Trim Range: Off to +12 dB  
Output Level Range: Off to 0 dB  

Booth Output (1/4” [6.35 mm] TRS)  
DAC: 24-bit 
Dynamic Range: 117 dB 
Output Type: Balanced TRS 
Max Output Level: 8 Vrms  
Frequency Response: 20 Hz – 20 kHz: +0, -1 dB  
THD+N: 0.002% @ 1 kHz, 4 Vrms  
Channel Separation: > 80 dB 
Input Gain Trim Range: Off to +12 dB  
Output Level Range: Off to 0 dB  

Headphone Output (1/4” [6.35 mm] and 1/8” 
[3.5 mm] TRS)  
DAC: 24-bit 
Dynamic Range: 117 dB 
Output Type: Stereo TRS (1/8” and 1/4” jacks)  
Cue Features: Cue / Split Cue  
Max Output Level (No Load): 4 Vrms  
Max Power Output @ 50 Ω: 150 mW  
Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load): 0.002% 
THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08%  
Channel Separation: > 80 dB
Level Control Range: Off to 0 dB  

Inputs (Combo XLR/1/4”
[6.35 mm] TRS) 
ADC: 24-bit, 115 dB DR  
Input Type: Balanced XLR/TRS combo  
Max Input Level: 110 mV  
Analog Gain: 25 dB  
Max System Gain: 60 dB  
Frequency Response @ 20 Hz: -2.5 dB  
Frequency Response @ 20 kHz: -5 dB  
THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)  
DR (A-weighted), Gain = 25 dB: 102 dB  
DR (A-weighted), Gain = 60 dB: 72 dB 
IRN (A-weighted), Gain = 60 dB: -132 dB  
IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB  

Auxiliary Input (RCA stereo pair)
ADC: 24-bit, 115 dB DR (A-weighted)  
Input Type: Unbalanced RCA
Max Input Level: 4 Vrms  
Frequency Response:  20 Hz –20 kHz: +0, -1 dB 
THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz) 
Gain Range: Off to +12 dB
DR (A-weighted), Unity Gain: 108 dB
Crosstalk:  ≤ -90 dB 

Performance Pads
Pads: 16 total, on/off multi-color back-lit (8 per deck)  

Faders
Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse 
Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse

Displays
Main Display: 7"/178 mm (diagonal) full-color LED-backlit display with touch interface  
Pad Displays: (8) 128 x 32 monochrome OLEDs 

CPU
Processor: 8-core ARM®
RAM:  4 GB 

Wi-Fi & Bluetooth  
Wi-Fi:  

• 2.4GHz/5GHz  

• 802.11a/b/g/n/ac  

• Wi-Fi 5  

Bluetooth: v5.4 

Supported Media
File Systems:

• exFAT (recommended)  

• FAT32

Playable Formats:

• AAC/M4A  

• AIF/AIFF (44.1–192 kHz, 16–32-bit)  

• ALAC  

• FLAC  

• MP3 (32–320 kbps)  

• MP4  

• Ogg Vorbis  

• WAV (44.1–192 kHz, 16–32-bit)

• Streaming Services

Onboard Streaming Services (subscription required):

• Amazon Music Unlimited  

• Apple Music  

• Beatport  

• Beatsource  

• SoundCloud Go+  

• TIDAL 

Lighting
Onboard Smart Lighting:

• Philips Hue  

• Nanoleaf  

Supported DMX:

• SoundSwitch DMX Micro  

• SoundSwitch Control One  

Power (Internal with locking IEC)
Input Type: Locking IEC 
Input Voltage: 100–240 VAC 
Frequency: 50/60 Hz
Power Consumption: 150 W

Dimensions (W x D x H)
Inches: 29.00 x 15.87 x 5.70  
Centimeters: 73.66 x 40.30 x 14.47  
Weight:: 29.4 lbs (13.33 kg)

Inputs
Microphones:

• Mic 1: XLR + 1/4” Combo Jack

• Mic 2: XLR + 1/4” Combo Jack

Aux: Stereo Pair (RCA)

Outputs
Main: (2) XLR, Stereo Pair (RCA)
Booth: (2) 1/4” TRS Jacks
Headphones:

• 1/4” Stereo Jack

• 3.5-mm Stereo Mini-Jack

Media Inputs
USB:

• USB 1: Type-A, USB 2.0 High Speed

• USB 2: Type-C, USB 3.0 SuperSpeed

• USB 3: Type-A, USB 3.0 SuperSpeed

• USB 4: Type-A, USB 3.0 SuperSpeed

• USB to Computer: Type-C, USB 3.0 SuperSpeed

SD Media: SD, SDHC, SDXC
Internal HD: SATA 3.0
