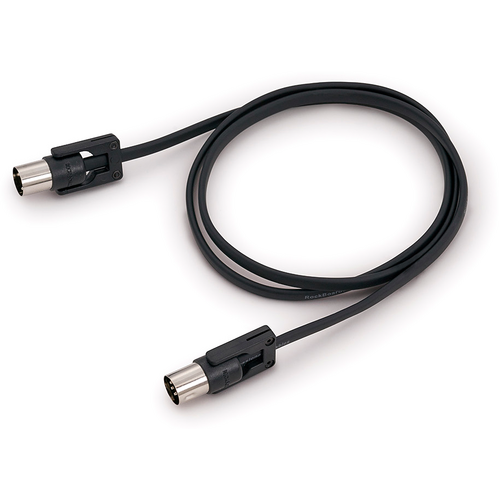

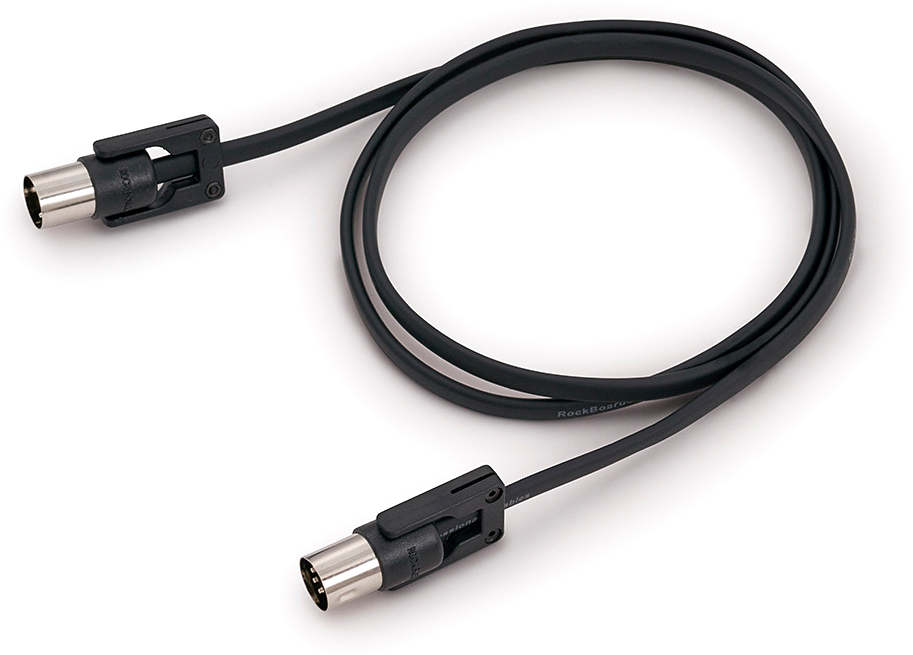

RockBoard FlaX Plug MIDI Cable 100cm

The RockBoard® FlaX Plug MIDI Cables, with their compact omni-directional design, allowing maximum freedom in adjusting the plug orientation are a logical follow-up on the RockBoard® Flat MIDI Cable design. Almost any angle is easily adjustable, with the plug securely fixed in place by two screws, regardless of the direction of the plugs: straight, angled and everything in between. This makes it very easy to adapt to various types of equipment. The flat, rectangular conductor cable effectively reduces twisting and prevents damage to the cable core. The 5-pin pinout makes the realization of almost any MIDI application possible

SPECIFICATIONS

• Flat MIDI cable with omni-directional, lockable compact plugs

• Plug orientation alterable from straight to angled to the left or right

• Rrientation lockable via 1.5 mm hex key wrench (not included)

• Flat rectangular cable, prevents cable breakage and cable jams

• Compact DIN 5-pin plugs

• 5 x flexible oxygen-free copper conductors 5 x 7 x 0.12 mm

• Suitable for Clock/SYNC Capabilities & Phantom Power

• Max. rated current 1A

• Outer insulation: PVC (Polyvinylchloride)

• Operating temperature: -20° C to +60° C (-4° F to 140° F)

• Dimensions plug (L x W x H): 33 x 20 x 15 mm (1 19/64" x 25/32" x 19/32")

• Dimensions cable (W x H): 6.5 x 3.5 mm (1/4” x 9/64”)

• Length 100 cm (39 3/8")

• Black
