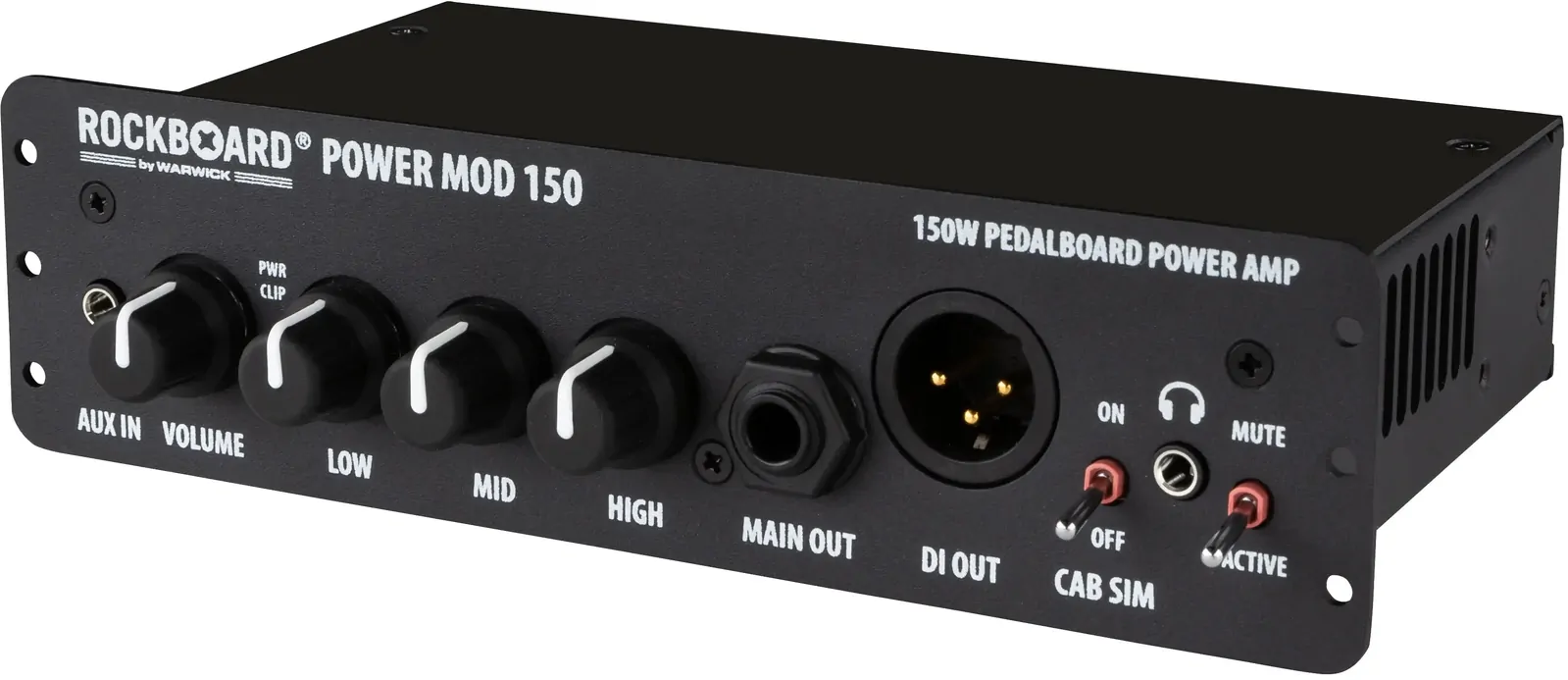

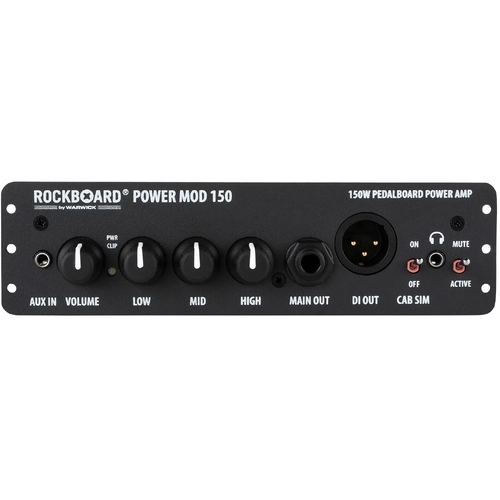

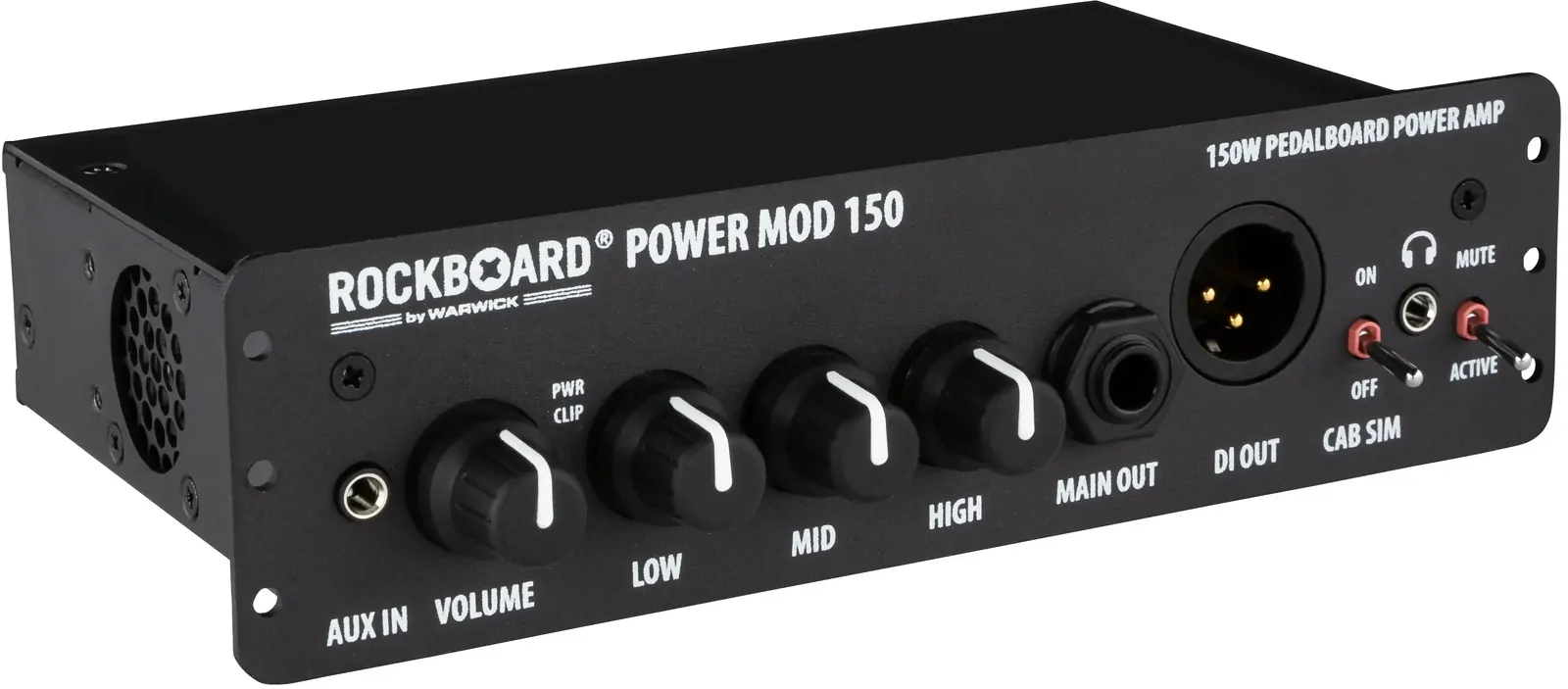

RockBoard Power MOD 150

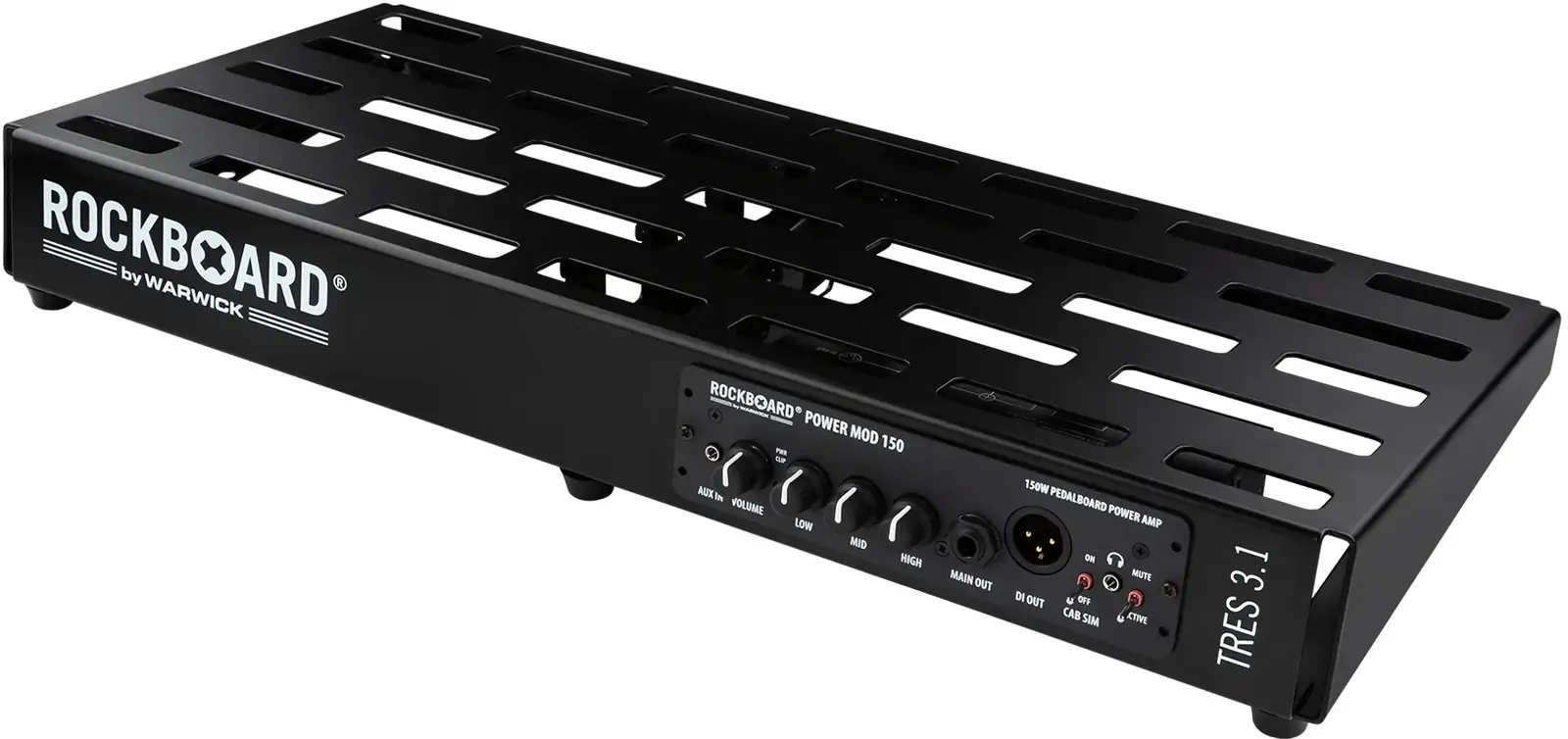

The PowerMOD 75 & 150 are specially designed Class D transistor amplifiers that can drive speaker cabinets directly from your pedalboard without an additional amplifier. The PowerMODs feature a 3-band EQ, switchable cabinet simulation for full-range speakers, and a mute function. The PowerMODs can be mounted directly into the MOD slot (available on all RockBoard® pedalboards except the DUO series) or onto pedalboards from other manufacturers, allowing for space-saving integration into any system

The combination of the compact, lightweight design, the powerful sound and the low-noise operation makes the RockBoard® PowerMODs an affordable and reliable pedalboard power amplifier for beginners, discerning musicians and experienced professionals.

SPECIFICATIONS

• Compact amplifier for pedalboards

• Can be directly mounted on into all RockBoard pedalboards equipped with MOD slots or on third-party pedalboards

• Solid-state design, class D amplifier circuitry

• Power (@1% THD): 118 W at 4 Ohm / 70 W at 8 Ohm

• 3-band EQ

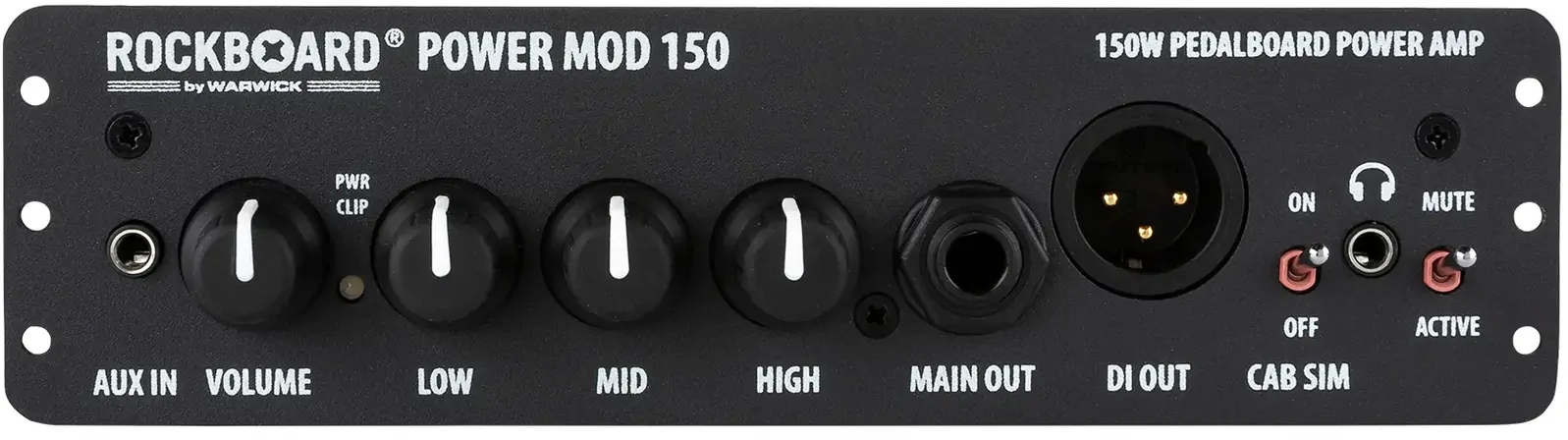

• Front panel controls for Volume, Low, Mid, High

• Front-mounted Cab-Sim switch

• Front-mounted Mute switch

• Front-mounted 6.35 mm (1/4") speaker output

• Front-mounted 3.5 mm (1/8") headphone output

• Front-mounted 3.5 mm (1/8") AUX IN input for external audio signals

• Front-mounted balanced XLR DI output

• Rear-mounted connection for included power supply adapter

• Rear-mounted instrument input

• Including 220 - 240 VAC power adapter, output 36 VDC, 4.16 A

• Dimensions (L x W x H) 175 x 116 x 47 mm / 6.88" x 4.56" x 1.85"

• Weight 1.2 kg / 2.65 lbs (including power supply)
