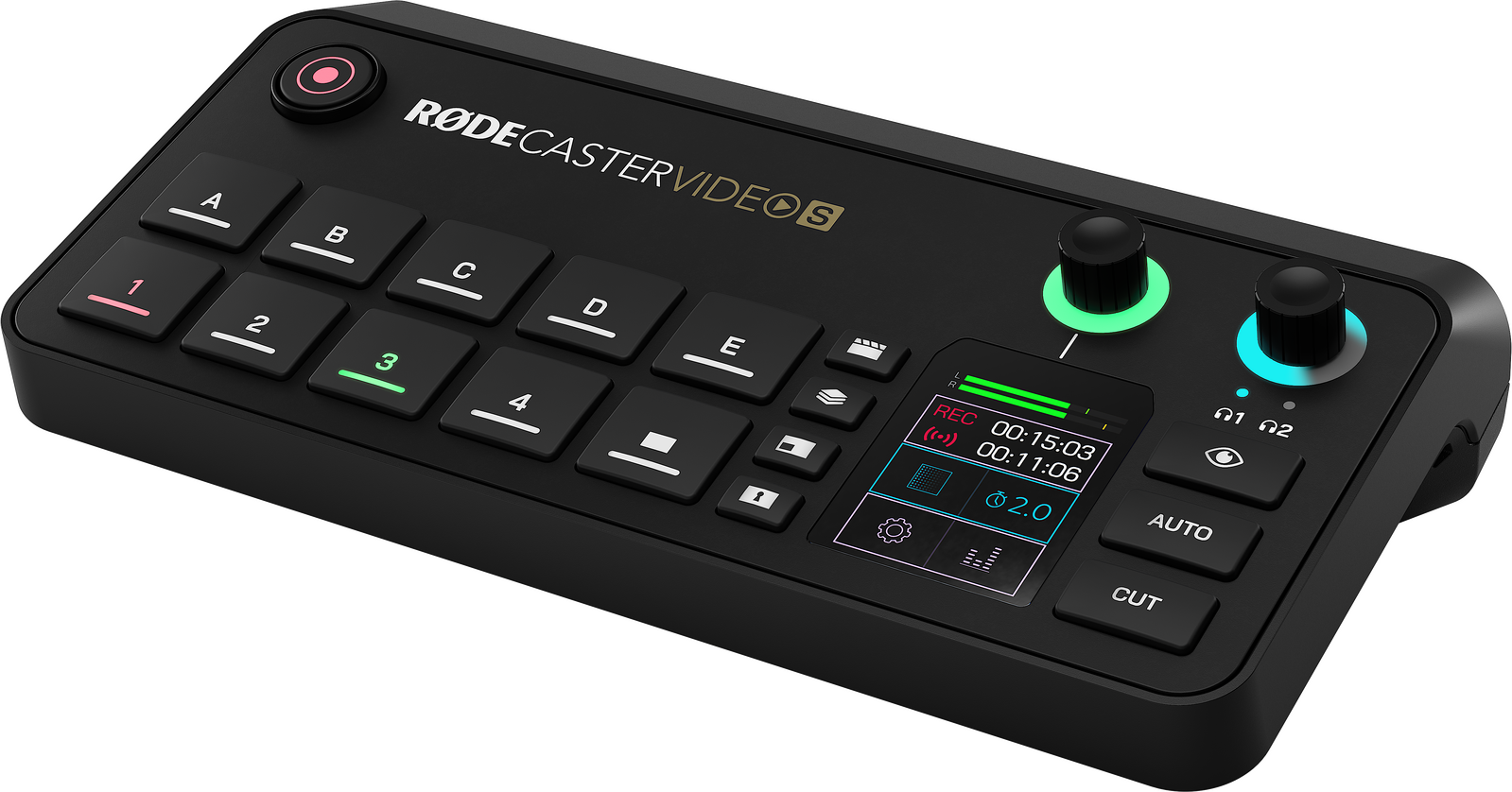

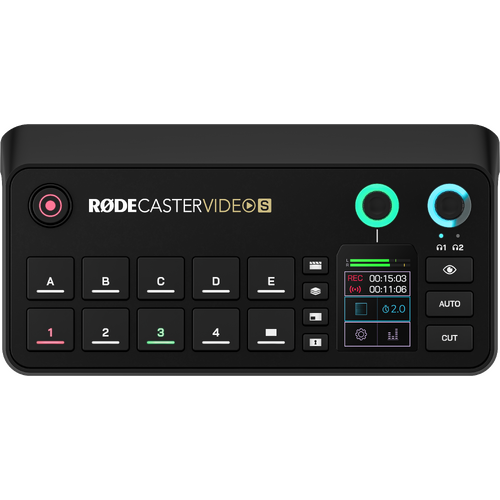

RODE RodeCaster Video S

The RØDECaster Video S from RØDE is a revolutionary all-in-one console for video and audio production, giving you intuitive control over every aspect of your content. A streamlined version of the RØDECaster Video, it combines powerful video switching, recording, and production tools with a fully integrated professional audio mixer, all in a compact, desktop-friendly package. From studio shoots and video podcasts to interviews and live streams, the RØDECaster Video S delivers seamless, broadcast-quality results with total ease.

FEATURES

• Switch between up to four video sources and five fully customisable scenes

• High-performance octa-core CPU video and audio processor

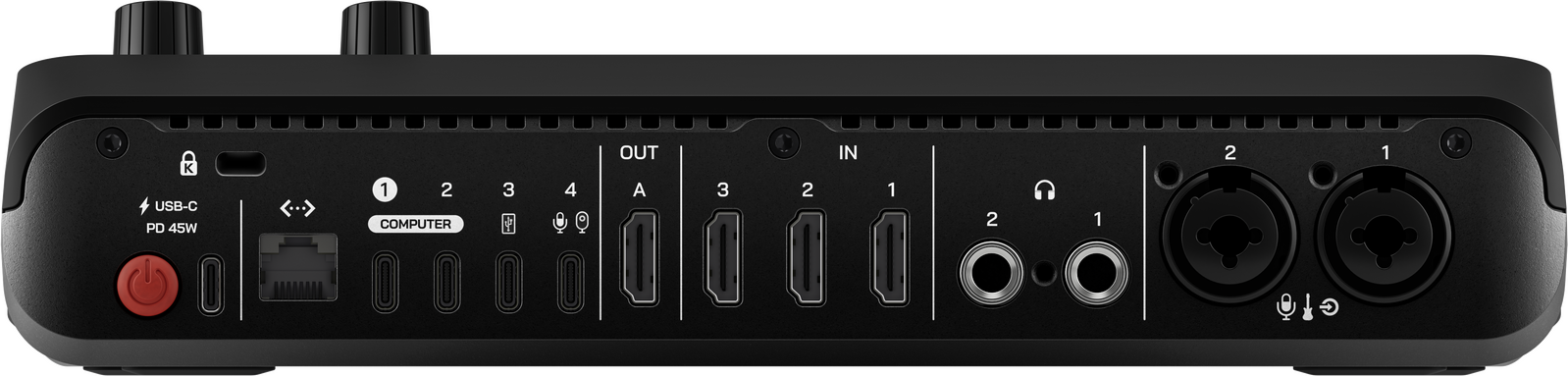

• Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and RØDE USB audio devices

• Two studio-grade Neutrik® combo jacks with ultra-low noise, high- gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source

• Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects

• Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel

• Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices

• 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment

• Connect an external SSD via USB to record video or output directly to a computer via UVC

• Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDECaster App

• Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs

• Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices

• Dual internal wireless receivers for connecting RØDE Series IV wireless microphones

• Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated

• (ISO) recording for complete post-editing flexibility

• Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia

SPECIFICATIONS

Video Specifications
Video Input Feeds: 4 simultaneous
HDMI Inputs: 3 type-A (HDMI 1.4b)
USB (UVC) Inputs: 1 multi-function USB-C for UVC video
HDMI Outputs: 1 configurable – Preview, Program, Multiview, Inputs 1 - 4
Video Input Frame Rates:

• 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HDMI only) 1920x1080i: 25, 29.97, 30

Video Output Frame Rates:

• 1920x1080p: 24, 25, 30, 50, 60

Video Streaming Standards:

• 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
Format and Frame Rate Converters: On all HDMI and USB inputs
NDI Protocols: Single TCP, Multicast
NDI Formats: Hx2, Hx3
NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-bit
NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48kHz
NDI Interfaces: Wired Ethernet

Switching Specifications
Total Number of Layers: 9 simultaneous in Preview and Program
Downstream Keyers: 2 (overlays and logo)
Chroma Keyers (Green and Blue): 2
Luma Keyer: 1
Media Players: 2 simultaneous
Transitions: SMPTE wipes, dip and fade
True Preview: Display complete scenes and overlays simultaneously in preview and program
Generated Borders: All scenes
Multiview:

• Program and preview

• Live inputs, scene and media thumbnails

• Audio mixer and channel status

• Recording, network and storage status

• Run time, date and time information

Media Player:

• 24GB on-board storage

• Videos: MP4

• Images: PNG, JPG

• Audio: WAV

Bluetooth: 5.3 (for stereo audio input or phone calls)

Audio Specifications
Analog Audio Inputs: 2 combo jacks (microphone, line or instrument) with Revolution Preamps™
Wireless Audio Inputs: 2 Series IV wireless receivers
Digital Audio Inputs:

• USB 1: 2-in/2-out or multichannel (20-in) output

• USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus

• USB 2: 2-in/2-out with MFi support

• USB 4: compatible with RØDE USB microphones and RØDECaster Pro II and Duo

Analog Audio Outputs: 2 headphone outputs (1/4-inch)
Audio Processing:

• APHEX® VoxLab™ Processing: per channel

• Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™

Preamps:

• Frequency range: 20Hz – 20kHz

• Input gain: up to 76dB Input

• Equivalent Input Noise: -131.5dBV (A-weighted)

Streaming Sample Rate / Bit Depth: 48kHz / 32-bit
Recording Sample Rate / Bit Depth: 48kHz / 24-bit
Audio Mixer:

• 17 possible audio sources (9 stereo channels simultaneously): Combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2 and 3 (each can be split for two mono), Bluetooth, 3 USB audio interfaces (computers), 1 hosting USB audio device (USB microphone)

• 11 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network

• Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs.

Streaming, Recording and Software Specifications
Direct Streaming: Real Time Messaging Protocol (RTMP/RTMPS) over Ethernet or Wi-Fi
Supported Platforms:

• Youtube Live

• Twitch Live

• Facebook Live

• Twitter/X Live

• Custom server

Network: Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-the-air updates
RØDECaster App Companion Software:

• Scene builder: Advanced construction of scenes and remote control of device

• Auto-switching: Configuration of automatic switching based on audio input

• Audio mixer: Advanced configuration and control of audio sources, processing and routing

• Stream profiles: Configuration for streaming settings and profiles

• Device configuration: Advanced settings and customisations

Storage Media: External USB mass storage device (exFAT format) for recordings
Video Recording: Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
Isolated (ISO) Video Recording: 4 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
Audio Recording: Stereo mix WAV audio file
Multitrack Audio Recording: 9 independent stereo WAV audio files
Compatible Operating Systems:

• macOS 11 or later

• Windows 10 Version 1803 or later, Windows 11

Power and Mechanical Specifications
Power Supply Requirements: USB-C PD 45W, 20V 2.25A
Weight (grams): 875
Length: 253.5
Width: 128.4
Height: 60.2

What's In The Box:

• RØDECaster Video

• Power Supply

• SuperSpeed USB-C to USB-C Cable
