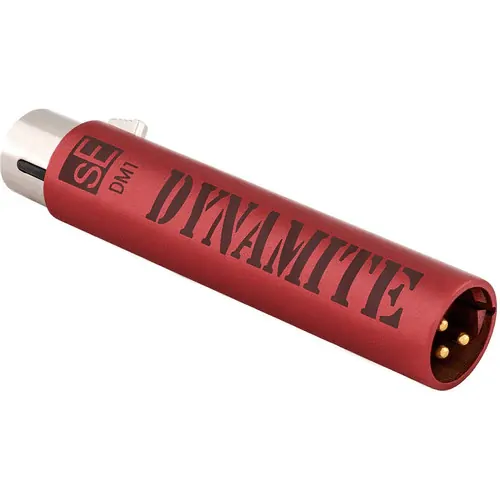

sE Electronics DM1 Dynamite

Explosive level for all your passive mics

An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

FEATURES

• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration

• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity

• Always a consistent +28dB regardless of the connected load to enable mics with a lower output

• Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones

• All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles

• Gold plated XLR connector for loss-free reliable signal connection

• Perfect for podcasting, recording, or live sound

Recommended Use: Dynamic & passive ribbon microphones.

The red DM1 Dynamite Active In-Line Microphone Preamplifier from sE Electronics is an active preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level through the preamplifier without adding noise or coloration.

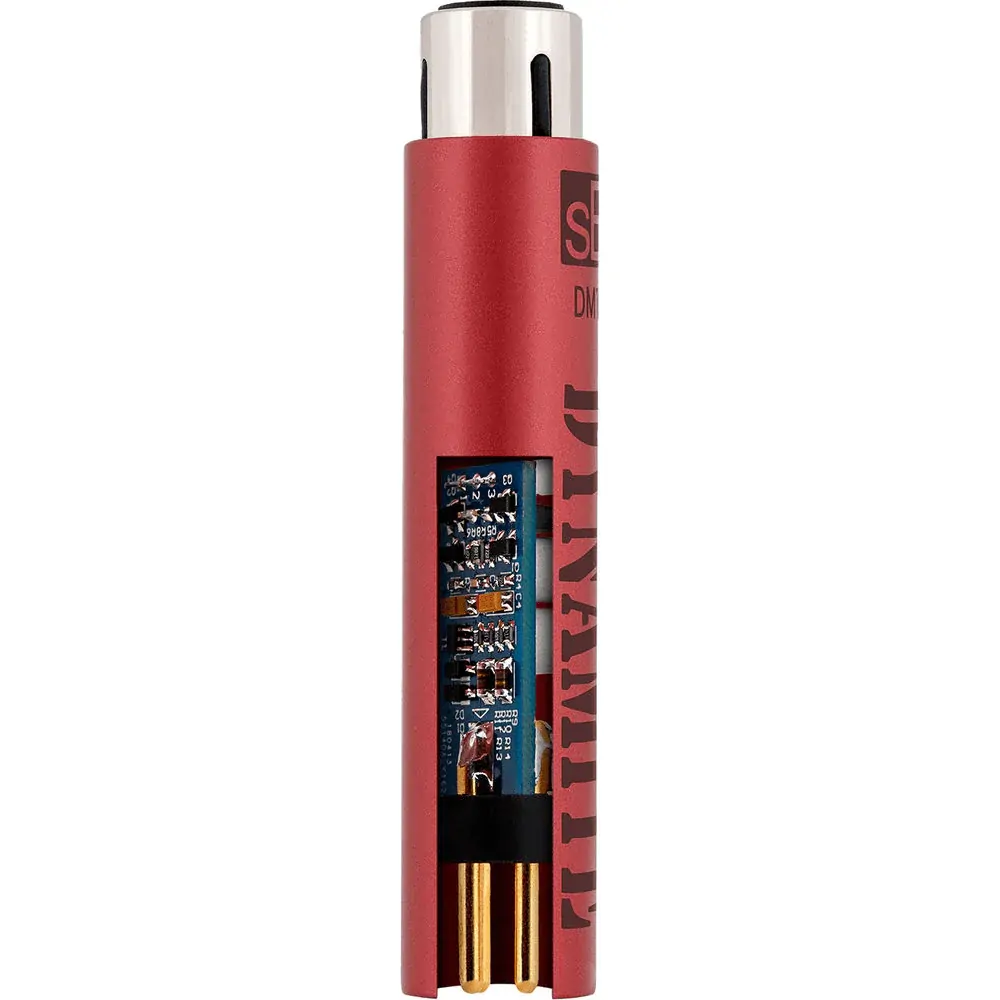

With a sophisticated Class-A design and high-grade FETs, the DM1 has a low self noise. It is built with a dedicated output buffer amplifier allowing it to drive long cable runs and reduce RF interference, buzz, and hum. Additionally, the DM1 Dynamite Active In-Line Microphone Preamplifier offers a roadworthy, slim, all-metal design, ensuring reliable operation for onstage applications in difficult environments. The unit features standard 3-pin XLR connectors and requires 48V phantom power for operation.

SPECIFICATIONS

Power
Electrical Impedance: 135 Ohms
Recommended Load Impedance: >1K Ohms
Connectivity: 3-pin male/female XLR connector
Powering: 48V Phantom Power (P48 according to IEC 61938)

Sound
Frequency range: 10 Hz - 120 kHz (-0.3 dB)
Gain: 28 dB
Current consumption: 3.0 mA
Max output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 µV (a-weighted)
Input impedance: 10k Ohms

Dimensions
Preamp diameter: 19 mm (0.75 in.)
Preamp length: 96 mm (3.78 in.)
Preamp weight: 96 mm (3.78 in.)

What's in the box:

• DM1

• sE Logo Sticker

• User manual with warranty card
