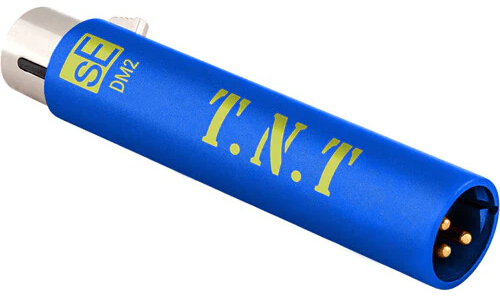

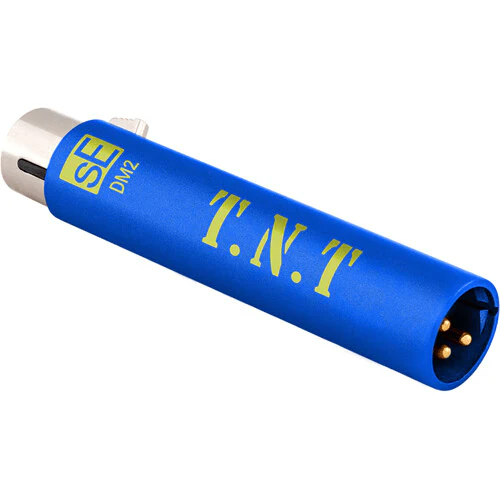

sE Electronics DM2 TNT
Active Inline Microphone Preamplifier
In stock at warehouse.
Allow additional days for shipping or to collect in-store.
Important Warehouse Shipping Information
Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.
Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.
If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.
More infoCalculate Shipping
Free Shipping - $0.00
Shipping will be booked with the relevant carrier based on your location.
Explosive level for all your passive mics
The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.
FEATURES
-
Switchable, clean and consistent gain from moderate +15dB to explosive +30dB
-
Eight load settings ranging from 50 ohms to stunningly high 10 mega ohms to precisely match any mic
-
Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
-
Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
-
All-metal housing and premium finish ensures the DM2 can handle demanding on-tour or recording/broadcast studio lifestyles
-
Gold plated XLR connector for loss-free reliable signal connection
Recommended Use: Dynamic & passive ribbon microphones
SPECIFICATIONS
Power
Electrical Impedance: 135 Ohms
Recommended Load Impedance: >1K Ohms
Connectivity: 3-pin male/female XLR connector
Powering: 48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range: 10 Hz - 120 kHz (-0.3 dB)
Gain: 15 dB / 30 dB
Current consumption: 3.1 mA
Max output level (0.5% THD): 9.5 dBV (3.0 V)
Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 dB
Dimensions
Preamp diameter: 19 mm (0.75 in.)
Preamp length: 96 mm (3.78 in.)
Preamp weight: 80 g (2.82 oz.)
What's in the box:
-
DM2
-
sE Logo Sticker
-
User manual with warranty card
