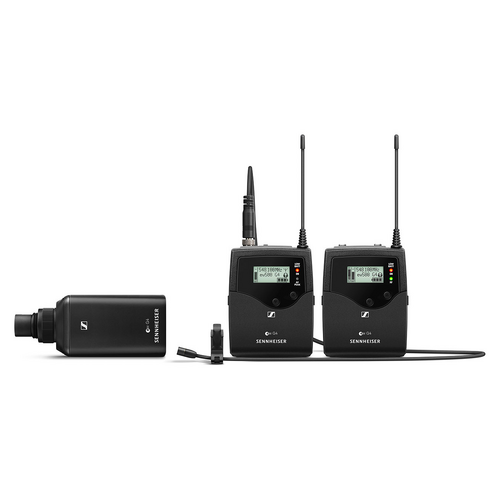

Sennheiser EW 500 FILM G4-GBW

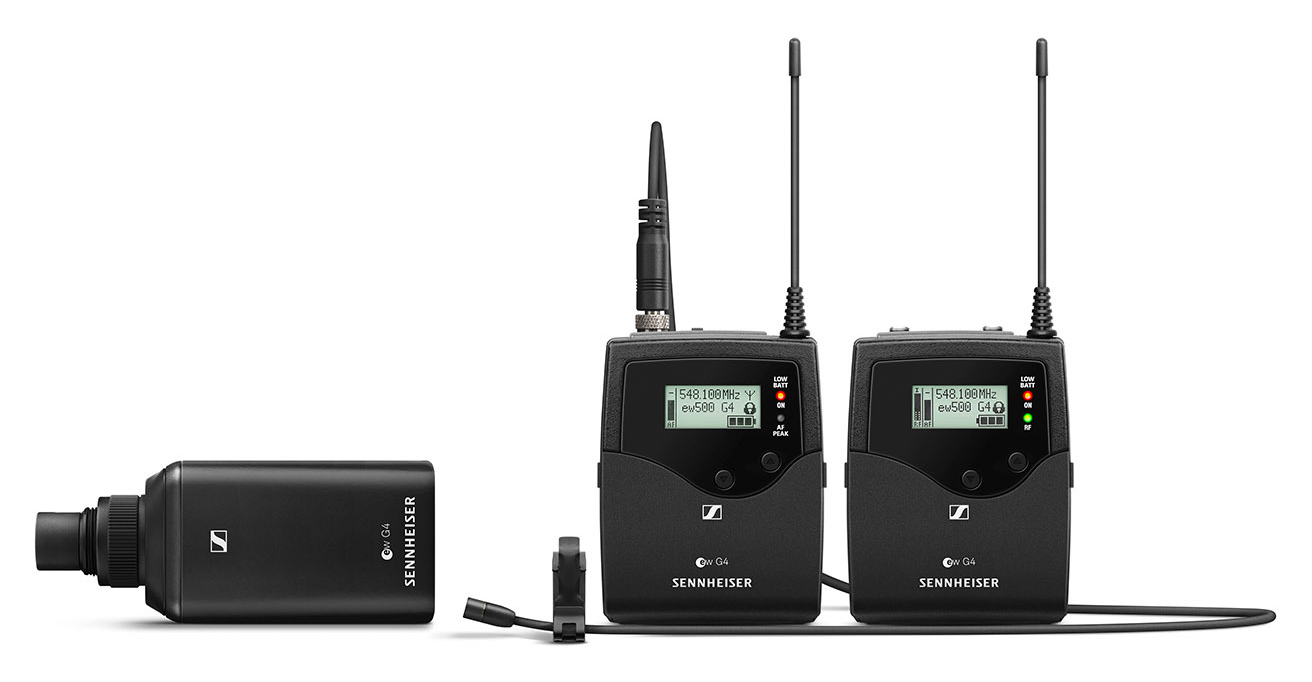

Rugged, all-in-one wireless system for professional interviews and recording. Set consisting of 1 SK 500 G4 bodypack, 1 MKE 2 lavalier microphone, SKP 500 G4 plug-on with phantom power, EK 500 G4 portable camera receiver and accessories.

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use. Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

• Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

• Professional sound and excellent construction quality

• Easy to use and fast setup time

• Easy and flexible wireless synchronisation between transmitter and receiver via infrared

• Up to 88 MHz bandwidth, up to 32 channels

• Range: up to 100 meters / 330 feet

• Increased RF output power (10/30/50 mW)

• Up to 8 hours of operation time

• With 48 V phantom powering

SPECIFICATIONS

EK 500 G4
Frequency range: GBW: 606 - 678 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 130 g
Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
Signal-to-noise ratio: Line: ≥ 110 dBA, Phones: approx. 90 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 140 mA, with receiver switched off: ≤ 25 µA
Adjacent channel rejection: Typically ≥ 65 dB
Intermodulation attenuation: Typically ≥ 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 1.6 μV for 52 dBA eff S/N
Squelch: low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range: -10 °C to +55 °C
Receiver Principle: Adaptive diversity
Blocking: ≥ 70 dB

SK 500 G4
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: ≥ 115 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: ≤ 25 µA
Input impedance: 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm

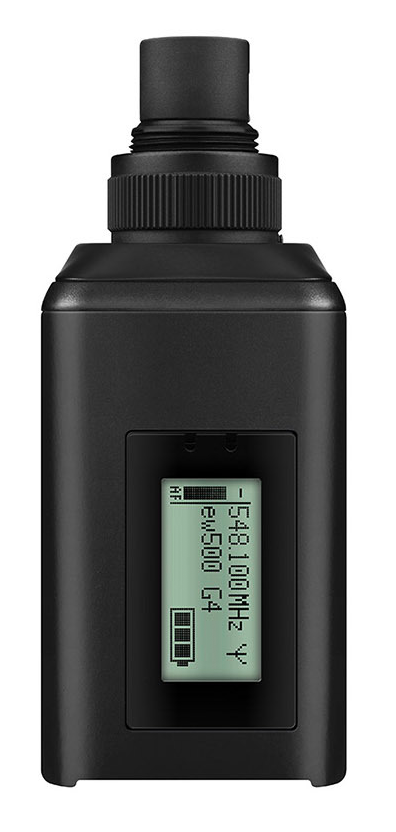

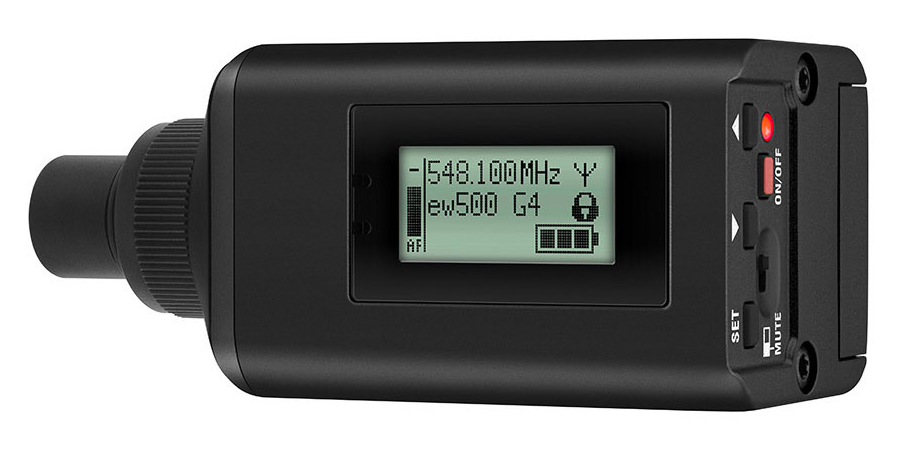

SKP 500 G4
Dimensions: Approx. 105 x 43 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 195 g
Signal-to-noise ratio: ≥ 120 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 210 mA, with transmitter switched off: ≤ 25 µA
Input impedance: 68 kΩ, unbalanced
Max. Input voltage: 6 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm

MKE 2
Connector: 3.5 mm jack
Frequency response: 20 to 20.000 Hz ± 3 dB
Max. sound pressure level: 142 dB
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
Equivalent noise level: 26 dB
Equivalent noise level weighted as per CCIR: 39 dB

What's in the Box

• EK 500 G4 camera receiver

• SK 500 G4 bodypack transmitter

• SKP 500 G4 pro plug-on transmitter

• MKE 2 clip-on microphone

• 4 AA batteries

• CL 1 3.5 mm jack cable

• CL 500 XLR to 3.5 mm jack adapter cable

• CA 2 camera adapter

• fur windscreen for MKE 2

• quick guide

• safety guide

• manufacturer declaration sheet
