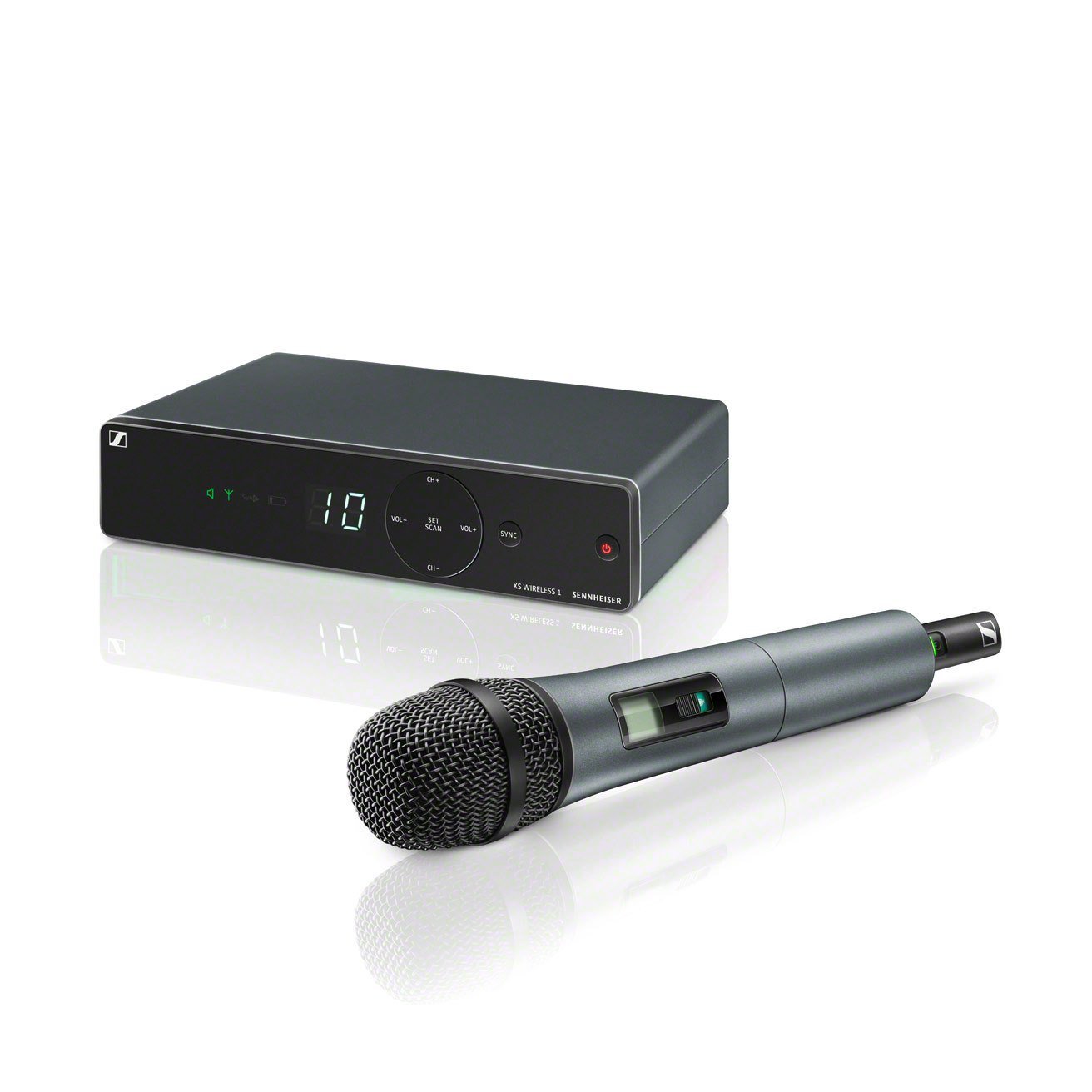

Sennheiser XSW 1-835

Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Key Features

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)

• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

Specifications

Dimensions

approx. 200 x 42 x 127 mm

THD, total harmonic distortion

≤ 0.9%

Pick-up pattern

cardioid

Signal-to-noise ratio

≥ 103 dBA

Microphone Receivers

• Weight

  approx. 245g

• Power supply

  Microphone: 2 AA size batteries, 1.5 V

• AF frequency response

  SKM 825: 80-14,000 Hz

  SKM 835: 80-16,000 Hz

• Weight

  approx. 340g

• Power supply

  Receiver: 12 V DC nom. / 300 mA

• AF frequency response

  Receiver: 50 to 16,000 Hz (–3 dB)

• RF output power

  10 mW

• Switching bandwidth

  up to 24 MHz

• Operating time

  approx. 10 hrs

• Modulation

  wideband FM

• Output voltage

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Housing

  rugged ABS housing

• Dynamic range

  dynamic

• Frequency

  8 frequency banks, each with up to 10 factory-preset channels

• Frequency range

  A: 548-572 MHz, GB: 606-630 MHz

  B: 614-638 MHz

  C: 766-790 MHz

  D: 794-806 MHz

  E: 821-832 MHz, 863-865 MHz

  K: 925-937.5 MHz

• Sensitivity

  < 3 μV at 52 dB(A)rms S/N

• Squelch

  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

• Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)

• Input sensitivity

  1.5 mV / Pa

• Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps

• Audio adjustment range

  45 dB, adjustable in 5-dB steps

• Line / Mic level

  20 dB, switchable

• Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C

• Receiver Principle

  double superheterodyne

• Diversity principle

  Antenna switching diversity via internal antennas





  What's in the Box

  1 receiver EM-XSW 1 1 handheld transmitter SKM 825-XSW or SKM 835-XSW 1 microphone clamp MZQ 1 1 power supply NT 12-5 CW 2 AA batteries
