Sennheiser XSW 2-ME2-A

Inspire your audience. Flexible, rugged, all-in-one wireless system for public speakers and presenters.

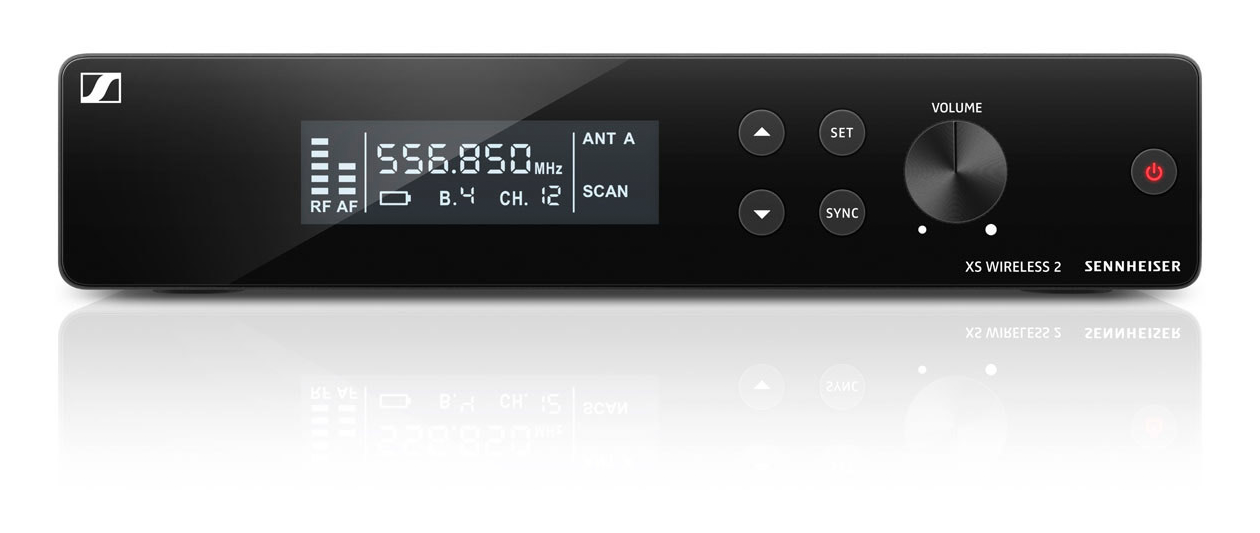

High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

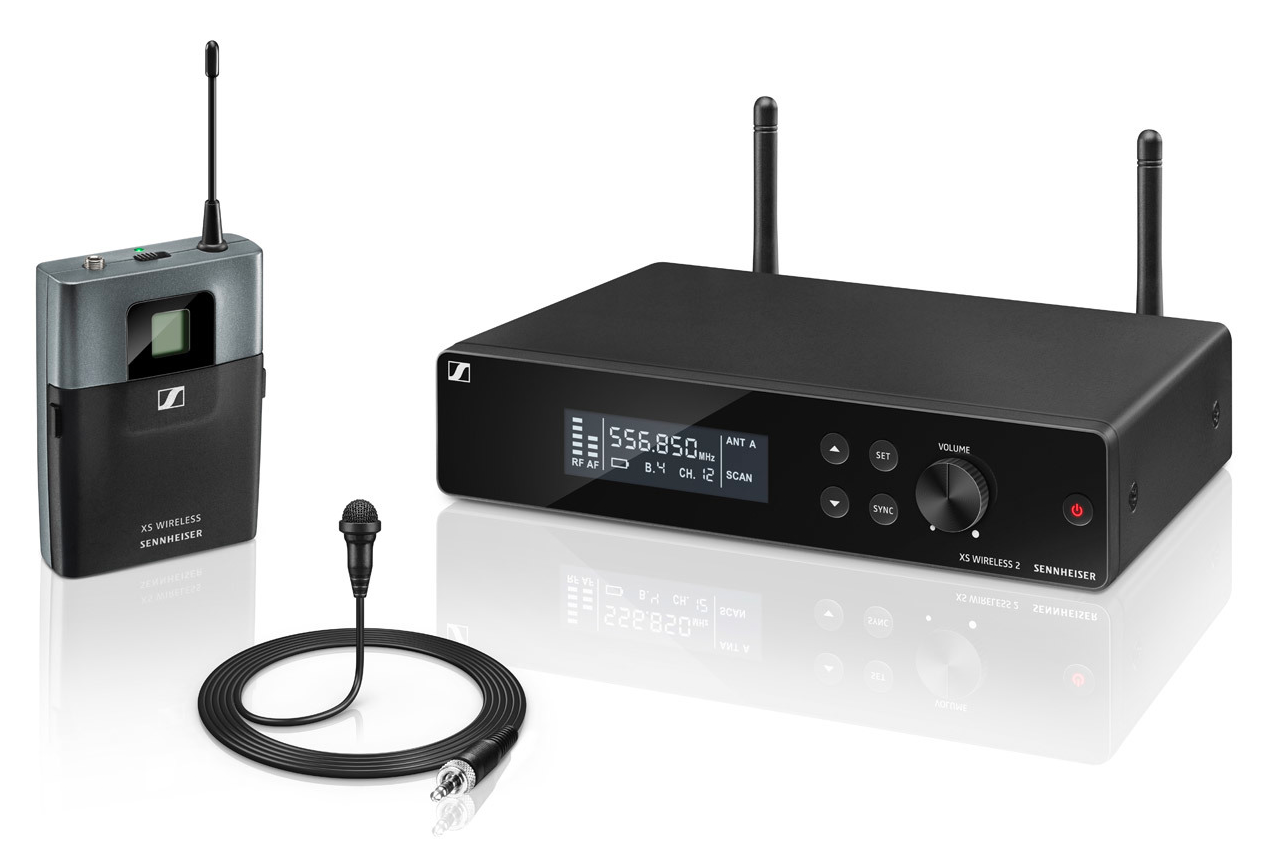

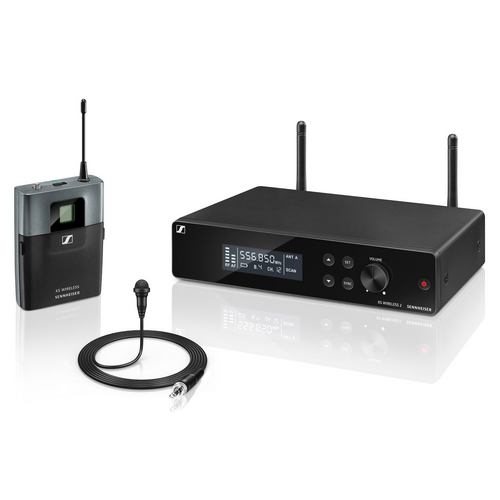

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.

• Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

SPECIFICATIONS

Receiver
Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 680g
Power supply: 12 V DC nom. / 300 mA
Housing: Metal
AF frequency response: 50 to 16,000 Hz

Transmitter
Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Housing: Robust ABS
AF frequency response: 50 to 16,000 Hz (–3 dB)
Microphone: Condenser
Frequency response: 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion: ≤ 0.9%
Pick-up pattern: Omni-directional
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation: Wideband FM

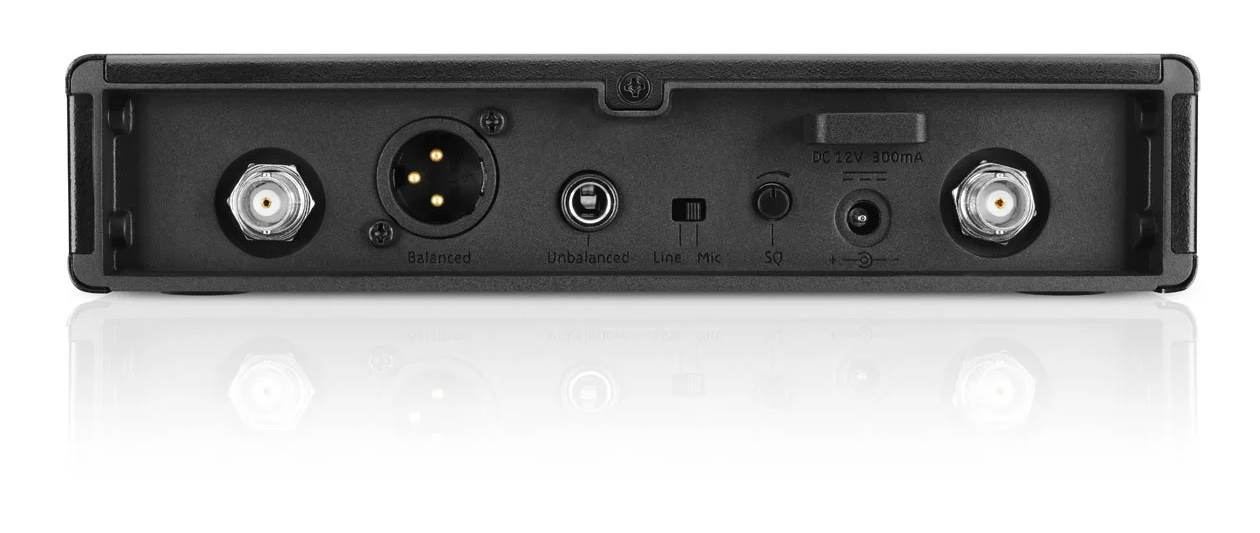

Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception: True Diversity
Frequency: 8 frequency banks, each with up to 12 factory-preset channels
Frequency range: A: 548-572 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne

What's in the Box

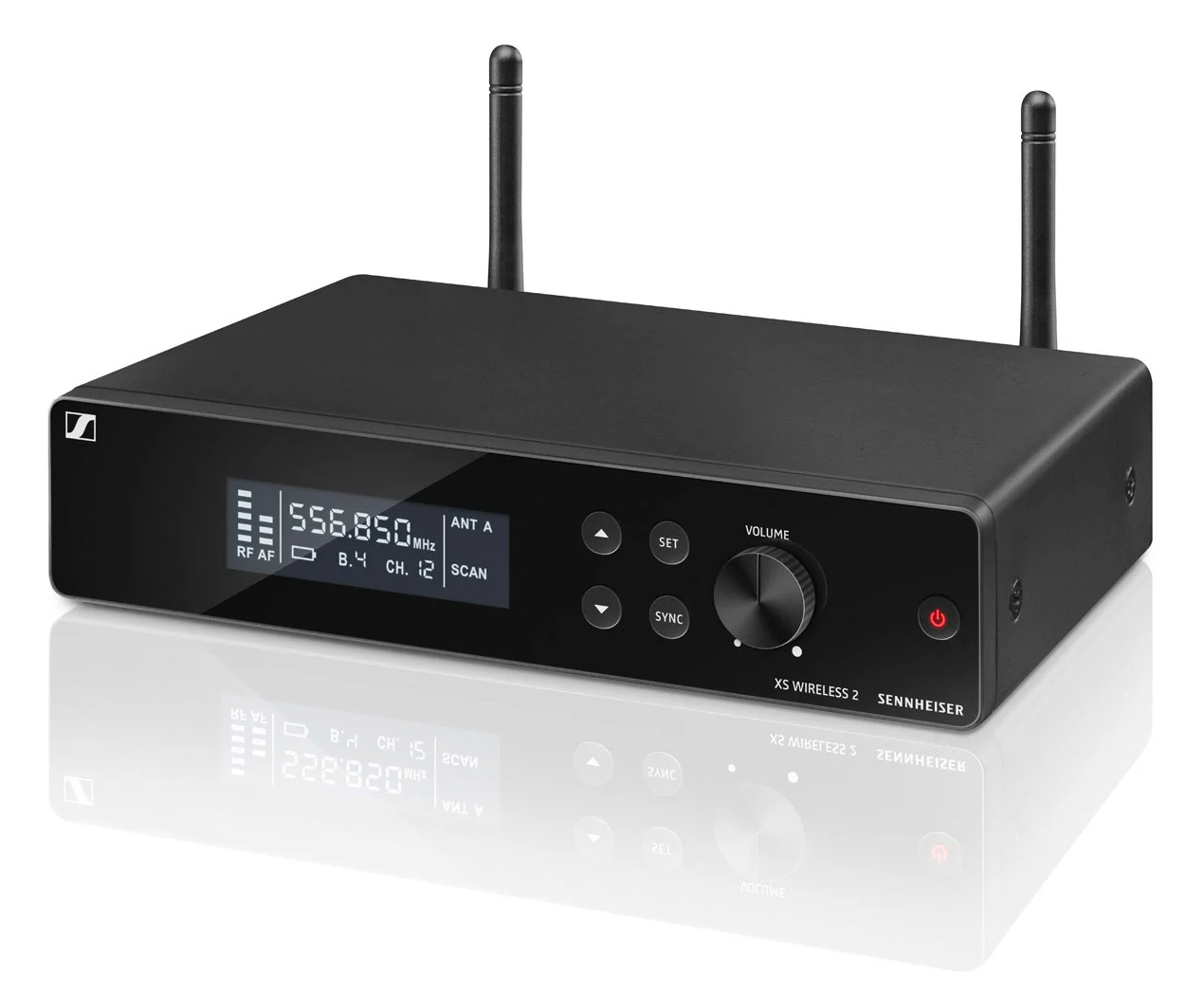

• 1 receiver EM-XSW 2

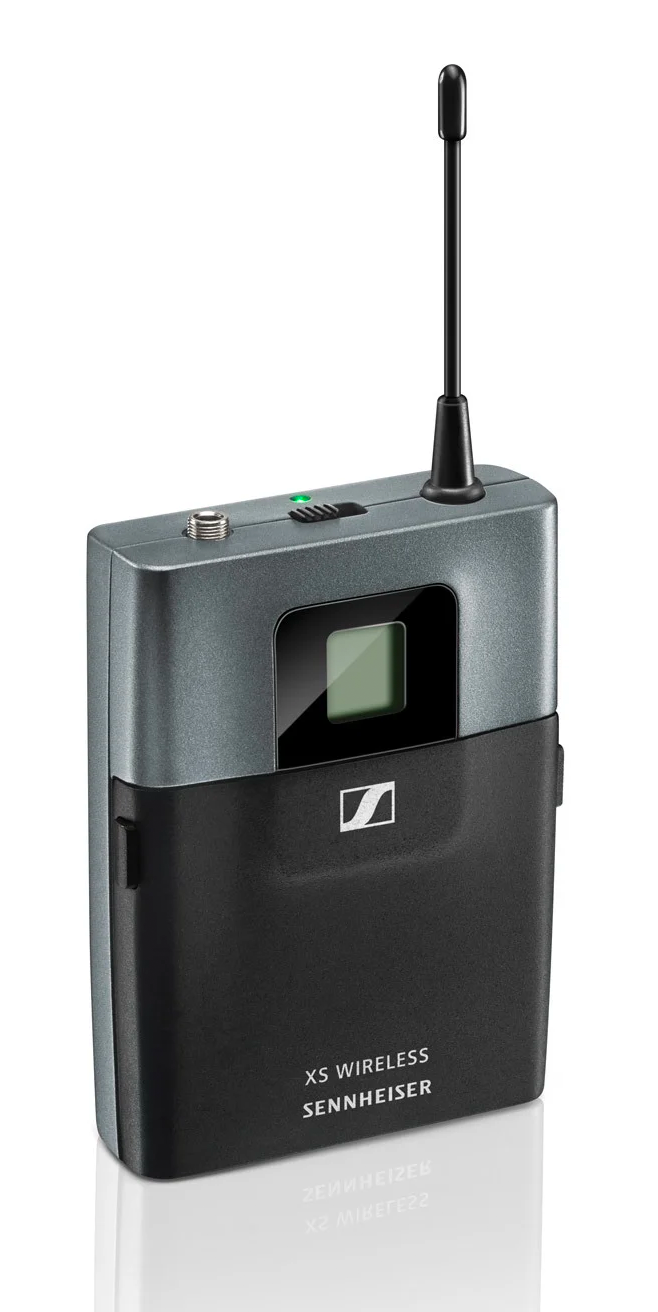

• 1 bodypack transmitter SK-XSW

• 1 lavalier microphone ME 2-2

• 1 power supply NT 12-5 CW (adapter for the XSW 1-Cl1-GB only contains the UK changeable plug)

• 2 AA batteries

• 1 rackmount kit

• 1 pouch

• user manual
