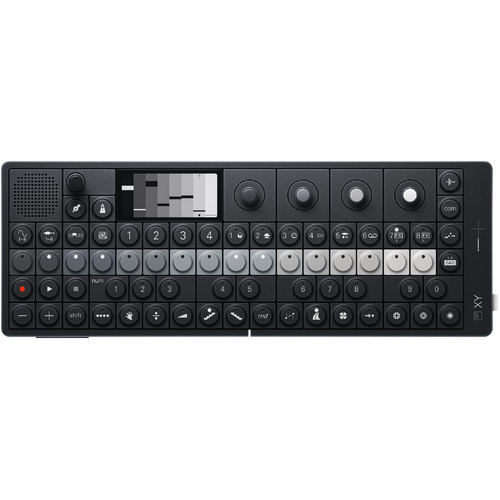

Teenage Engineering OP-XY

Love at first sight.

The new evolution of sequencing. OP–XY is a powerful sequencer, synthesizer, and sampler. Stack sounds on a 64-step grid, and create thousands of projects. Tactile 24-key keyboard and a multi-out jack that lets you select one of four outputs. 8 unique synth engines, two send effect slots, plus brain™ for transposition—it’s a complete studio in the palm of your hand.

FEATURES

• Sequencer, synthesizer and sampler

• Built-in speaker for room-filling sound

• 16 hours usb-c rechargeable battery

• Multi-out port

• Thousands of user projects

• 8 unique synth engines

• USB-C audio/midi host

• Dimensions: 288 x 102 x 29 mm | 11.4 x 4 x 1.2 in

• Weight: 900 g | 31.7 oz

The Dream Machine.
Be careful what you wish for—we know you’ve had wet fantasies about a no-compromise, dual-cpu boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP–Z. Now including built-in CV, effect sends, and a best-in-class DAC. With 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. We dare to say it's probably the most complete, portable sequencer ever built. It's here. it's real. it's black. and it's got so much more than you've wished for.

Nice Uniform Design.

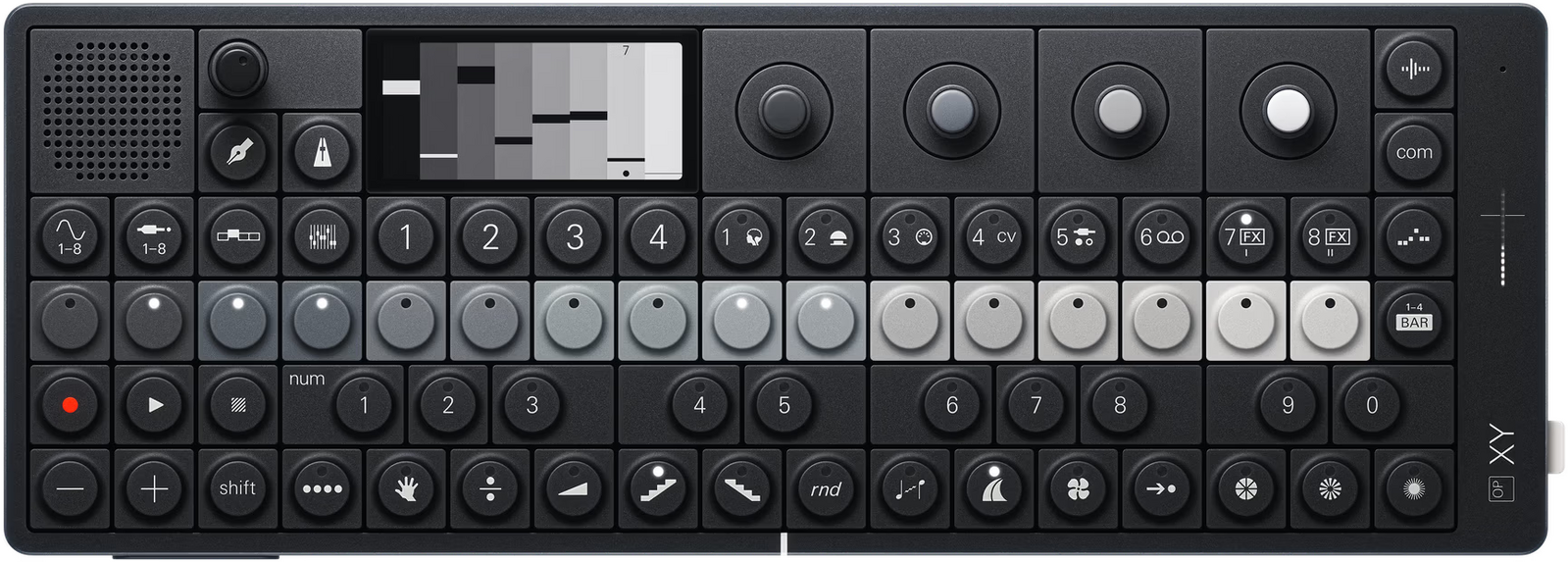

The exterior is all black, and matches the exact dimensions of OP–1 field. A distinct grayscale gradient is at its center, making it clear that OP–XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all
grayscale, with a bright red to indicate recording and parameter locks. All vital keys have leds to stay in full control. It's minimal. It's efficient. It's sexy.

The Sequencer.
Experience the ultra fast sequencing workflow. Punch-in FX™ lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. Randomize note timing, velocity and pitch, or use live automation to alter filters. Use Brain™ to create chord progressions, generating tracks that reinvent themselves. literally.

A Variety of Functions.

• 8 Unique Synth Engines

• New Drum Sampler

• Multisampler

• Synth Sampler

• 4 Filter Types

• 24-voice Multitimbral Synthesis

• Players Per Track

• Instant Sampling

• 6 Built-in FX

• Master EQ

• Master Saturator

• Master Compressor And Limiter

• Stereo Signal Path

• Brain™ – Intelligent Transposer

• 24 Punch-in FX™ For Performance

• Creative Tape Looper

• 2 Sequenceable Built-in FX Slots

• MIDI Channels Selectable Per Track

• 10 000+ Project Files With Version History

• 16-track, 64-step Sequencer With 4 Pages

• Powerful Step Components

• 9 Patterns Per Track, 99 Scenes

• Song Mode With 9 Songs Per Project

• Presets Per Pattern

• 10 Grooves For Creative Swing

• USB-C Audio/MIDI Host And Device

• Audio-out

• A Multi-out Jack, For CV, MIDI, Audio And Sync Out

• MIDI-in

• Audio-in

• Built-in Speaker

• Built-in Mic

• Smooth Parameter Locks

• 1920 PPQN

• Pressure Sensitive Pitchbend

• Bluetooth LE MIDI

• Microtonal Tuning

• Performance Gyroscope

• And Much, Much More...

Stop-Sequences.
Run every track, independently, at different speeds and lengths to form powerful polyrhythms. Create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Connect Everything.

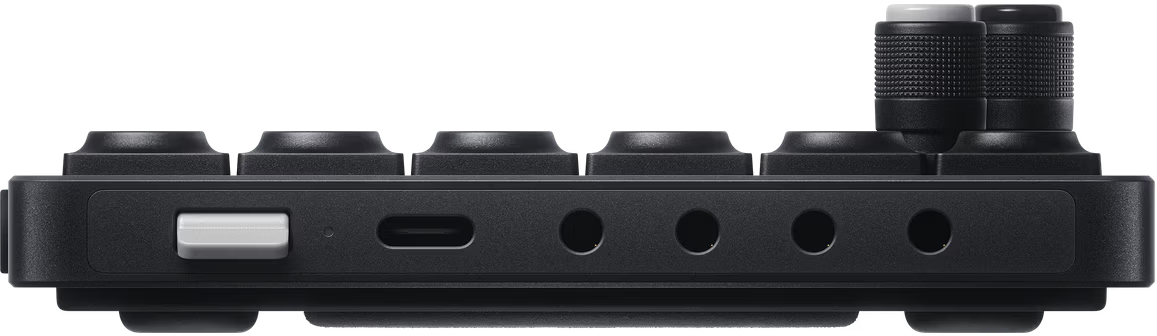

The right side of OP–XY features an advanced i/o system, made to lodge and connect almost anything. Use the main output to connect amps, speakers or headphones. The 4-in-1 multi-out jack can pair pedals, synths, drum machines, even Eurorack systems, and much more. Sample and monitor anything—your voice, dirty stabs, a guitar—with audio-in or the built-in mic. MIDI-in and MIDI over USB type-C offers both host and device modes; use it as a ‘control hub’ for keyboards, drum pads, or cut the cables with Bluetooth LE for low-latency, wireless communication.

Longer, Further, Stronger.
Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the i/o you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere.
