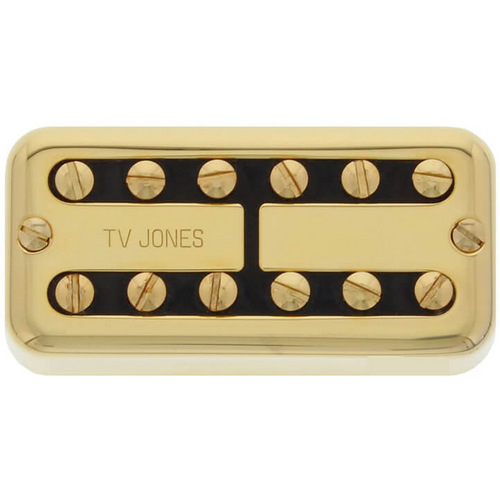

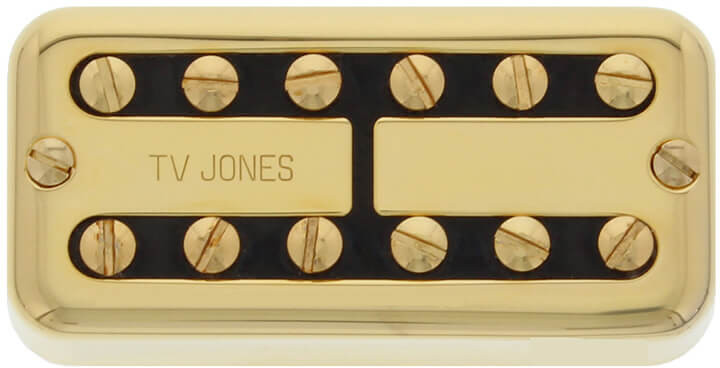

TV Jones Classic Plus Bridge Universal Mount Gold

This bigger, badder, older sibling to the TV Classic is a bridge position only pickup that packs a mighty punch. Using thinner gauge wire, it saturates quicker with punchy mids but keeps that "Classic" Filter'Tron vibe.

Tone/Characteristics
Like a TV Classic but with more attitude, the TV Classic Plus is wound with thinner gauge wire providing a slightly rounder top-end and a touch more output. Many players wish for a Filter'Tron that has "more" to it's sound...this pickup fills that need very well. Installing the TV Classic Plus with a Super'Tron paves the way for some serious Chet Atkins glory (check out his '59 Country Gentleman) but is also a wonderful combination that brings out some of the best sounds in our line (and secretly one of TV's favorite combinations).

Installation
The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

• As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber

• As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

Wiring Notes
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

SPECIFICATIONS

Position: Bridge
Resistance: 7.8k
Inductance: 2.83H
Pole Spacing E to E: 2.03"
Pole to Pole Spacing:. 406"
Recommended Pot Value: 500k
