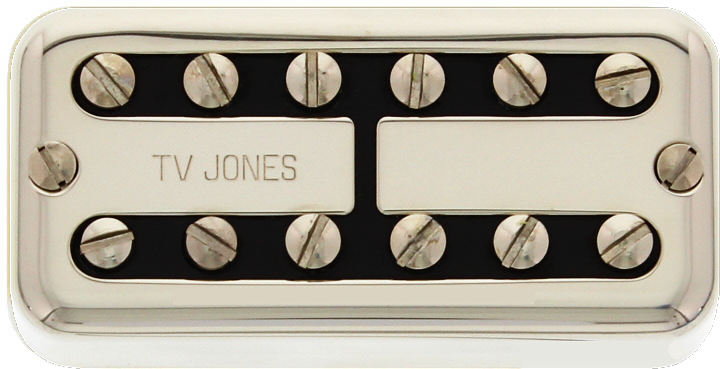

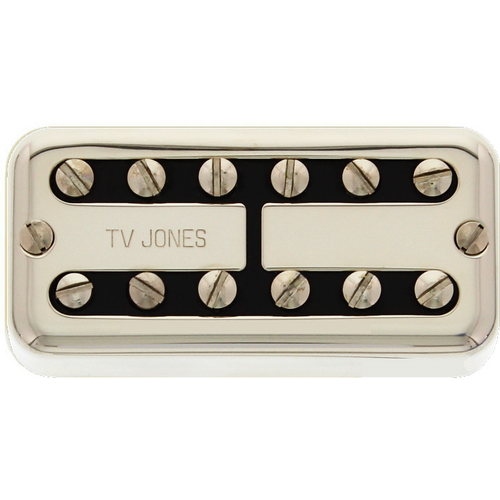

TV Jones Power'Tron Bridge Universal Mount Nickel

The Power'Tron was born out of our desire to create a pickup that has the character of a PAF-style humbucker yet retains the essence of a Filter'Tron. Larger bobbins, standard HB sized wire, and more windings create a badder, gnarlier older brother to the TV Classic (and TV Classic Plus).

Tone/Characteristics
Mixing the vintage tone of a golden-age PAF with the rockabilly twang of a late-'50s Filter'Tron. Full body and a clear top end that is naturally dynamic. Digging in reveals a chunky low-end breakup paired with a barky top-end grit that sounds amazing through a tube amp. This is a great choice if you like the overall Filter'Tron sound but want more guts and glory than usually provided by lower output pickups.

Installation
The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

• As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber

• As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

Wiring Notes
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Splitting coils works well with the Power'Tron because of its naturally higher output. 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.

SPECIFICATIONS

Position: Bridge
Resistance: 7.8k
Inductance: 4.75H
Pole Spacing E to E: 2.03"
Pole to Pole Spacing:. 406"
Recommended Pot Value: 500k
