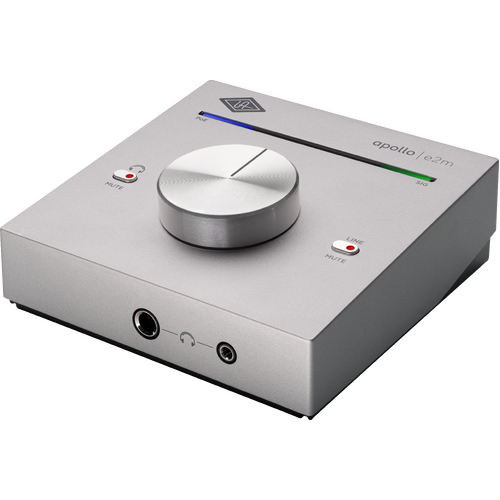

Universal Audio Apollo e2m

FEATURES

The UA Apollo e2m is a compact yet powerful stereo headphone amplifier and line interface designed for Dante networked audio environments. It offers 2x2 Dante I/O, allowing for easy integration into digital audio workflows while maintaining low-latency monitoring. With Power-over-Ethernet (PoE) support, the Apollo e2m eliminates the need for an external power supply, making it a highly flexible and convenient choice for professional studios, live sound setups, and broadcast applications.

The Apollo e2m features two TRS line inputs, which can be converted into Dante outputs, making it a straightforward solution for integrating analog audio sources into a Dante network. On the output side, it accepts two Dante input channels, which can be routed to dual TRS ¼” line outputs, a ¼” headphone output, and a ⅛” headphone output.

A dedicated analog potentiometer allows users to control all analog outputs simultaneously, ensuring quick and intuitive volume adjustments across headphone and line outputs

To enhance workflow flexibility, the Apollo e2m includes two separate mute buttons—one for headphone outputs and another for line outputs. This allows for independent control over different monitoring paths, making it easy to mute specific outputs without disrupting the entire system.

SPECIFICATIONS

• 2 x 2 Dante I/ O

• 2 TRS line inputs > 2 Dante outputs

• 2 Dante inputs >-2 TRS ¼” Line outputs-1 TRS ¼” Headphone output-1 TRS ⅛” Headphone output

• Analog pot controls all analog outputs simultaneously

• Two separate mute buttons for: Headphone outputs and Line outputs

DIMENSIONS

• Height - 6 cm

• Width - 16 cm

• Depth - 16 cm

• Weight - 1 kg
