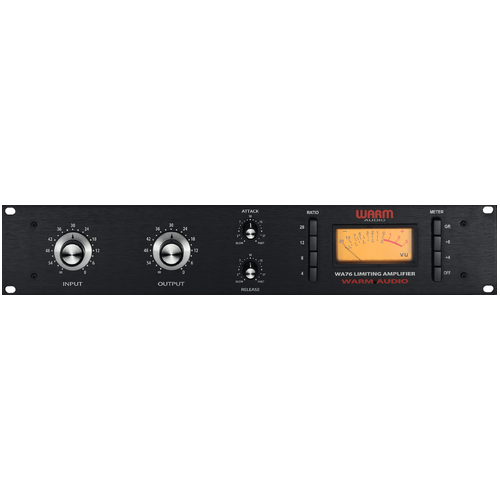

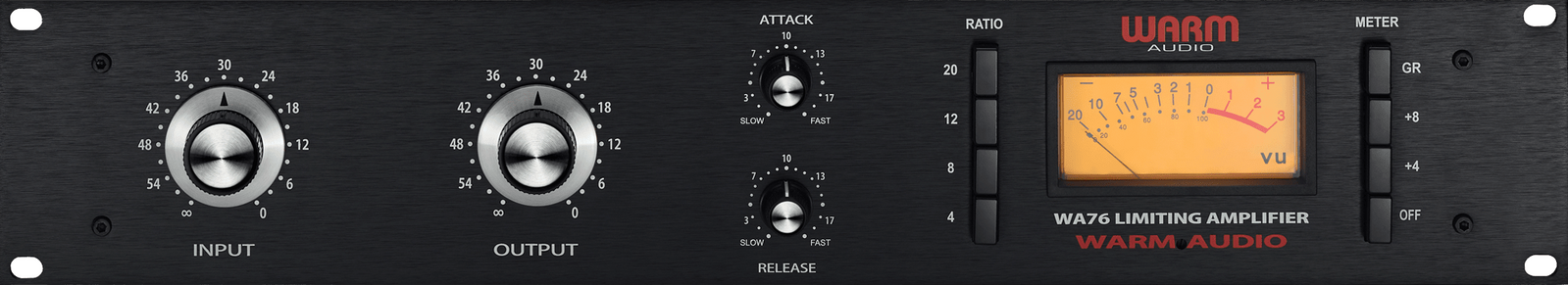

Warm Audio WA76

Accurate Reproduction Of The Most Powerful And Adaptable Studio Compressor / Limiting Amplifier Of All Time

The Timeless Sound Of Tight Compression
The WA76 accurately reproduces one of the fastest and most powerful studio compressors of all time known for ultra-responsive dynamic control with analog grit. Used heavily on vocals, drums, guitar, bass, and anything in the studio requiring tight dynamics, vintage originals can be heard on legendary recordings by artists like Sting, Jack White, John Mayer, Michael Jackson, Coldplay, Foo Fighters, Timbaland, and many more.

Fast & Powerful With Unmistakable FET Grit
The original 76-style of compression is known for its versatility, speed, and rich harmonic distortion when driving the FETs & transformers. When a track requires strong dynamic control - whether it be from aggressive attack & release settings or driving the output into harmonic distortion using “All-buttons in” mode, the WA76 delivers the same legendary performance of vintage “Rev D” FET compressors.

SPECIFICATIONS

Product Description & External Specs (Per Channel)

• 100% Analog Discrete FET Compressor

• Modeled After The Revision-D Version

• Meter Provides dB Gain Reduction & dB Output

• Switchable 115/230 Volt IEC Power Inlet

• 19″ Rackmount Chassis, 2U

• 5-Year Warranty

Components & Internal Specs (Per Channel)

• Utilizes Premium Grade Input & Output Cinemag USA Transformers

• Completely Discrete Signal Path

• Supports The Famous "All Buttons In" Ratio Setting

Performance Specs (Per Channel)

• Ultra-Fast Attack Time

• Class-A Line Level Output Amplifier

• Input Impedance - 600 Ohms, Bridges-T Control (Floating)

• Frequency Response ± 1 dB 20 Hz to 20 kHz

• XLR & TRS Inputs. XLR & TRS Outputs

• 50 dB of Gain

• Less Than 0.4% Total Harmonic Distortion From 50 Hz To 20 kHz With Limiting

• Signal to Noise Ratio is Greater Than 74 dB at +25 dBm

• EIN -104.1 dBm

• Attack Time, 20 Microseconds to 800 Microseconds

• Release Time, 50 Milliseconds to 1 Second
