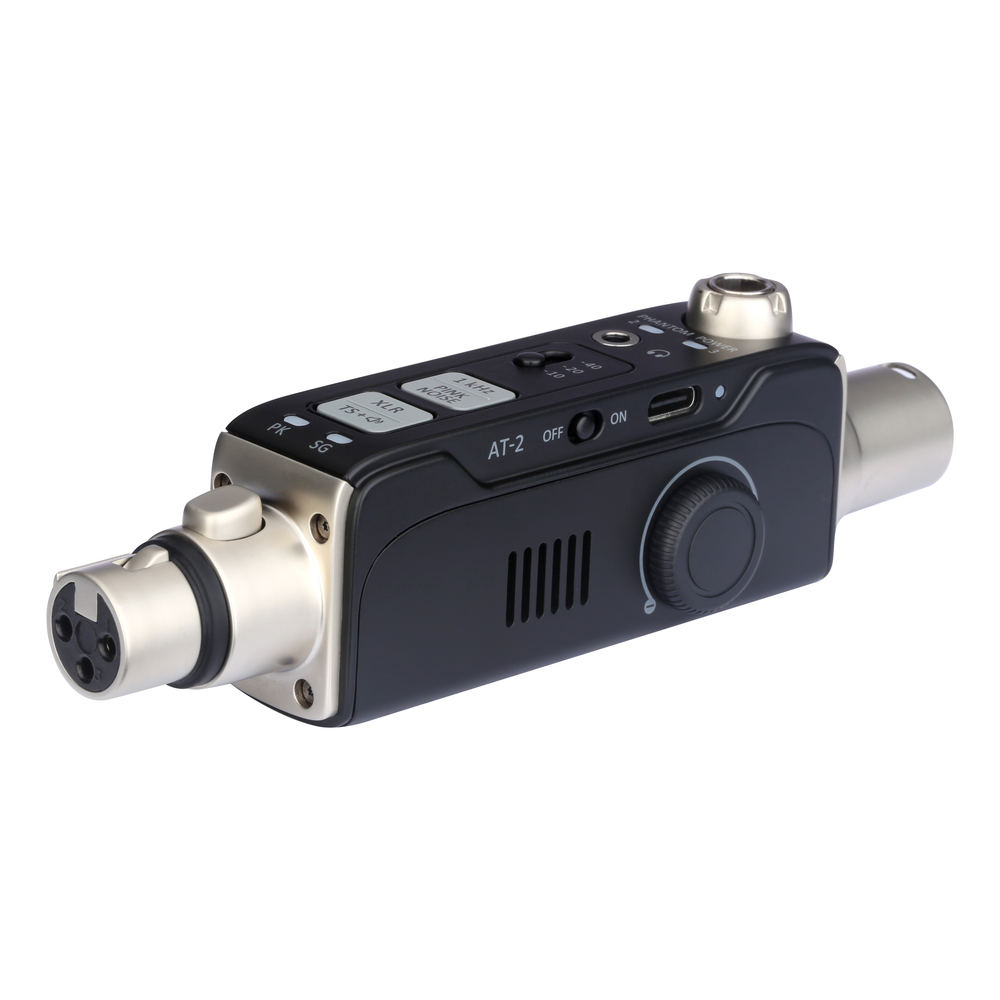

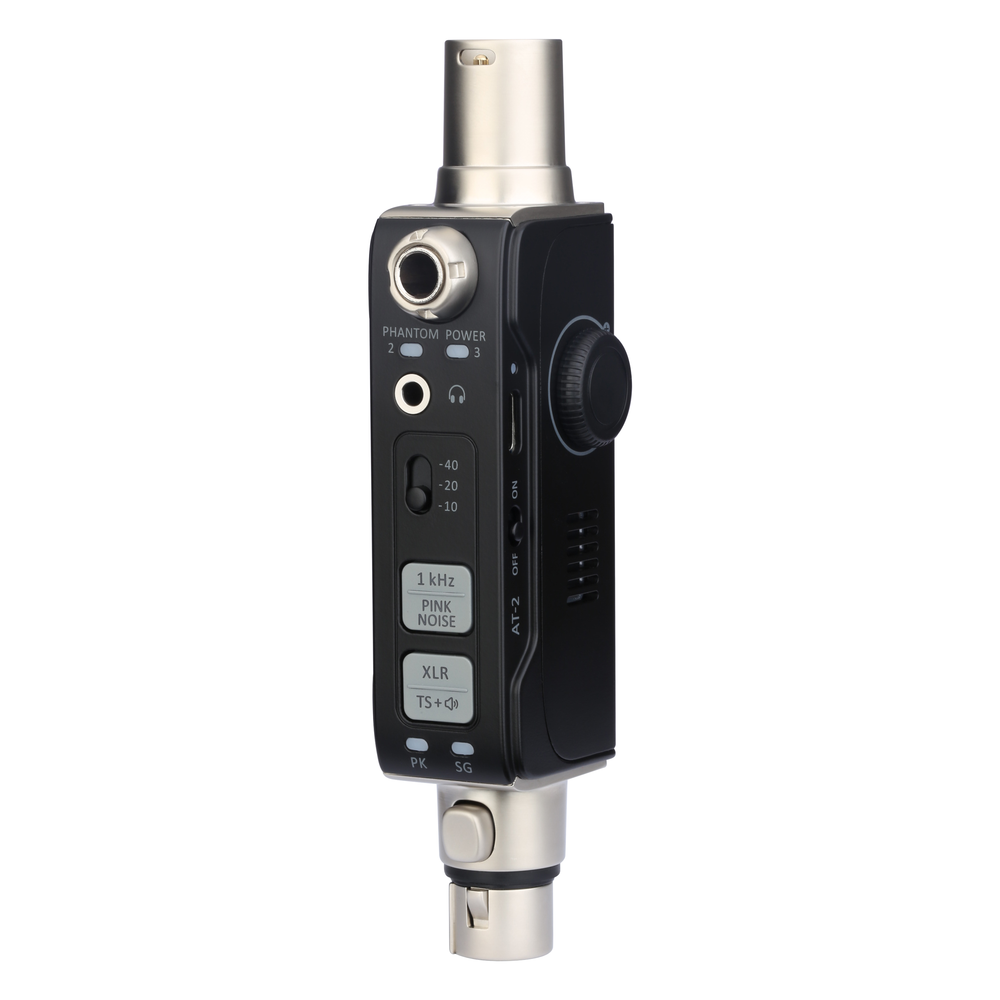

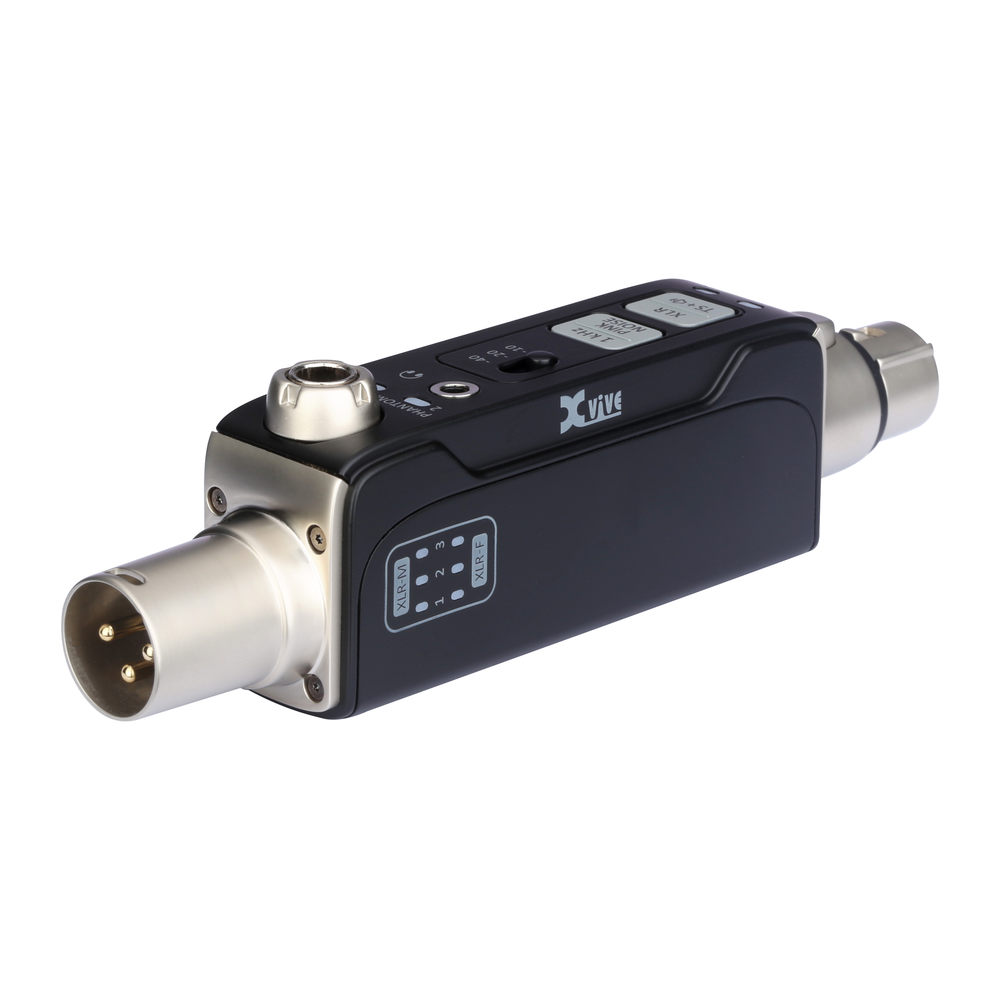

Xvive AT-2 Audio Tester

A compact, portable, high-precision audio tester featuring five essential testing functions. Ideal for a wide range of audio equipment diagnostics. The XVIVE AT-2 builds on the features of the AT-1, adding enhanced accuracy and stability. It integrates five core functions: signal generation (1 KHz tone or pink noise), XLR cable testing, XLR input level metering, phantom power detection, and headphone/speaker monitoring. Suitable for testing powered speakers, effect pedals, cables, di boxes, IEM systems, mixers, and more, the AT-2 is an indispensable diagnostic tool for audio professionals.

FEATURES

• Signal Generator: Outputs a 1 kHz sine wave or pink noise audio signal through male XLR, 1/4", and 1/8" connectors, with three output level options: -10 dB, -20 dB, and -40 dB.

• XLR Cable Tester: Checks whether all three pins of the XLR cable are properly connected.

• XLR Input Metering: Measures the input volume level of the female XLR connector.

• Phantom Power Check: Tests the output voltage of the phantom power and ensures both pins are functioning properly.

• Headphone and Speaker Monitoring: When an audio source is connected to the female XLR or 1/4" input, you can monitor the signal with headphones or speakers via the 1/8" headphone jack.

SPECIFICATIONS

1 kHz Tone Generator (±1 dB)
XLR Balanced Jack: -40, -20, -10 dBu
1/4" Unbalanced Jack: -40, -20, -10 dBu

Pink Noise Generator (±1 dB)
XLR Balanced Jack: -40, -20, -10 dBu
1/4" Unbalanced Jack: -40, -20, -10 dBu

Input Meter 'SG' Threshold
XLR Balanced Jack: -20 dBu
1/4" Unbalanced Jack: N/A

Input Meter 'PK' Threshold
XLR Balanced Jack: +10 dBu
1/4" Unbalanced Jack: N/A

Output Impedance
XLR Balanced Jack: 350 Ω
1/4" Unbalanced Jack: 600 Ω

Input Impedance
XLR Balanced Jack: 3 kΩ
1/4" Unbalanced Jack: 600 Ω / 3.5 kΩ

Phantom Power Voltage
XLR Balanced Jack: solid: 44 - 52 V; flashing: 24 - 44 V
1/4" Unbalanced Jack: N/A

Cable Tester DC Voltage
XLR Balanced Jack: 3.3V
1/4" Unbalanced Jack: N/A
