Xvive U35D

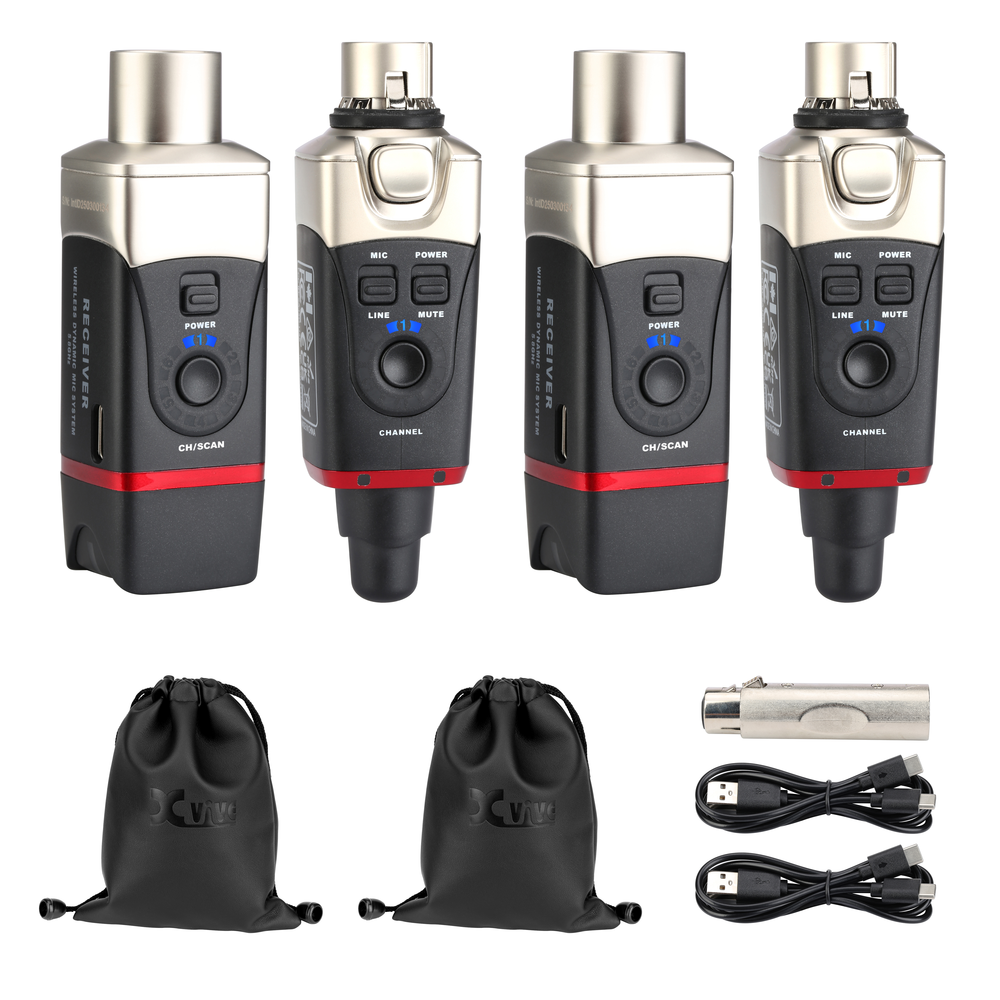

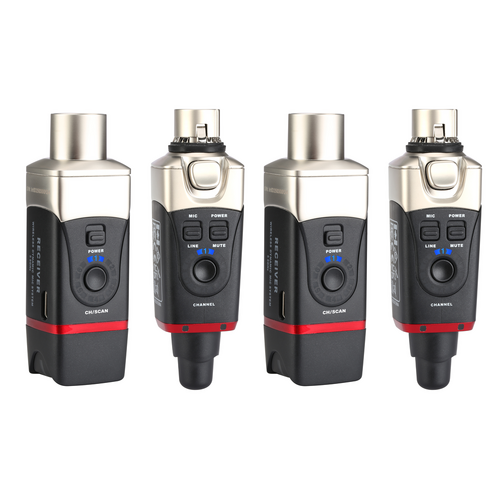

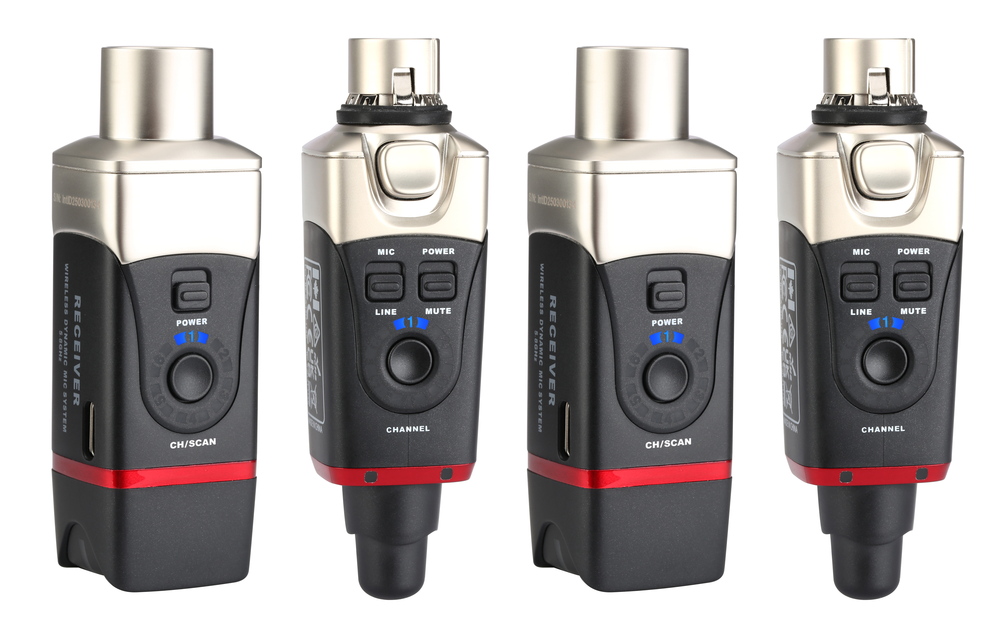

Please note: This product includes two (2) U35 Sets.

 Designed to make microphones wireless, the U35D system features audiophile sound quality, compact size and stable, reliable wireless transmission. The U35D is suitable for live music performance, recording sessions, theatrical productions, public speaking, outdoor applications and more. The U35D even works as a wireless unit for active loudspeakers, and as a wireless extension for XLR cables! It’s small and light enough to fit in your pocket—and sets up in seconds. Plug it in, power on, set the channel… And just like that, your microphone is wireless!

FEATURES

• 5.8 GHz True Diversity wireless system for dynamic microphones

• Automatic scanning for the best signal out of the available 6 channels

• 24-bit / 48 kHz digital audio with low distortion and wide frequency response

• Stable 5.8 GHz wireless connection with a range of up to 100 feet (30.5 m)

• Mic Mode for dynamic microphones and Line Mode for wireless audio from a mixer to a powered speaker

Discover the freedom of wireless—live, at home or in the studio—and roam free with your favorite microphone! U35D broadcasts on the 5.8 GHz wireless channel, avoiding interference from common 2.4 GHz devices.

The System

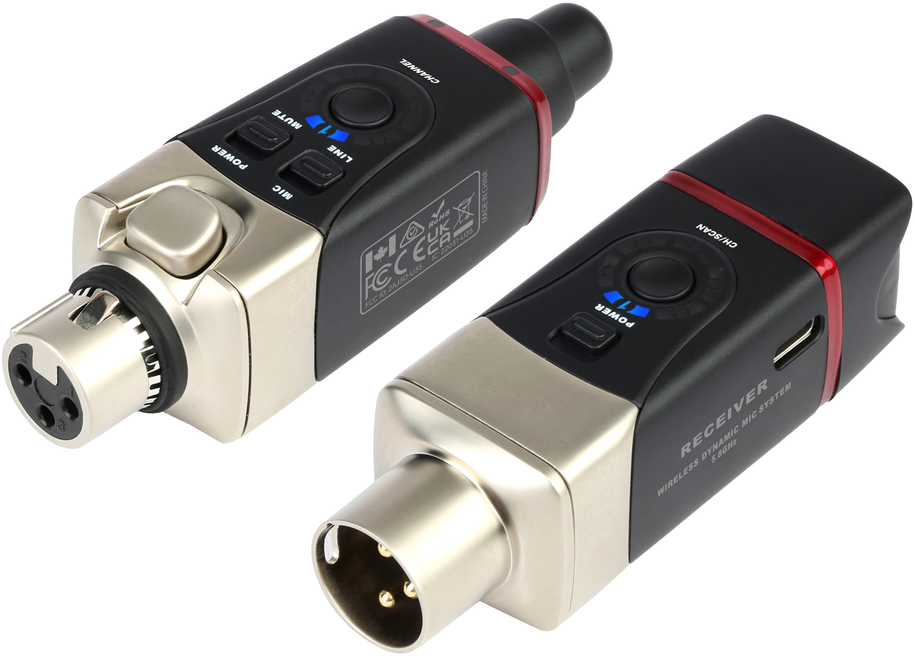

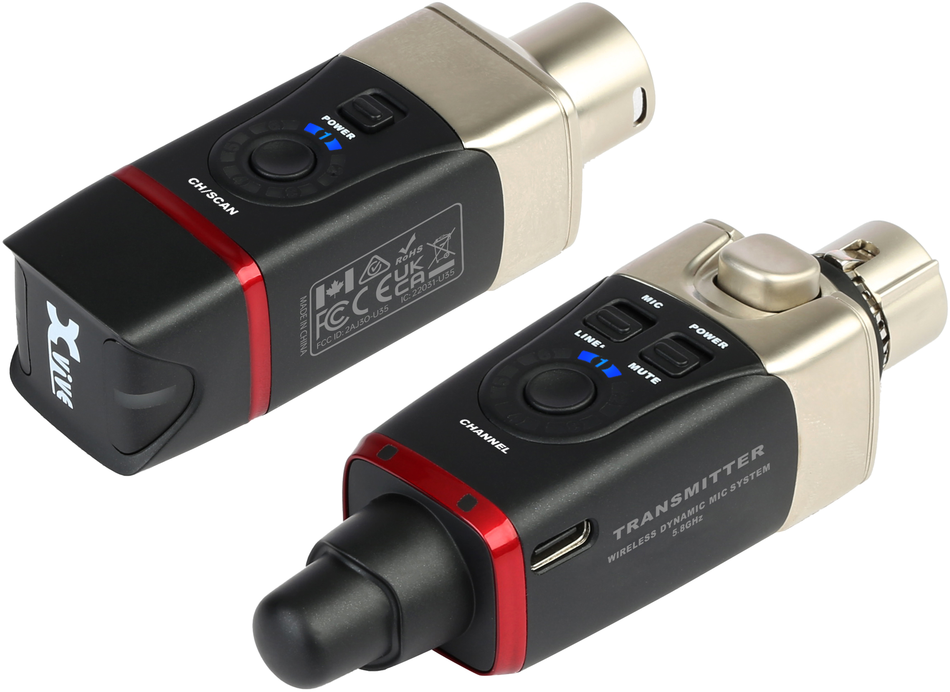

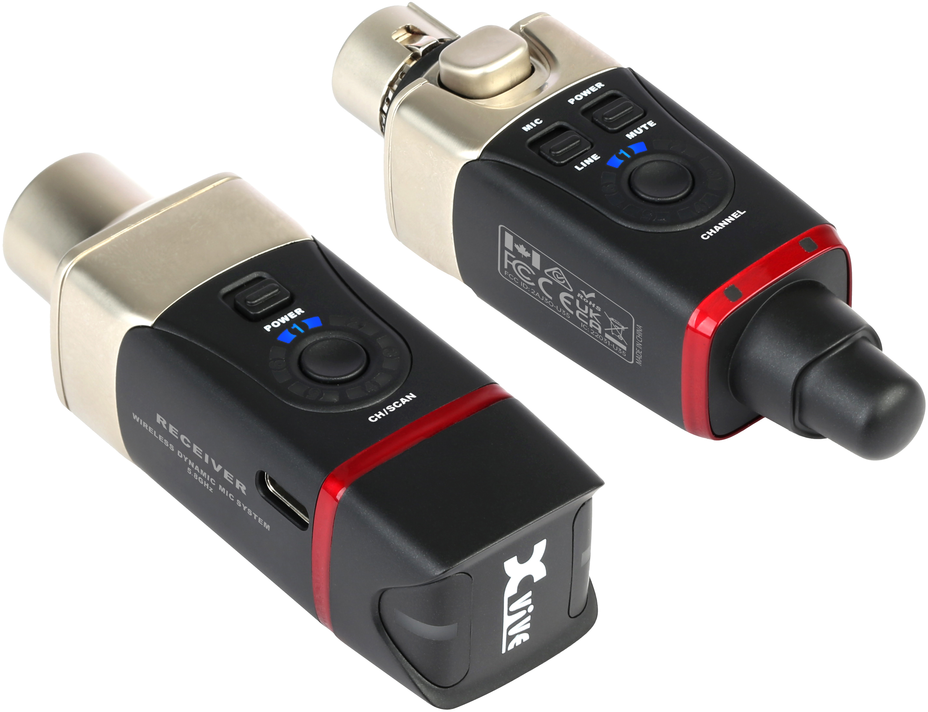

The U35D system is comprised of a transmitter unit, which connects to your microphone; and a receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake.

Your True Voice
The U35D system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 107 decibels. Sing or speak without compromising the quality of your voice or your microphone!

Hold On To Power
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger—and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.

Applications
The basic application is to run wirelessly from a dynamic microphone to a soundboard—live, at home or in the studio. But there’s a lot more you can do with the U35D System!

• Free Voice
  The U35D system is not only great for singers and rappers. Wireless freedom is liberating for harmonica players, public speakers, DJs, preachers, auctioneers, actors, politicians… anyone who wants to move freely while speaking or performing to an audience!

• Bypass the Mixer
  If you need to address a crowd through powered speaker cabinets, not only do you not need a cable, you don’t need a mixer! Just connect your U35D receiver directly to the XLR input of the cabinet.

• Control Your Range
  The U35D receiver can be connected to an XLR cable or snake, meaning that the transmitter’s signal doesn’t have to reach all the way to the soundboard or monitor desk—it can broadcast to the front of the stage, or any central and convenient location.

• Get Amped
  Beyond all the vocal applications, the U35D system can also be used with microphones for guitar amplifiers, as well as direct audio signals from balanced XLR outputs, for example from multi-effect processors or keyboards.

• PA Friend
  Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors.

• Free Instruments
  Use the U35D to roam free with any instrument that requires a microphone or clip-on microphone, such as harmonicas, violins, trumpets, saxophones and accordions! Please note that U35D is not compatible with condenser microphones—so if you do use a condenser mic, the choice for you is the U3C Microphone Wireless System.

• Freedom On Video
  The U35D system can be used to connect microphones to DSLR cameras—provided you have an adapter to run between the XLR receiver and the camera’s (usually 3.5 mm) audio input. Remember to use the U3C when connecting condenser microphones.

SPECIFICATIONS

Wireless Type: 5.8 GHz ISM worldwide open band
Bit Depth / Sample Rate: 24-bit / 48 kHz
Switchable Channels: 6
Simultaneous Channels: 6
Mode: Input: Mic / Line
Frequency Response: 20 Hz – 20 kHz (-3dB)
Dynamic Range: 110 dB (-3 dB)
Microphone Compatibility: Dynamic and battery-powered condenser microphones
Signal-To-Noise Ratio: 110 dB
Total Harmonic Distortion: 0.2%
Latency: 5 ms
Operating Range: 27.5 m / 90 ft (line-of-sight)

Battery
Type: Rechargeable Lithium-ion (internal)
Battery Life: 5 hrs
Charging Time: 2.5 hrs (full charge)
Charging Voltage: 5V (USB)
Usable While Charging: Yes

Transmitter
Model: U35T
Power: N/A
Mode: Input: Mic / Line
Connector: XLR (female)
Dimensions: 31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
Weight: 93 g / 3.3 oz
Mute: Yes

Receiver
Model: U35R
Connector: XLR (male)
Dimensions: 98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
Weight: 92 g / 3.2 oz
