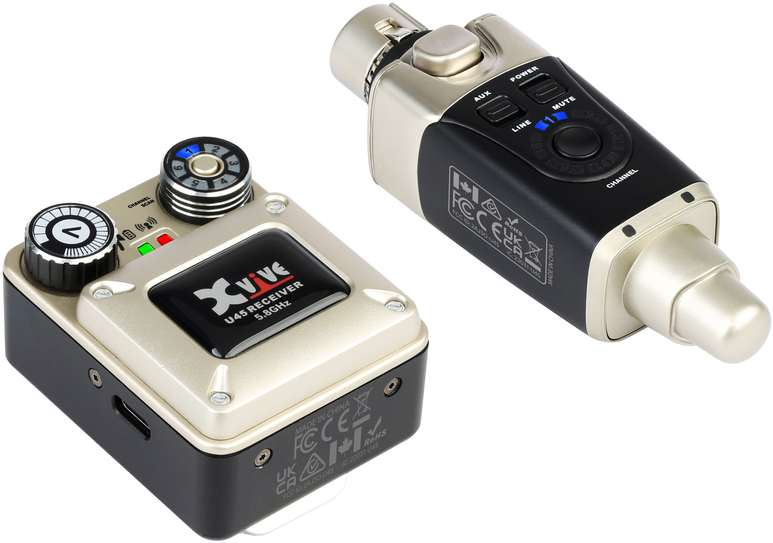

Xvive U45R2

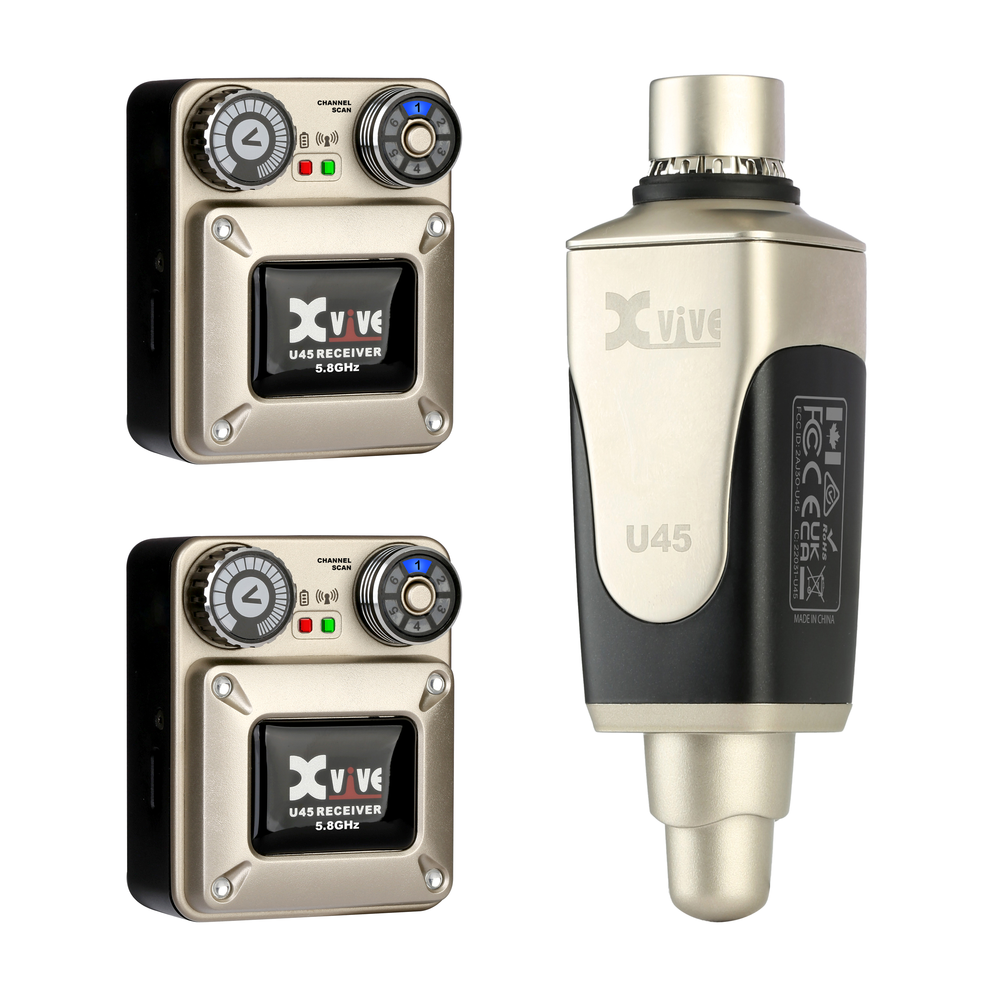

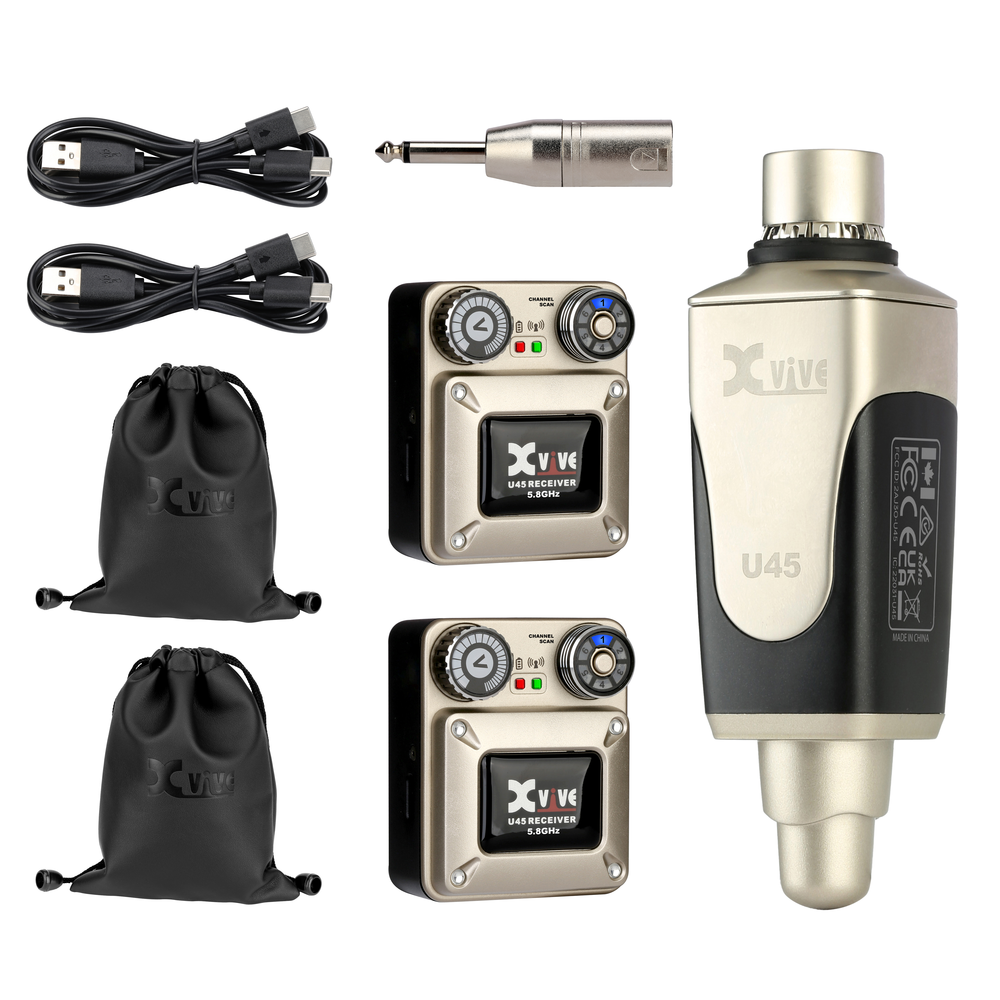

Please note: This product includes one (1) U45T transmitter and two (2) U45R receivers.

The U45 In-Ear Monitor Wireless System delivers great-sounding audio to your favorite in-ear monitors or headphones. Enhance your stage performance by freeing yourself from the tangles and limitations of cables! The U45’s plug-and-play design makes it incredibly portable and easy to use. The U45’s top-quality components and durable metal chassis ensure reliable wireless performance at every show or session.

FEATURES

• 5.8 GHz True Diversity system with a reliable 100-foot wireless connection

• Automatically scans the available wireless channels and selects the best one

• High-quality, ultra-compact wireless system for in-ear monitors

• Audiophile 24-bit / 48 kHz sound with less than 5 ms of latency

• Up to 6 U45 systems can be used in one area simultaneously

Discover the freedom of wireless–live, at home or in the studio–and roam free with your favorite earbuds, headphones or in-ear monitors! U45’s signal broadcasts on the 5.8 GHz frequency, which is less crowded than the 2.4 frequency band, so less likely to encounter interference.

The System
The system is comprised of a transmitter unit, which connects to your audio source (typically a mixer or sound interface); and a belt-pack receiver, to which you connect your earphones or headphones.

Loud and Clear
The U45 system features high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz, a signal-to-noise ratio of 107 decibels, and more volume than you’ll ever need. The sound is better than CD quality, and much, much better than MP3 quality!

Long, Easy Charge
The internal battery in both the transmitter and the receiver lasts for 5 hours. The battery is easily charged using the included USB cable and any standard 5V USB charger, and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.

Applications
The basic application is to run a monitor mix from a soundboard, wirelessly, to one set of headphones or in-ear monitors—live, at home or in the studio. But there’s a lot more you can do with the U45 System!

• Direct Communication
  If you have more than one U45 Receiver, you can broadcast a signal to a whole group of people. This can be useful in situations where one person needs to communicate clearly and directly to a group—either in noisy environments or in situations where you don’t want to disturb others. This makes it an excellent option for things like group demos, presentations or tours.

• Free And Easy Recording
  For recording musicians, whether in a home or professional studio, going wireless makes the whole process so much freer and easier—especially if you’re playing or singing AND engineering at the same time!

• Discreet Practice
  If you want to practice guitar or bass privately—for example late at night—you can run your signal through a multi-effect unit or modeling amp, send either the ¼” or XLR output to your headphones or earphones, and move freely around your home!

Band On The Run
Your whole band—up to six musicians—can use the system together! There can be one monitor mix per transmitter, so if you have multiple U45 sets, you can customize monitor mixes for each band member. This is an easy, great-sounding and cost-effective monitoring solution for studio recording, rehearsals or live gigs. In rehearsal, this also means that there’s no need for PA speakers—so a band can practice in an apartment, or late at night.

SPECIFICATIONS

Wireless Type: 5.8 GHz ISM worldwide open band
Bit Depth/ Sample Rate: 24-bit / 48 kHz
Switchable Channels: 6
Simultaneous Channels: 6
Frequency Response: 20 Hz – 20 kHz (-3dB)
Dynamic Range: 107 dB (-3 dB)
Signal-To-Noise Ratio: 107 dB
Stereo/Mono: Mono
Total Harmonic Distortion: 0.2%
Latency: 5 ms
Operating Range: 27.5 m / 90 ft (line-of-sight)

Transmitter
Included: U45T
Connector: XLR or mono unbalanced 1/4” TS with supplied adapter
Dimensions: 100 x 30 x 28 mm / 3.8" x 1.2" x 1.1"
Weight: 90 g / 3.17 oz

Receiver
Included: U45R
Headphone Output: 3.5 mm / 1/8"
Dimensions: 60 x 47 x 41 mm / 2.36" x 1.85" x 1.61"
Weight: 118 g / 4.16 oz

Battery
Type: Rechargeable Lithium-ion (internal)
Battery Life: 5 hours
Charging Time: 2.5 hrs (full charge)
Charging Voltage: 5V (USB)
Usable While Charging: Yes
