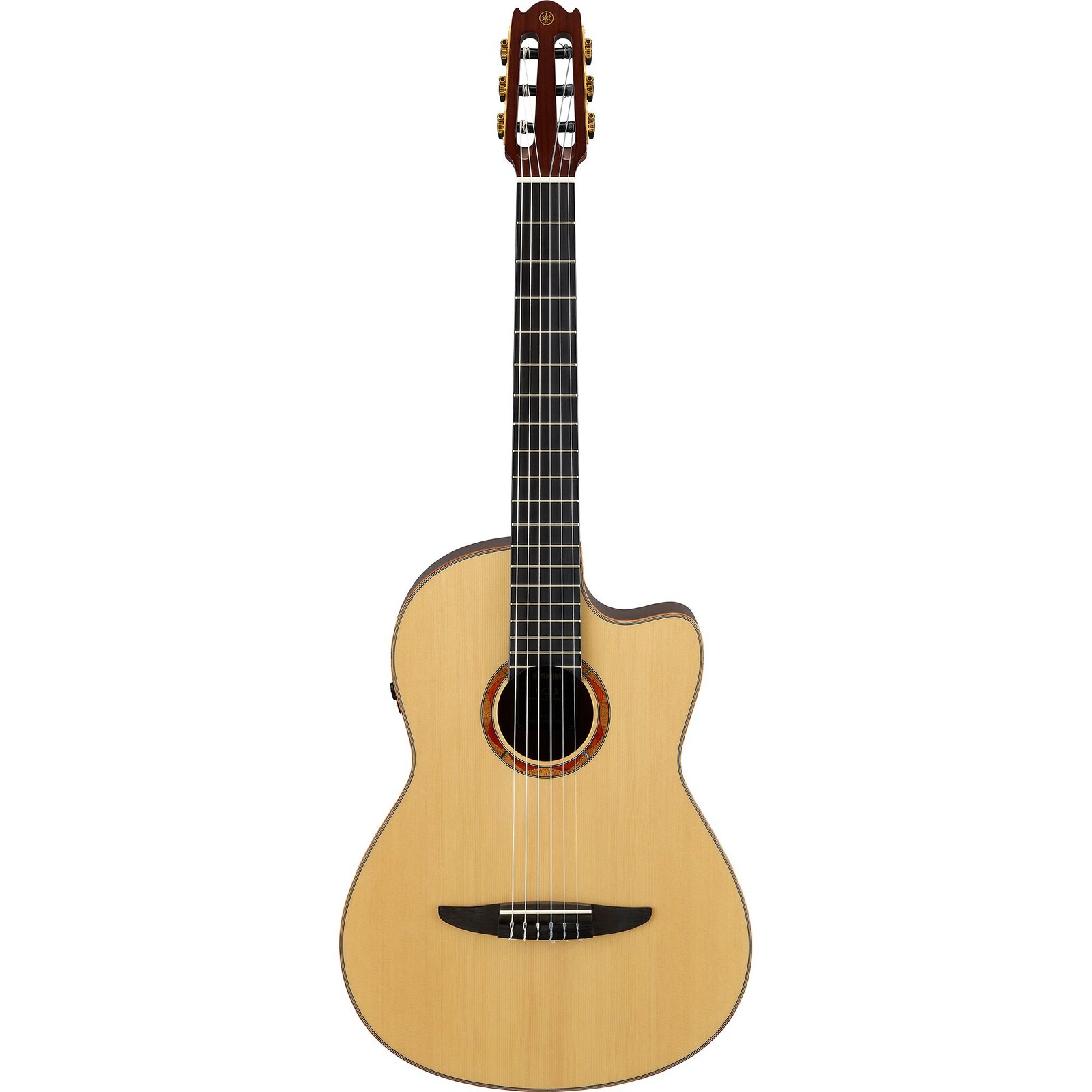

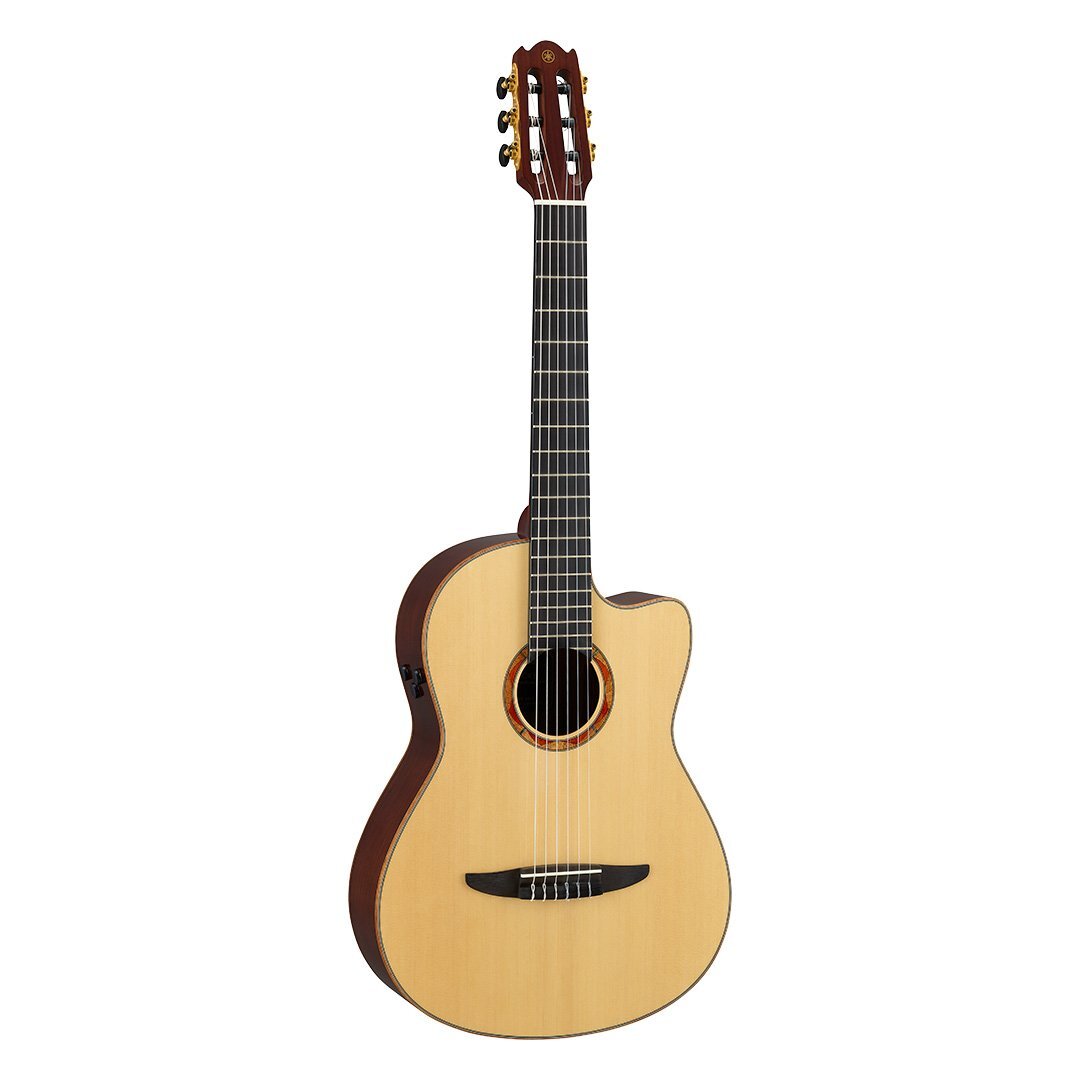

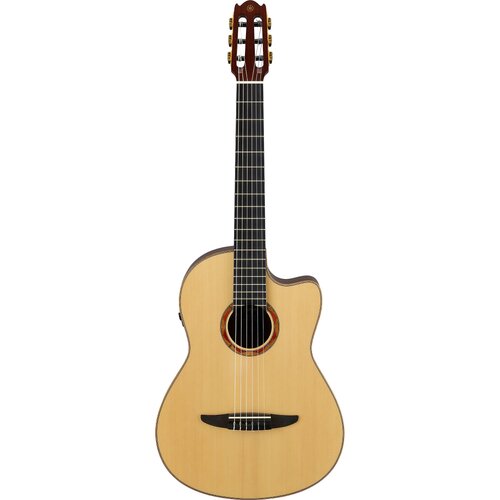

Yamaha NCX3

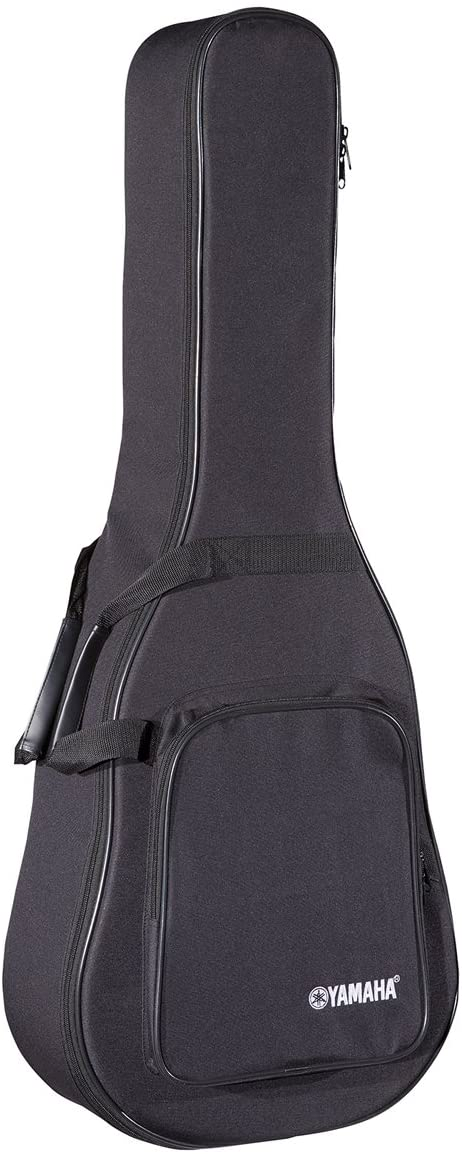

Please note: This guitar comes with a reinforced carry bag.

Nylon-String Guitars for Modern Players

The NX Series® features contemporary body styles and proprietary preamp and pickup systems developed with the needs of live performers in mind. NX Series guitars will appeal to both accomplished nylon-string players in search of superior amplified sound, and electric and steel-string players seeking to explore the beauty of nylon-string sounds.

Renowned Yamaha craftsmanship results in instruments of exceptional playability and tone—and four models incorporate the unparalleled Atmosfeel™ pickup system, which provides consistently superb sound regardless of volume level.

NCX3 acoustic-electric nylon-string guitar’s contemporary appearance, traditional neck profile, and Atmosfeel pickup system make it an excellent choice for accomplished nylon-string players seeking superior amplified sound.

• Contemporary style with traditional neck profile

• Unparalleled Atmosfeel pickup system

• Exceptional amplified sound at performance-level volumes

• Solid Sitka spruce top

• Solid walnut back and sides

• Walnut fingerboard

• Performance-friendly strap buttons

Style
With their sleek single-cutaway body shapes, appealing wood choices, colorful rosette patterns, and tasteful appointments, NX Series guitars are designed for contemporary players seeking the perfect combination of comfort and style.

Bracing
As a result of precise measurement and experimentation, several refinements were made that enhance low-frequency response without compromising durability. These changes were further refined to emphasize the natural characteristics of specific tonewoods, and optimized for each body silhouette.

Atmosfeel Pickup and Preamp System
The Yamaha Atmosfeel pickup system provides unparalleled amplified sound even at performance-level volumes. An undersaddle piezo pickup with individual string sensors captures only the mid and low-mid frequencies (eliminating the characteristic brittleness of piezo pickups), while a unique synthetic sheet transducer captures the highs, and an internal microphone captures overall body resonance and “airiness.”

Atmosfeel Controls
The simple and intuitive Atmosfeel preamp controls let you blend the microphone sound into the premixed pickup sound.

These simplified controls mean that guitarists are able to dial in the desired settings quickly and without the need to actually look at the controls.

SPECIFICATIONS

Body Color: NT
Body Shape: Yamaha CG Cutaway Shape
Scale Length: 650mm (25 9/16”)
Body Length: 490mm (19 5/16")
Total Length: 990mm (39")
Body Width: 370mm (14 9/16")
Body Depth: 94-100mm (3 11/16" - 3 15/16")
Nut Width: 52mm (2 1/16")
String Spacing: 11.8mm
Top Material: Solid Sitka Spruce​​​​​​​
Back Material: Solid Walnut​​​​​​​
Side Material: Solid Walnut​​​​​​​
Neck Material: African Mahogany​​​​​​​
Fingerboard Material: Ebony​​​​​​​
Fingerboard Radius: Flat​​​​​​​
Bridge Material: Ebony + Walnut​​​​​​​
Nut Material: Urea​​​​​​​
Saddle Material: Urea​​​​​​​
Bridge Pins: None​​​​​​​
Tuners: Gold w/ Matt Black Shaft (RM1388NB-B06)​​​​​​​
Body Binding: Mahogany + Black + White​​​​​​​
Soundhole Inlay: Abalone + Mahogany + Padauk​​​​​​​
Pickguard: None
Body Finish: Gloss​​​​​​​
Neck Finish: Matt​​​​​​​
Electronics: Atmosfeel (SYSTEM74N)​​​​​​​
Controls: Master Vol/Mic Blend/Treble EQ​​​​​​​
Connections: LINE OUT​​​​​​​
Strings: Medium (Yamaha S10)​​​​​​​
Accessories: Hex Wrench​​​​​​​
Case: Reinforced Carrying Bag (NCX)
