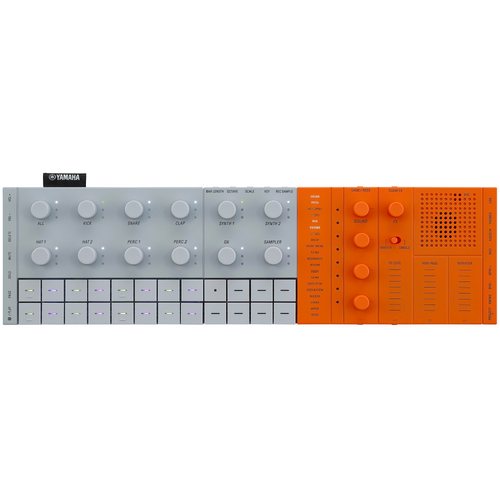

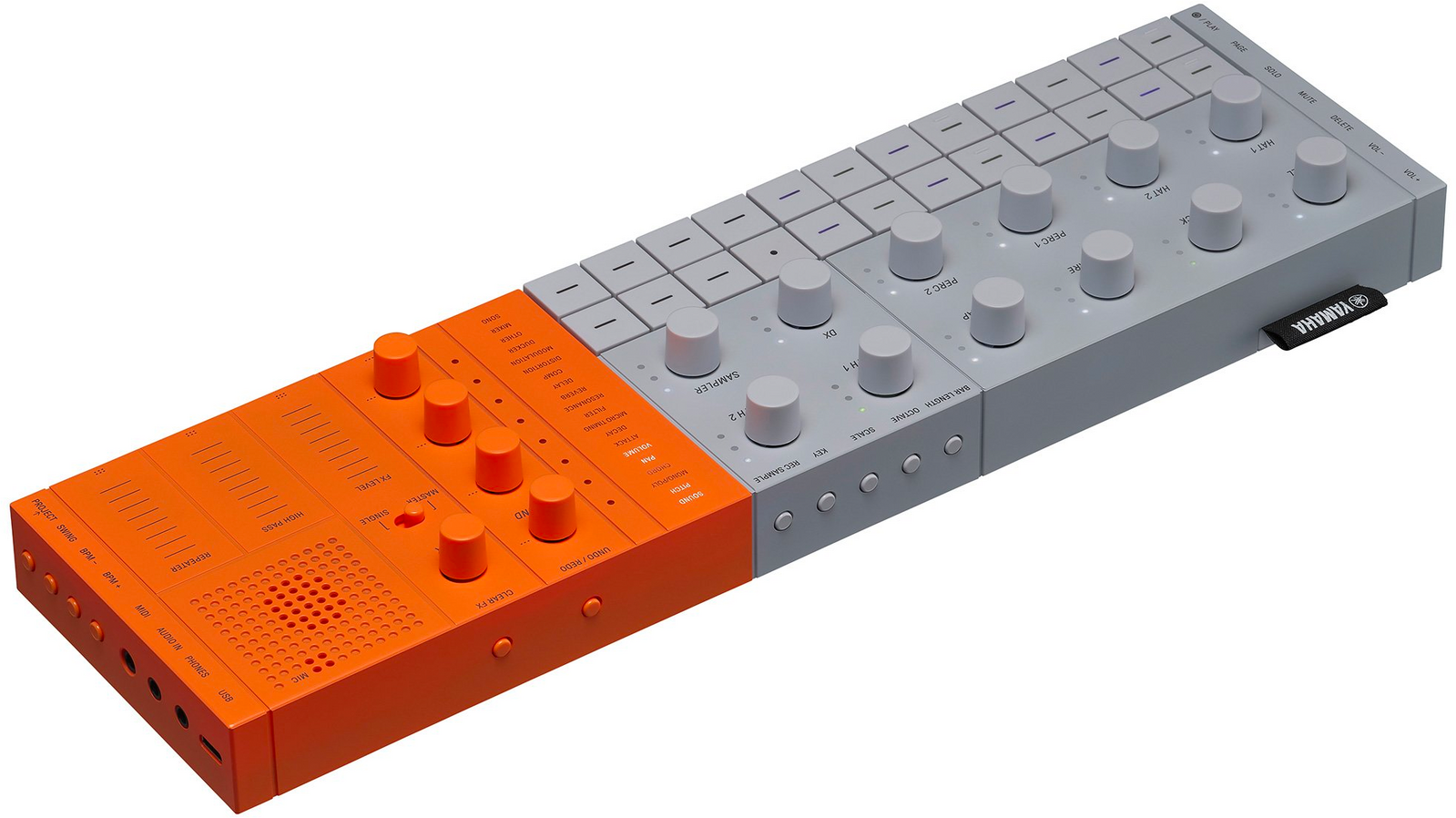

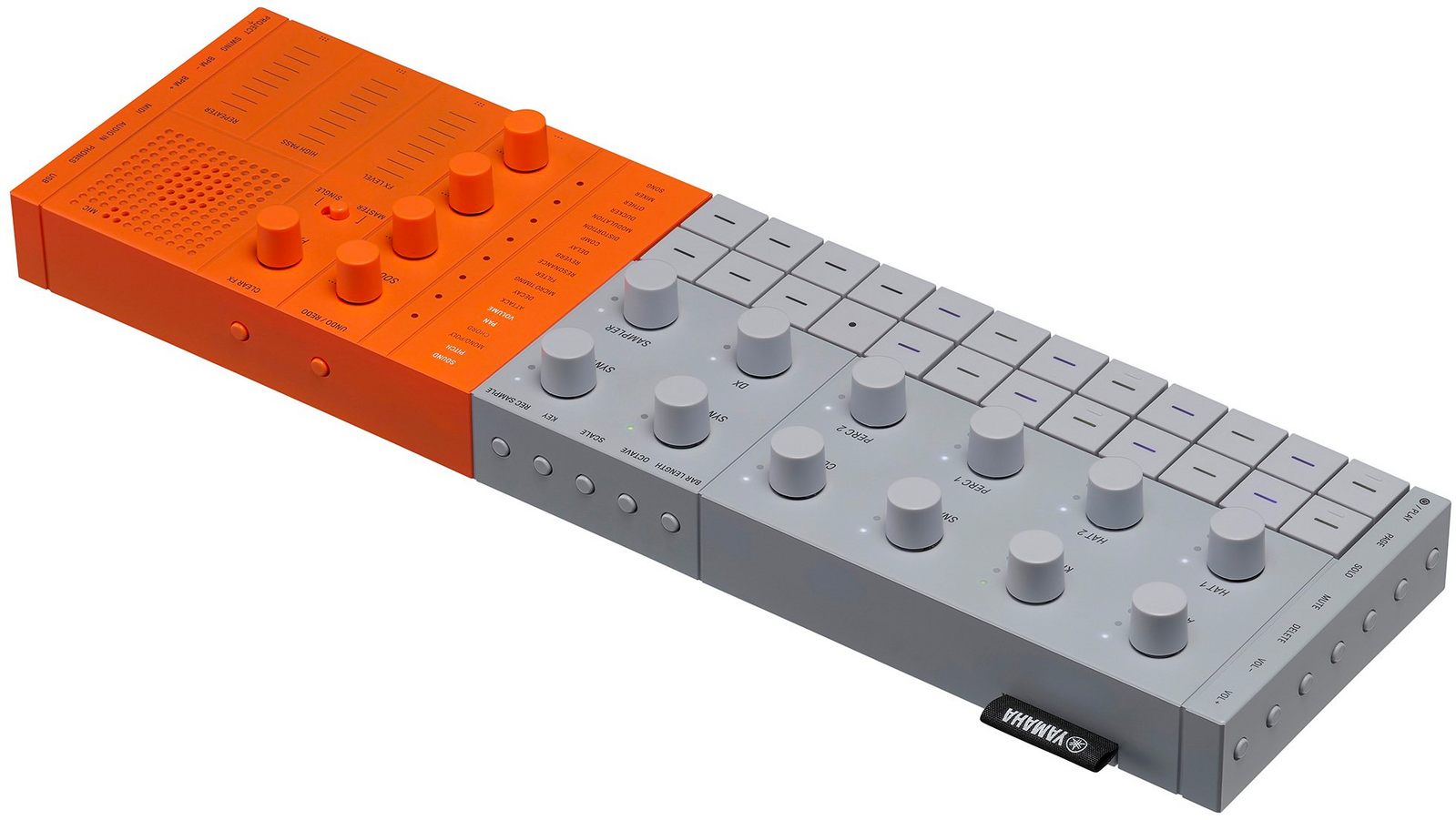

Yamaha SEQTRAK Orange

Unlock Your Creativity Anywhere

Introducing SEQTRAK, the ultimate music creation station that empowers you to capture, create and connect with fans – from anywhere you happen to be.

Unleash your creativity anywhere with SEQTRAK, the ultimate music creation station. Lightning-fast workflow allows you to capture ideas quickly, then create original music using its two versatile sound engines. When you’re ready, connect with fans using its powerful performance features and streamlined connectivity. SEQTRAK has everything you need. And more.

Capture
Capture ideas as quickly as they come.

All-In-One System
Drums. Synths. Sound design. Sequencing. All included. With an array of features, all loaded in a compact, lightweight design, SEQTRAK allows you to start producing right away – no matter where you are. It’s got everything you need. And more.

Lightning-Fast Workflow

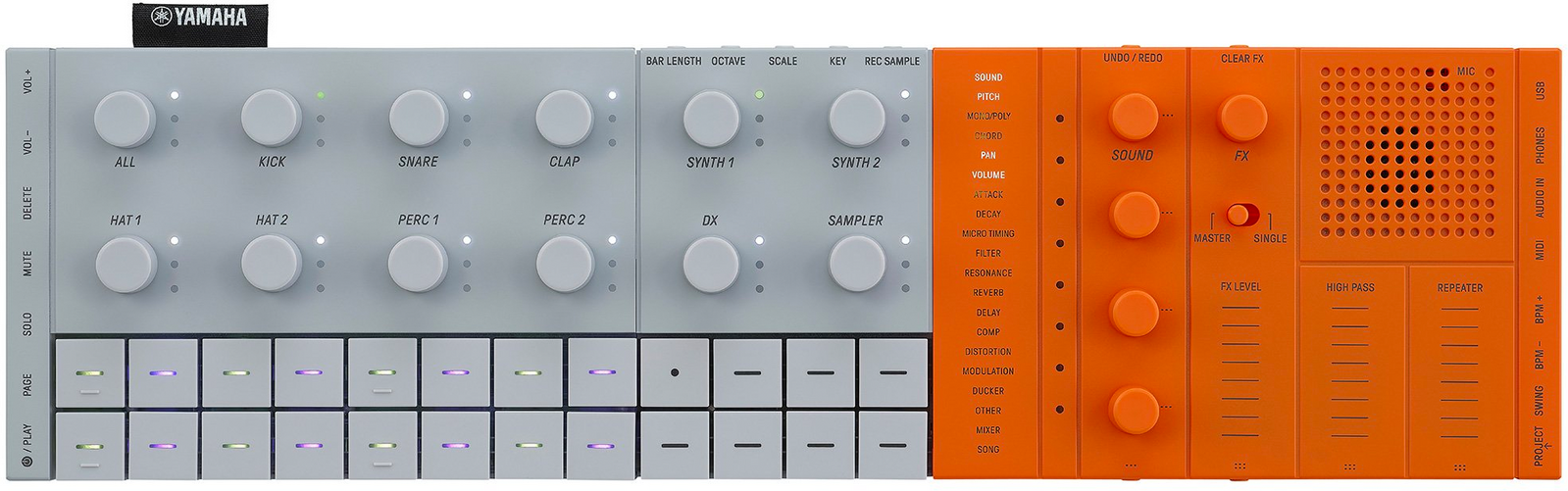

SEQTRAK makes capturing ideas simple with a clear 3-part user interface and real-time, hands-on controls. You’ll produce your music without menu-diving or waiting for boot times. Seize moments of inspiration and unleash your creativity in no time at all.

Extensive Sounds
SEQTRAK extensive library contains over 2,000 presets. You’ll find a vast collection of professionally crafted sounds – from rich pianos, to shimmering synths and thundering drums. More will be available with updates to the SEQTRAK app

Onboard Sampling
Capture your own unique sound samples effortlessly. SEQTRAK’s sampler offers seven sound slots and a variety of effects, allowing you to shape and transform your samples with ease. Say a phrase, tap a spoon, or record your favorite pet – then customize to create polished Tracks – all in high-quality 44.1 kHz/16-bit format.

Make Music On The Go
With its compact size, lightweight design, built-in speaker and microphone, as well as a rechargeable battery, you can take SEQTRAK anywhere – from the studio, to the stage, to the sofa. No need to worry about power outlets or tangled cables. Create, perform, and share your music – anytime, anywhere.

Create
Turn your ideas into original music.

Sound Engines + Effects
Double your creative potential with two versatile sound engines. AWM2 (Advanced Wave Memory 2) boasts an impressive 128-note polyphony and specializes in authentic sounds like pianos, strings, and guitars, while the four-operator FM engine produces stunning synth pads, leads, FM electric pianos, and more. Additionally, SEQTRAK includes powerful effects for a polished sound.

Sequencer
SEQTRAK’s advanced Sequencer allows for intuitive and seamless composition, arrangement, and playback of musical Tracks. With its user-friendly interface, you can easily navigate and control various parameters, such as tempo, swing , and track settings.

Sound Editing
Inside the included SEQTRAK app you’ll find an intuitive graphic user interface that lets you quickly dive into each Track and shape your sounds with precision. Editing includes a comprehensive set of functions, including envelopes, filters, and effect manipulation, enabling you to refine your compositions with meticulous detail.

Connect
Share your music. Connect with your fans.

Performance
Take center stage with the SEQTRAK’s powerful performance features. Create arrangements on-the-fly by combining Tracks and Patterns, remixing beats, and muting/unmuting Tracks in real-time. Add polish and sparkle to your music using global effects – then control these sounds live while you perform.

Visualizer
The SEQTRAK app has a Visualizer mode that transforms your music into a captivating visual experience. With this free performance and production feature, you’ll bring your music to life with stunning visuals that sync perfectly with your songs. Customize and tweak Patterns, motion effects and more, however you see fit. There’s even an Augmented Reality (AR) mode that allows you to integrate 3D virtual objects into real-world live videos.

Connectivity

• Bluetooth MIDI: Connect wirelessly to the SEQTRAK App & Visualizer, enhancing convenience and mobility.

• Wi-Fi: Transfer WAV samples wirelessly, eliminating the need for cables.

• MIDI In/Out: Connect to other hardware synths, MIDI controllers, or a computer; expanding your sound options and enabling integration with external devices.

• USB-C: Establish a single cable connection for MIDI and stereo audio to a computer simplifying setup and streamlining workflow.

• AUX In: Connect to drum machines, synths, and other external sources, expanding and diversifying your sound.

*Wireless functions may not be available depending on your area. Check with your Yamaha dealer. Windows PC cannot use wireless functions.

SPECIFICATIONS

Tone Generator
Tone Generator: AWM2, FM: 4 operators
Maximum Polyphony: AWM2: 128, FM: 8
Wave: Preset: 800 MB (when converted to 16-bit linear format), User: 500 MB
Effects: Reverb × 12 types, Delay × 9 types, Master Effect × 85 types, Single Effect × 85 types, Master EQ 5 bands, LP-HP filters for each track

Tracks
Track Types: DRUM, SYNTH, DX, SAMPLER
Number of Tracks: 11

Sounds
Number of Sounds: Preset Sound: 2032 Preset Sampler Sound: 392 *Can be added from the SEQTRAK app

Project
Number of Projects: 8 *Can be saved to the SEQTRAK app

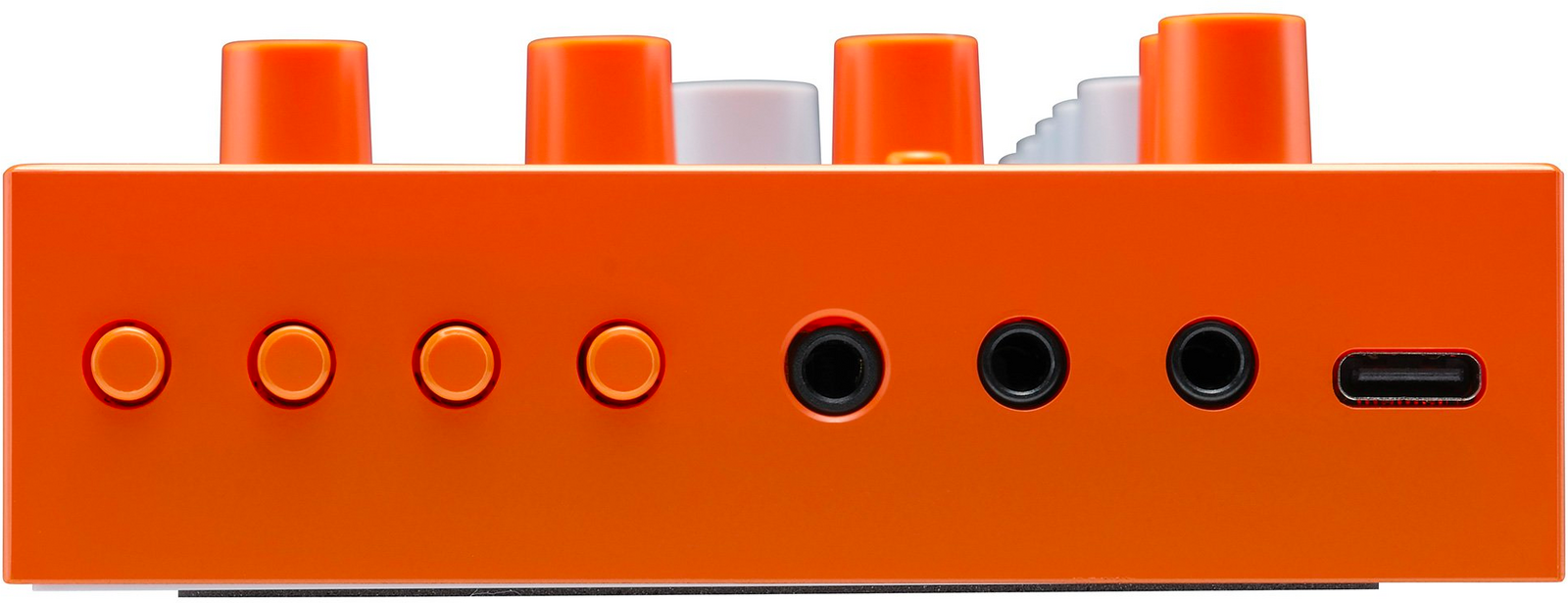

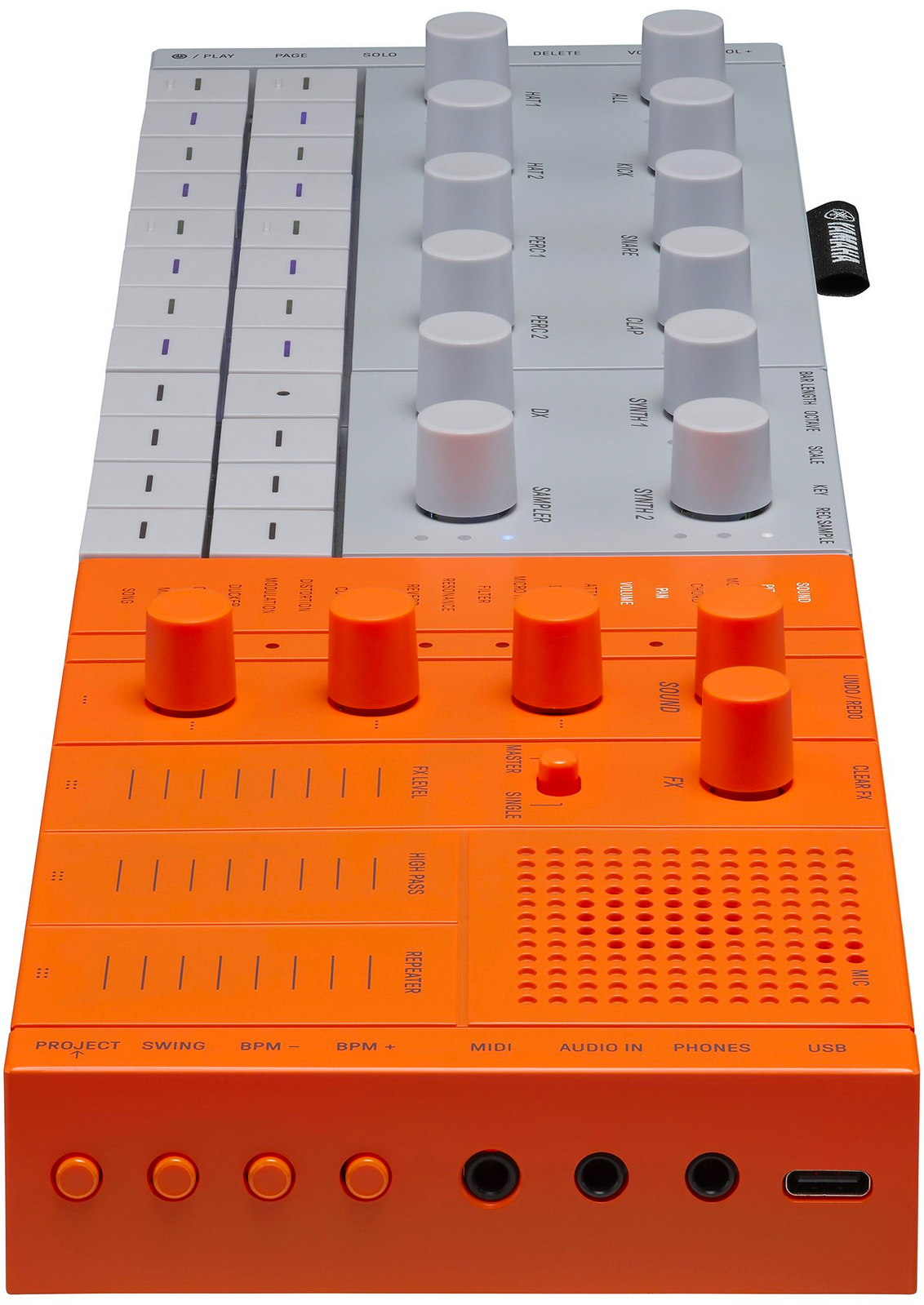

Connectivity
USB: USB Type-C (power, MIDI to host, MIDI to device, audio)
Headphones: [PHONES] (stereo mini jack)
A/D INPUT: [AUDIO IN] (stereo mini jack)
MIDI: [MIDI] IN/OUT *Only included cable can be used.

Functions
USB audio interface: [Sampling Frequency = 44.1 kHz (quantization bit depth: 24-bit)] Input: 2 channels (stereo 1 channel), Output: 2 channels (stereo 1 channel)
Bluetooth: MIDI transmission/reception (wireless capability varies by country)
Wi-Fi: Data transmission/reception with dedicated app (wireless capability varies by country) The highest SAR value: 1.11 W/kg

Sound System
Speakers: 2.3 cm, 1 W
Microphone: Internal MEMS microphone

Power Supply
Power Source: Rechargeable lithium-ion battery (2,100 mAh, 7.6 Wh) USB Power Delivery (PD) (Output voltage: 4.8 V to 5.2 V, Output current: 1.5 A or greater)
Power Consumption: 6 W
Battery life for continuous use: 3-4 hours
Battery charge time: 3-5 hours

Dimensions
Width: 343 mm (13-1/2")
Height: 38 mm (1-1/2")
Depth: 97 mm (3-13/16")
Weight: 0.5 kg (1 lb 2 oz)
Packing Box
Width: 420 mm (16-9/16")
Height: 90 mm (3-9/16")
Depth: 165 mm (6-1/2")

Other
Included accessories: USB-C to USB-C cable, dedicated MIDI Converter Cable, Quick Operation Guide, Safety Guide
Dedicated Software: SEQTRAK app
Sequencer Block
Maximum Steps: 128

*For Android devices, the USB audio interface function may not work properly if an application other than the SEQTRAK app is used.
