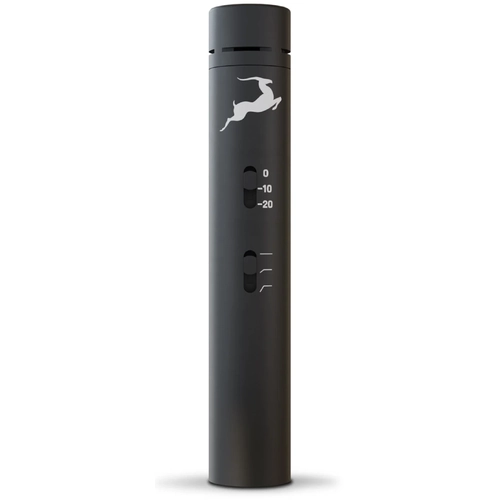

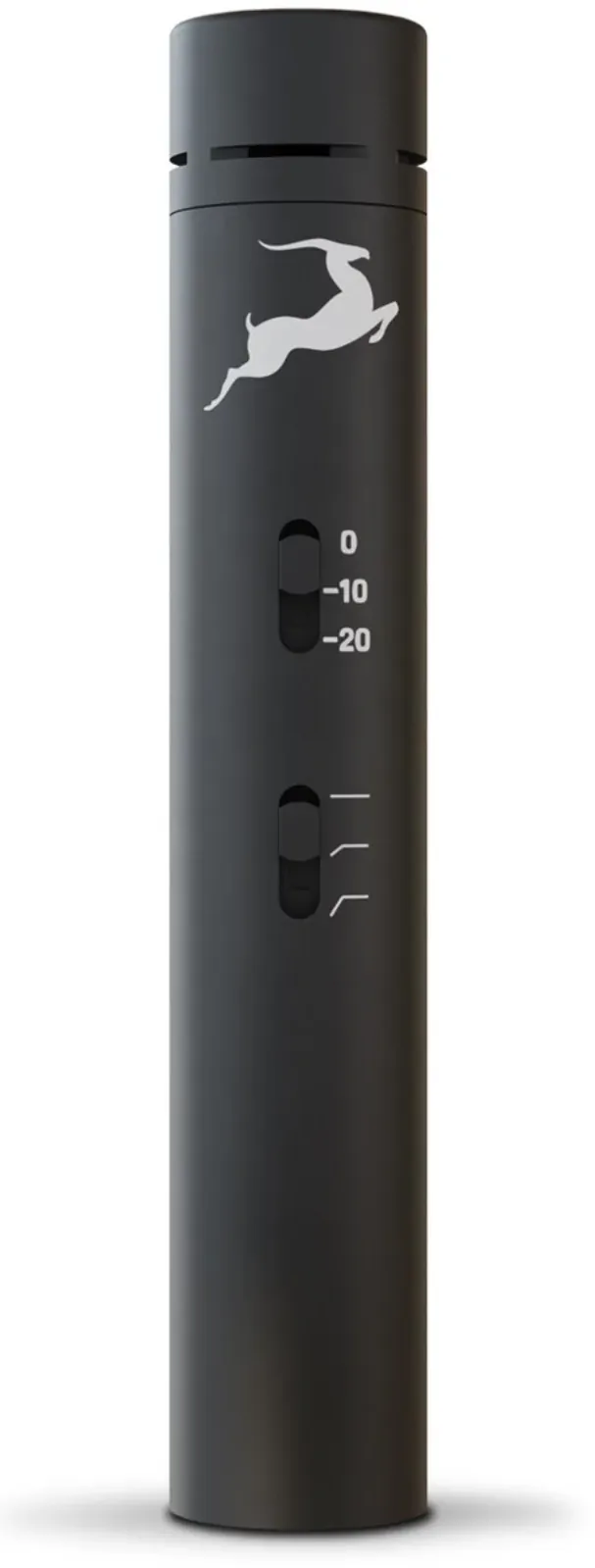

Antelope Audio Edge Note

One mic. 13 emulations. You choose.

Capture the full picture as loud as you can
Don’t let its small size fool you: The Edge Note modeling microphone is the perfect studio solution for capturing a wide range of musical instruments at incredible volumes. With 13 classic mic emulations, it’s one of the most flexible mic modeling options for instrumentalists, recording engineers, and studio owners alike.

Sound Quality - Loudness is no obstacle
With an astonishing SPL of 146 dB, the Edge Note has been engineered to provide clear recordings for even the loudest sources. From drum solos to trumpet trills, this small diaphragm condenser mic goes hard without clipping the converter.

Microphone Emulations - 13 iconic studio microphones in one body
This is more than a small condenser mic: it’s a 13 digital recreations of classic vintage microphones.
We’ve assembled a diverse collection of revered models that were hand-selected as the top picks for many award-winning engineers and producers. The accuracy of our mic emulations keeps the frequency response and color of the originals.

High-pass filter
This pencil mic comes with a high-pass filter with two steps at 75Hz and 115Hz. The result? Reduced lower frequencies and a cleaner, tighter low-end recording.

Pad Attenuator
The Edge Note’s pad allows you to reduce the input signal with -10dB or -20dB. You’ll keep the detail and realism – without clipping or distortion.

SPECIFICATIONS

Capsule
Capsule: Single Capsule
Diaphragm: Small condenser
Diaphragm diameter: 16.1mm
Polar Pattern: Cardioid

Sound
Freq. response: 20HZ ~ 20kHZ
Self-noise: 25dB(A)
SNR: 69dB(A)
Sensitivity: -42dB | 8mV/Pa (+/-3dB

Hardware
Power Requirements: 48V DC phantom power
Output impedance: 65 Ohms @ 1kHz
Output Connector: 3-pin male XLR
Output Channels: Single
Dimensions (mic body): 4.5″ x 0.8″ (114mm x 20mm)

What's in the box?

• Breakout Cable: Not Included

• Mount: Shock mount

• Getting Started leaflet
