Audio-Technica AT2041SP

Studio miking essentials
The AT2041SP Studio Pack offers two versatile 20 Series condenser microphones for use in home, project and commercial studios. Equally at home with digital and analog recording devices, the two included studio condensers deliver remarkable specs and superior build. The critically acclaimed AT2020 side-address condenser is ideal for vocal and instrument applications, while the new AT2021 small-diaphragm condenser is a natural for acoustic instruments, overheads, hi-hat and piano.

Audio-Technica’s stringent quality/consistency standards set both microphones apart from other mics in their class. Each offers a wide dynamic range and handles high SPLs with ease. An innovative pivoting stand mount is included along with a microphone clip and protective pouches.

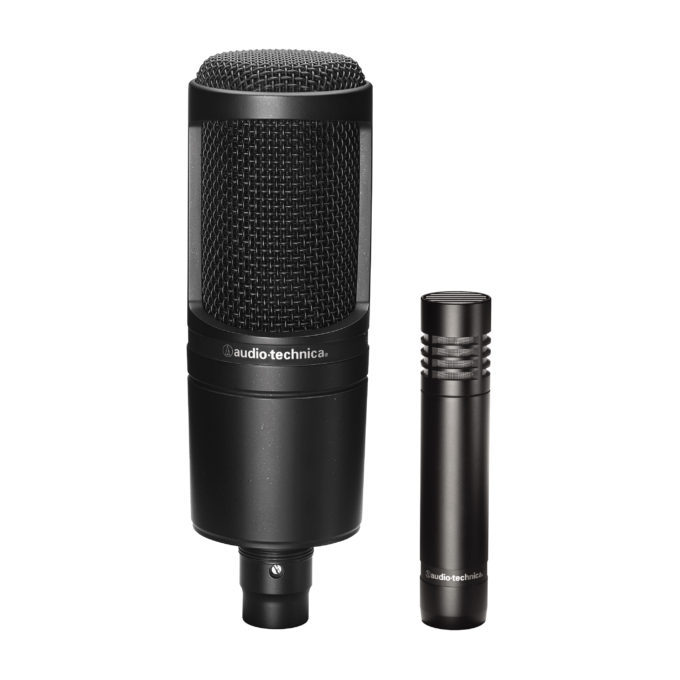

AT2041SP Studio Pack includes:

• AT2020 Side-address cardioid condenser microphone

• AT2021 Small-diaphragm cardioid condenser microphone

• Pivoting, threaded stand mount for the AT2020

• Professional stand clamp for the AT2021

• Two protective pouches

FEATURES

• The price/performance standard in side-address studio condenser microphone technology (*AT2020*)

•  Ideal for project/home-studio applications (*AT2020*)

•  High SPL handling and wide dynamic range provide unmatched versatility (*AT2020*)

•  Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response (*AT2020*)

•  Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source (*AT2020*)

•  Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone (*AT2020*)

•  Ideal for acoustic guitar, overheads, piano and group vocals (*AT2021*)

•  Condenser design for studio-quality vocal and instrument applications (*AT2021*)

•  Excels in high-SPL applications (*AT2021*)

•  Extended response for smooth, natural sonic characteristics (*AT2021*)

•  Low-mass element for superb transient response (*AT2021*)

•  Corrosion-resistant contacts from gold-plated XLRM-type connector (*AT2021*)

•  Rugged design and construction for reliable performance (*AT2021*)

•  Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source (*AT2021*)

SPECIFICATIONS

AT2020 Side-address cardioid condenser microphone

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 20-20,000 Hz

Open Circuit Sensitivity: –37 dB (14.1 mV) re 1V at 1 Pa

Impedance: 100 ohms

Maximum Input Sound Level: 144 dB SPL, 1 kHz at 1% T.H.D.

Noise: 20 dB SPL

Dynamic Range (typical): 124 dB, 1 kHz at Max SPL

Signal-To-Noise Ratio: 74 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 2 mA typical

Weight: 345g

Dimensions: 162mm long, 52mm maximum body diameter

Output Connector: Integral 3-pin XLRM-type

Accessories Furnished: Stand mount for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch

AT2021 Small-diaphragm cardioid condenser microphone

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 30-20,000 Hz

Open Circuit Sensitivity: –39 dB (11.2 mV) re 1V at 1 Pa

Impedance: 250 ohms

Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.

Noise: 19 dB SPL

Dynamic Range (typical): 126 dB, 1 kHz at Max SPL

Signal-To-Noise-Ratio: 75 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 2 mA typical

Weight: 83g

Dimensions: 101.5mm long, 21mm maximum body diameter

Output Connector: Integral 3-pin XLRM-type

Accessories Furnished: Stand clamp; soft protective pouch
