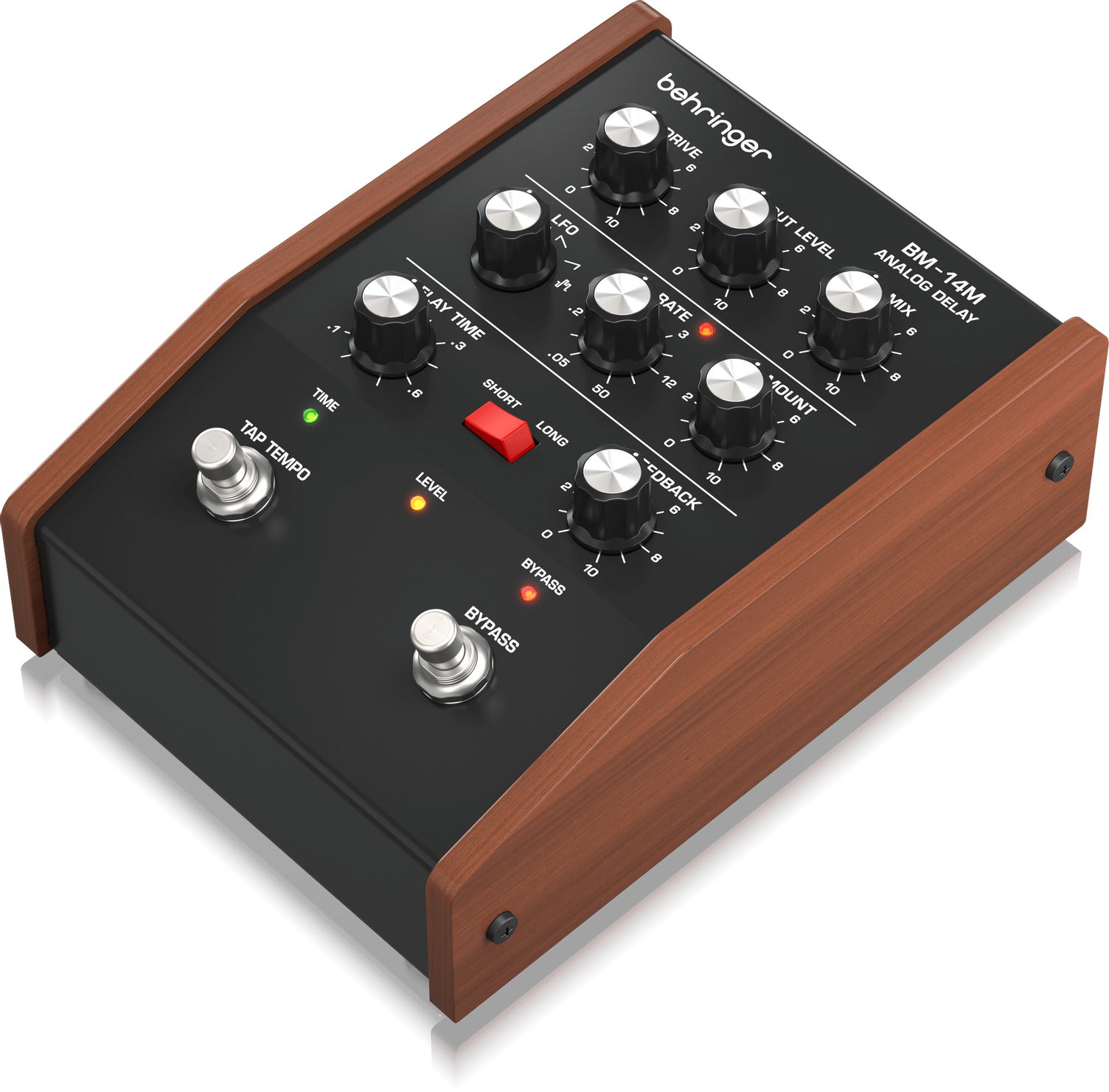

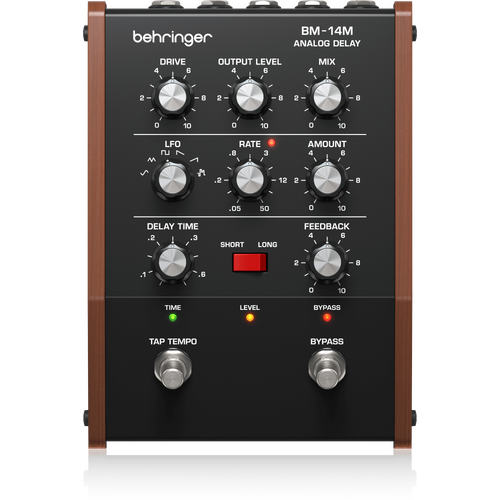

Behringer BM-14M

Vintage Analog BBD Delay Pedal with Max. 1000 ms Delay Time and MIDI Control

The BM-14M brings a classic delay device back to life, celebrated for its unmistakable warmth and high level of control. Known for sparking creativity, this reborn design delivers rich analog tone while pushing you into uncharted territory. Its hands on approach invites you to sculpt echoes that can move from subtle depth to radical soundscapes, perfect for those who thrive on inspiration through exploration.

FEATURES

• Classic, warm, and rich analog delay with up to 1,000 ms of delay time

• Authentic recreation of the Moog MF-104Z from the '90s

• Feedback control for repeats

• Delay Time control for precise timing

• MIDI control for ultimate control and flexibility

• Mix control for blending between dry and delayed signals

• Drive control for input gain

• Spillover mode for smooth transitions between delay on/of

• Expression pedal input for real-time control

• Compact and rugged design for easy transport and onstage use

• Combine with other pedals for even more creative possibilities

Deep Control and Expansive Connectivity
This isn’t just a delay pedal, it’s a laboratory for sonic experimentation. With CV and expression inputs for Feedback, Time, LFO Rate, and LFO Amount, plus MIDI In for precise parameter control, BM-14M gives you unmatched flexibility. Dedicated audio outputs like DELAY OUT let you isolate the wet signal, while the FB Insert unlocks new routing possibilities by sending and returning the delay path into other effects. The result: endless ways to push delay beyond the expected.

Easy Integration
The BM-14M is made for creators chasing texture, movement, and analog depth across any setup. Whether paired with guitars, synths, drum machines, or modular rigs, it adapts seamlessly and rewards experimentation. Wherever creativity leads, the BM-14M is your tool for shaping truly unique sonic journeys.

SPECIFICATIONS

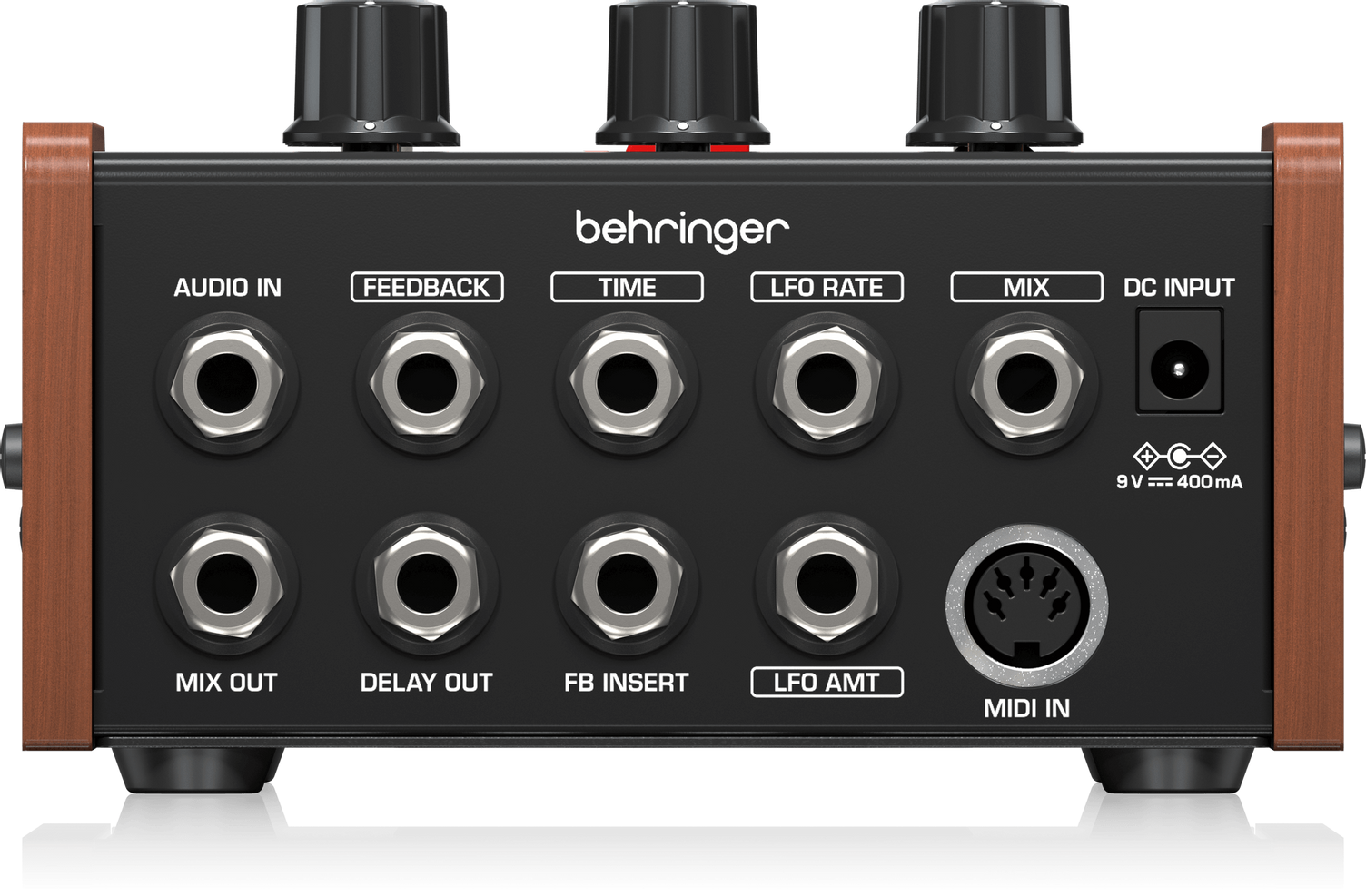

Audio Connections

Audio in
Connector: 1 x 1/4" TS, unbalanced
Impedance: 1 MΩ

Mix out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 600 Ω

Delay out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 600 Ω

FB insert (send / return)
Connector: 1 x 1/4" TRS, unbalanced
Output impedance: 440 Ω
Input impedance: 140 kΩ

Control Connections

Feedback
Connector: 1 x 1/4" TRS
Impedance: 180 kΩ, unbalanced
CV input range: 0 V to +5 V

Time
Connector: 1 x 1/4" TRS
Impedance: 34 kΩ, unbalanced
CV input range: 0 V to +5 V

LFO rate
Connector: 1 x 1/4" TRS
Impedance: 34 kΩ, unbalanced
CV input range: 0 V to +5 V

LFO amt
Connector: 1 x 1/4" TRS
Impedance: 34 kΩ, unbalanced
CV input range: 0 V to +5 V

Mix
Connector: 1 x 1/4" TRS
Impedance: 180 kΩ, unbalanced
CV input range: 0 V to +5 V
MIDI in: 2 x 5-pin DIN, 16 channels

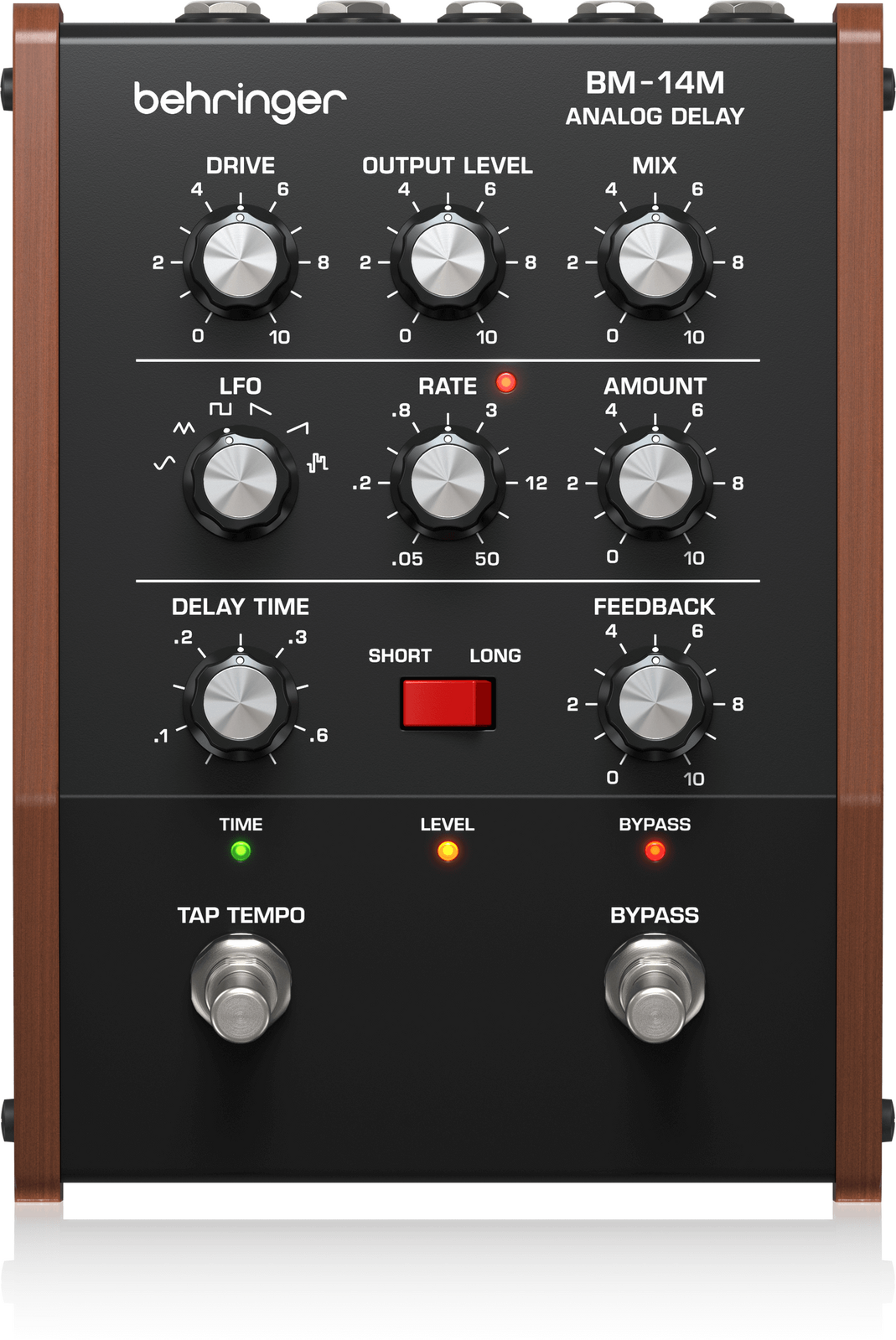

Controls
Drive: 1 x rotary knob
Output level: 1 x rotary knob
Mix: 1 x rotary knob
LFO: 1 x rotary knob
Rate: 1 x rotary knob
Amount: 1 x rotary knob
Delay time: 1 x rotary knob
Short / long: 1 x rocker switch
Feedback: 1 x rotary knob
Tap tempo: 1 x footswitch
Bypass: 1 x footswitch

System
Frequency response: 20 Hz to 20 kHz(+0 / -2 dB)
Dynamic range: > 83 dB
Signal-to-noise ratio: > 73 dB
Overall gain: +33 Db

Power Supply / Voltage
Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
Power consumption: 1.8 W

Dimensions / Weight
Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
Weight: 1,100 g (38.8 oz)
