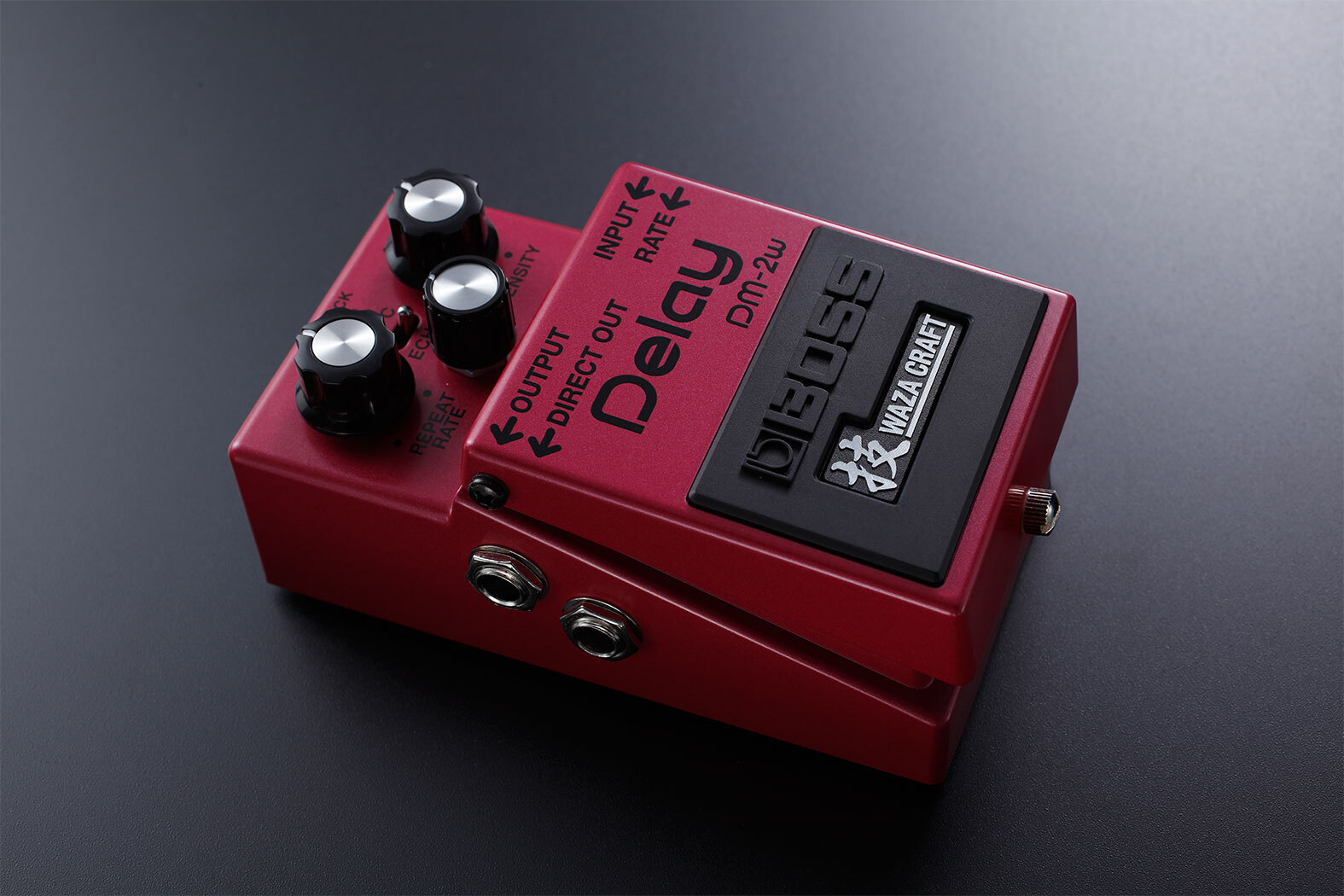

BOSS DM-2W Delay Waza Craft

NOW, THE LEGENDARY ANALOG DELAY IS BACK WITH A MODERN EDGE

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles. Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.

FEATURES

• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience

• True reproduction of the vintage DM-2 Delay sound

• Premium all-analog circuit with BBD (bucket brigade) delay line

• Standard mode for authentic DM-2 tone with 20-300 ms delay time

• Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time

• Expression pedal input for foot control of delay time

• Two output jacks allow separate output of delay and direct sounds

• BOSS five-year warranty

WAZA CRAFT : The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones
using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this
enthusiastic spirit, we are pleased to introduce the new Waza Craft series. In Japan, “Waza” is the term for
art and technique, and these special edition pedals proudly carry the Waza symbol to represent the
pinnacle of BOSS design and craftsmanship. Being made in Japan, the
Waza Craft series brings you exceptional tone and touch response through carefully-selected analog
components, refined circuitry, and meticulous attention to detail.

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Delay Time:

• Standard Mode: 20 ms to 300 ms

• Custom Mode: 40 ms to 800 ms

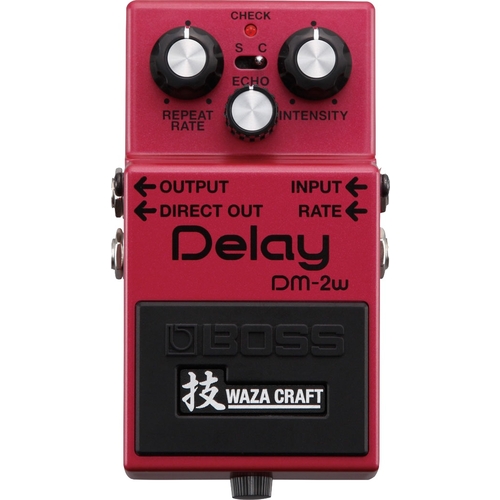

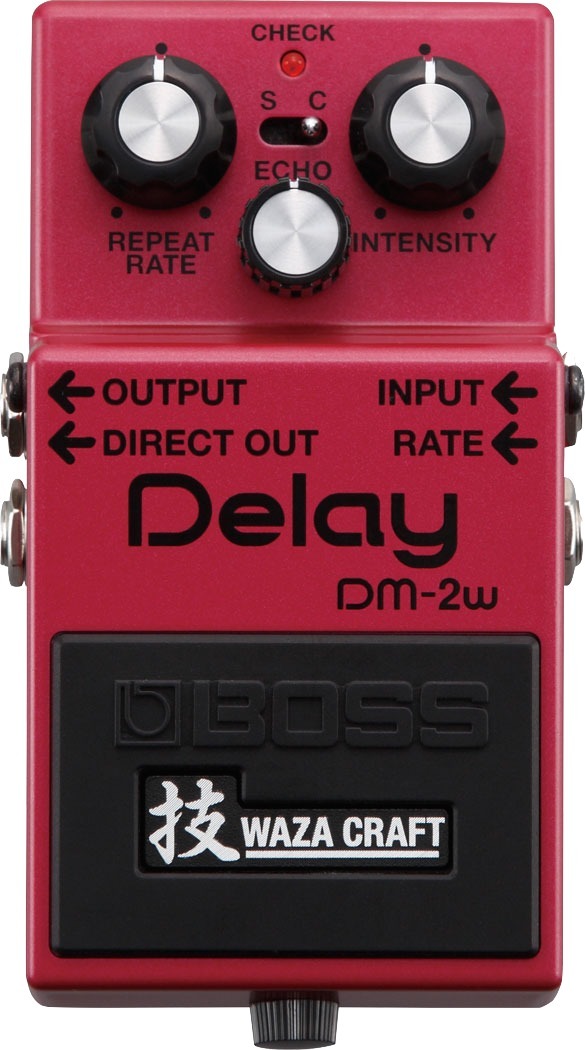

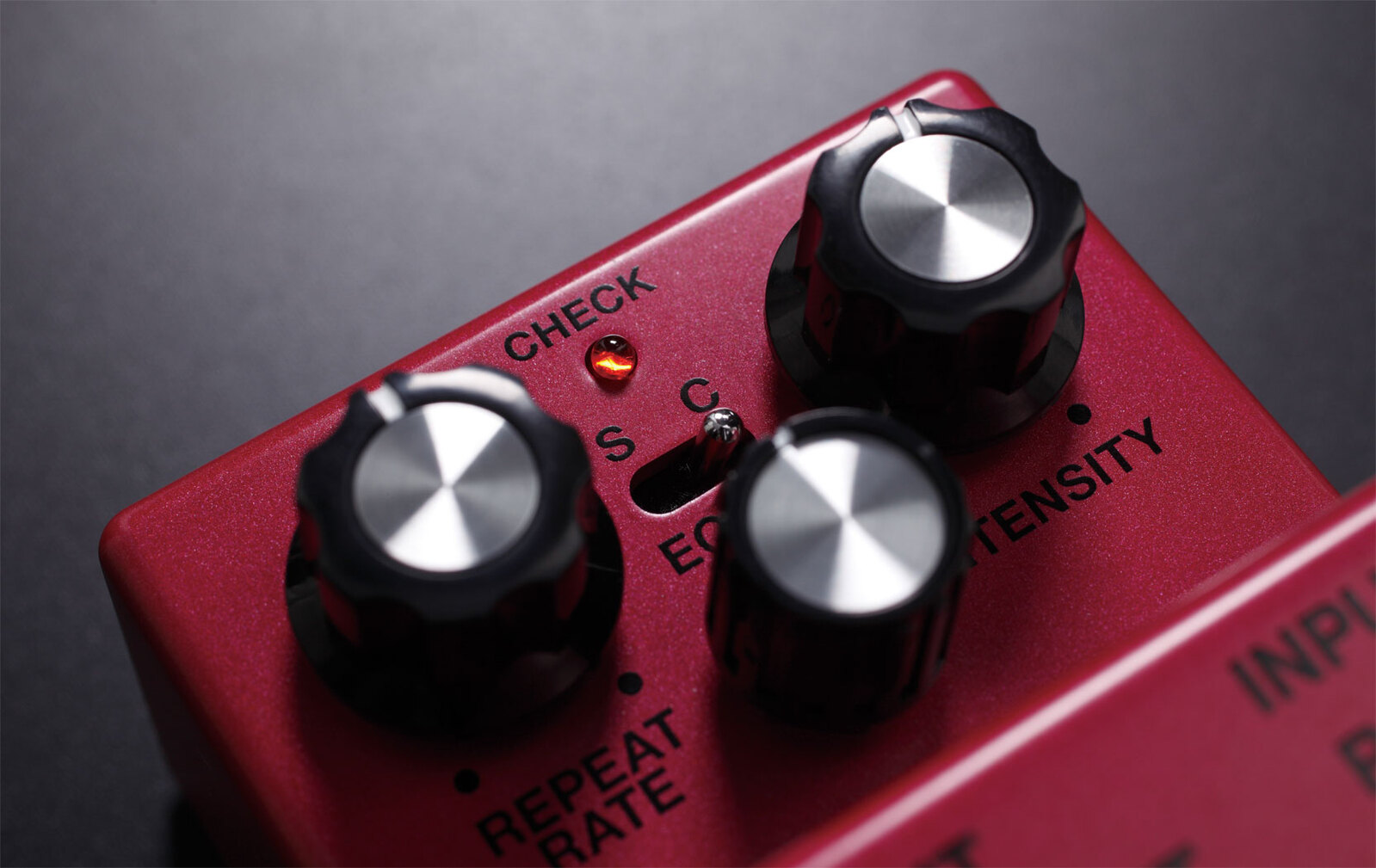

Controls:

• Pedal switch

• REPEAT RATE knob

• INTENSITY knob

• ECHO knob

• Mode switch

Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT jack: 1/4-inch phone type

• DIRECT OUT jack: 1/4-inch phone type

• RATE jack: 1/4-inch TRS phone type

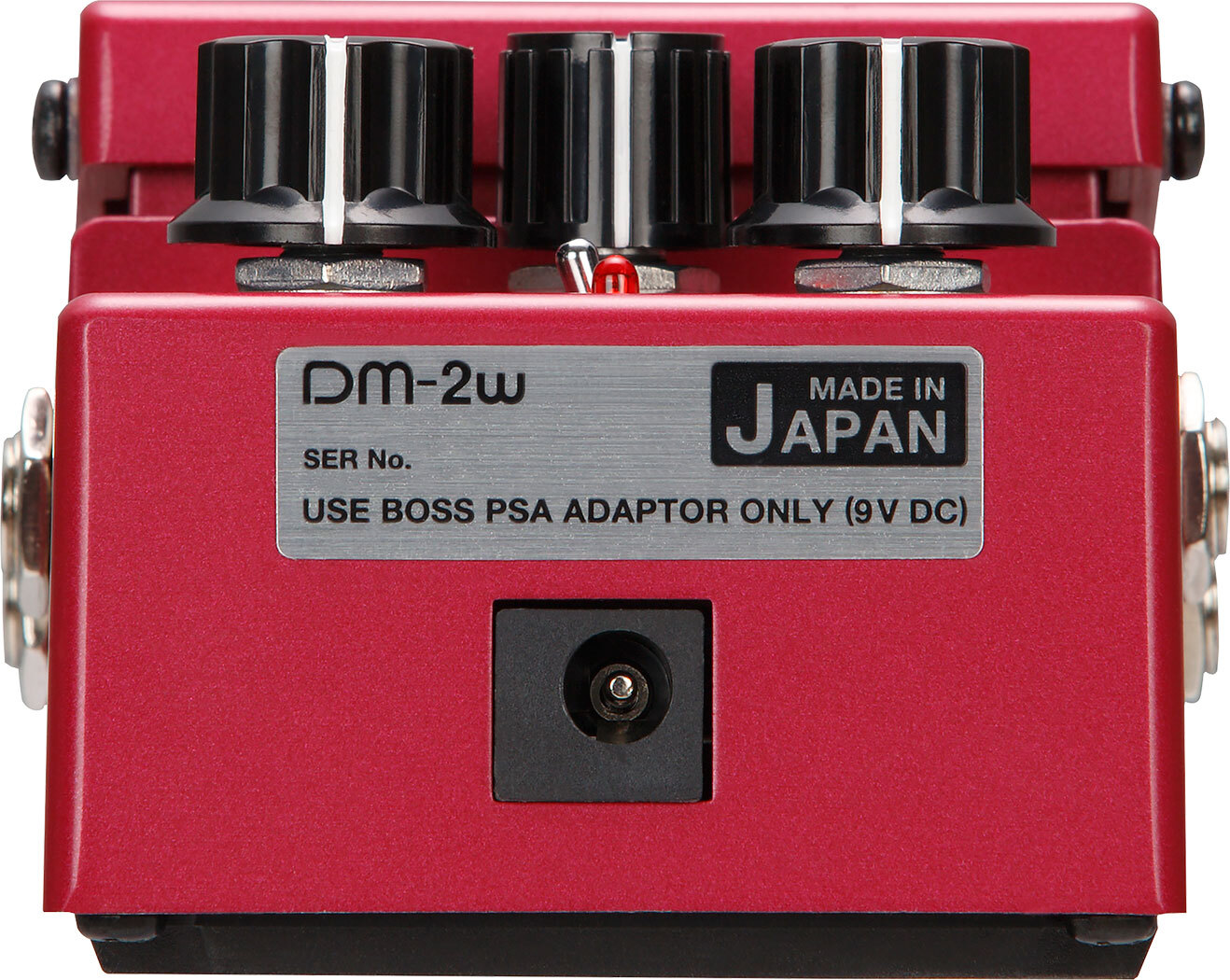

• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw: 35 mA
Expected battery life under continuous use: Alkaline: Approx. 15 hours
Carbon: Approx. 5 hours
* These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

• Alkaline battery (9 V, 6LR61)

Options (sold separately):

• AC adaptor: PSA series

• Expression pedal: Roland EV-5

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight: 460 g, 1 lb 1 oz

* 0 dBu = 0.775 Vrms
