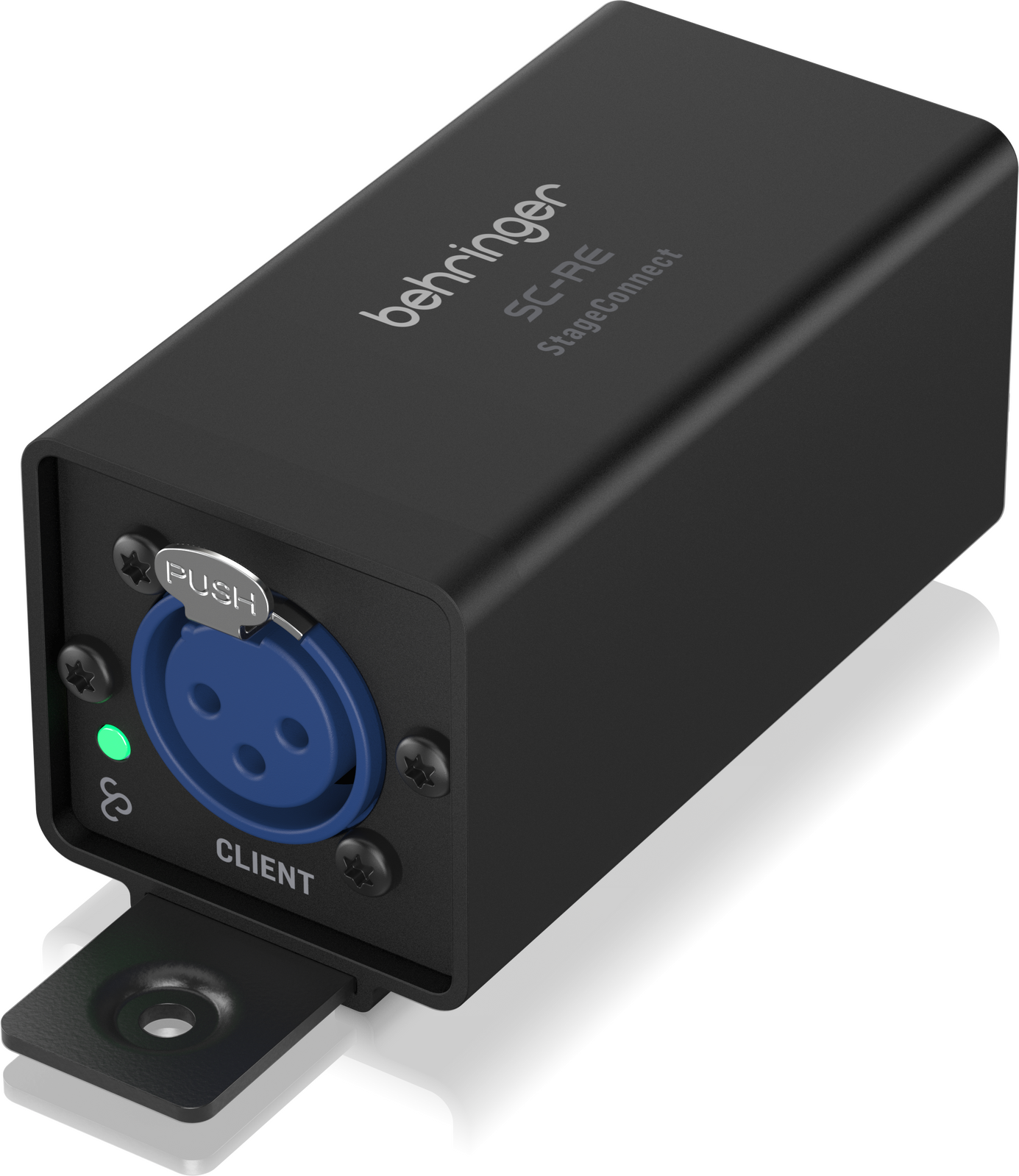

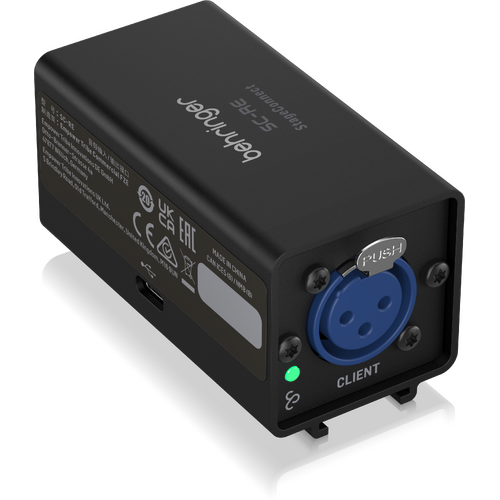

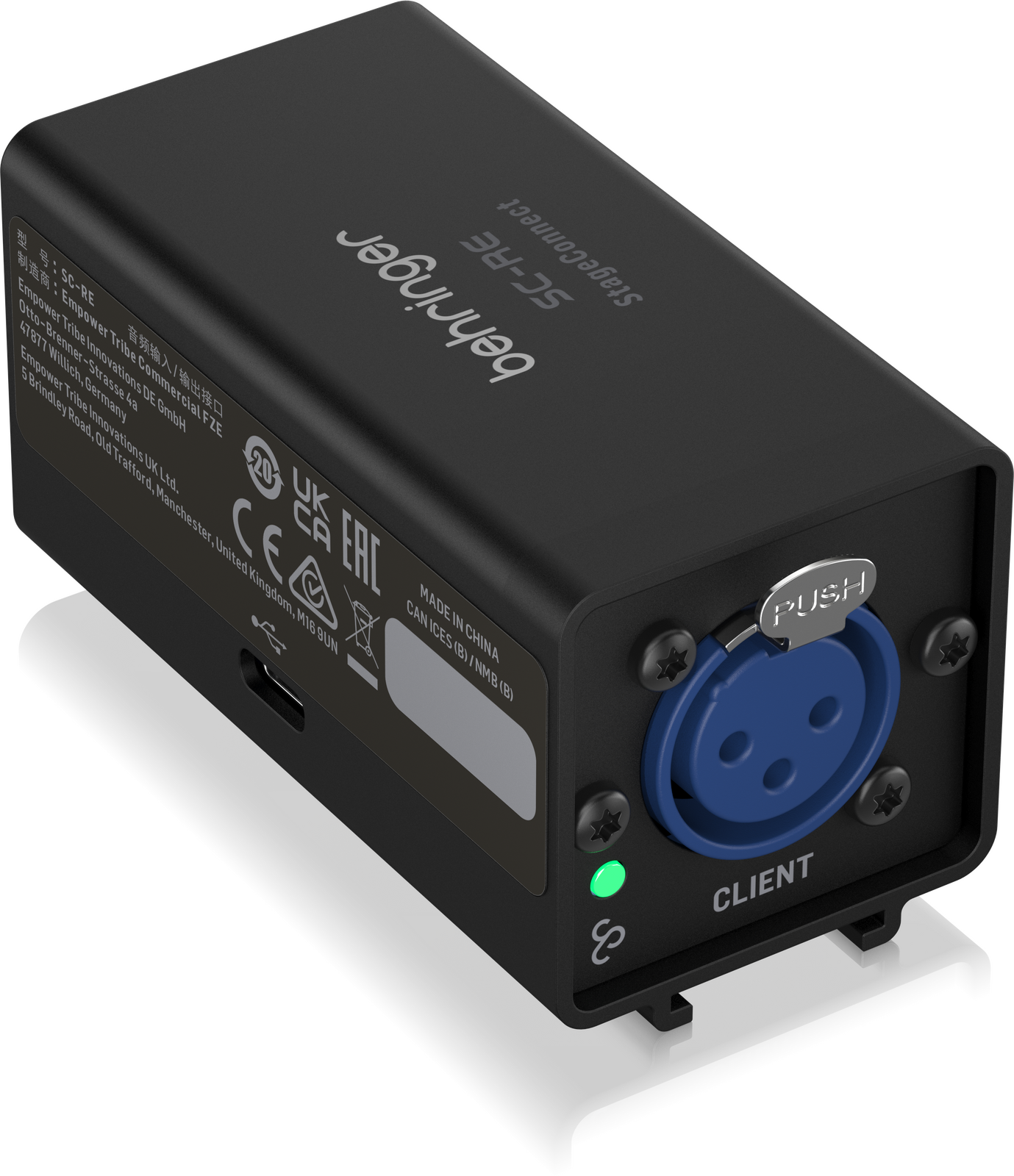

Behringer SC-RE StageConnect Range Extender

The Behringer SC‑RE StageConnect Range Extender is a compact and powerful solution for expanding your StageConnect setup, doubling the maximum transmission distance from 40 to 80 metres over standard XLR or DMX cable. Designed for professional touring and fixed installations, it supports bi‑directional transmission of up to 32 channels of pristine 24‑bit audio at 44.1/48 kHz with ultra‑low, sub‑millisecond latency. Audio, control data, and up to 12 VDC / 18 W of remote power are all carried over a single 3‑pin XLR connection, simplifying cabling and stage layouts. Housed in an ultra‑slim enclosure barely larger than two XLR connectors, the SC‑RE consumes just 0.5 W of power and includes a metal mounting bracket for easy integration into racks, touring cases, or permanent installations—making it a reliable and space‑saving tool for extending your StageConnect network.

FEATURES

• Doubles the maximum transmission range of StageConnect over XLR/DMX cable from 40 to 80 m

• Bi-directional audio transmission for up to 32 channels

• Control data and 12 VDC / 18 W remote power sent over the same XLR or DMX cable

• StageConnect 32-channel bidirectional audio transmission with sub-millisecond latency at 44.1/48 kHz and 24 bits over standard 3-pin XLR DMX cable, or microphone cable for short distances

• Slim design, just over the size of 2 XLR connectors

• Includes metal bracket for mounting in touring cases or fixed installations

SPECIFICATIONS

Processing
StageConnect Bus: 32 channels, 44.1/48 kHz, 24-bit PCM audio
I/O Latency: 0.1 ms

Connectors:

• StageConnect

• Shielded bal. 110 Ω DMX cable

• Max 40 meters

USB: Type C (firmware update only)

Power
Power Supply:

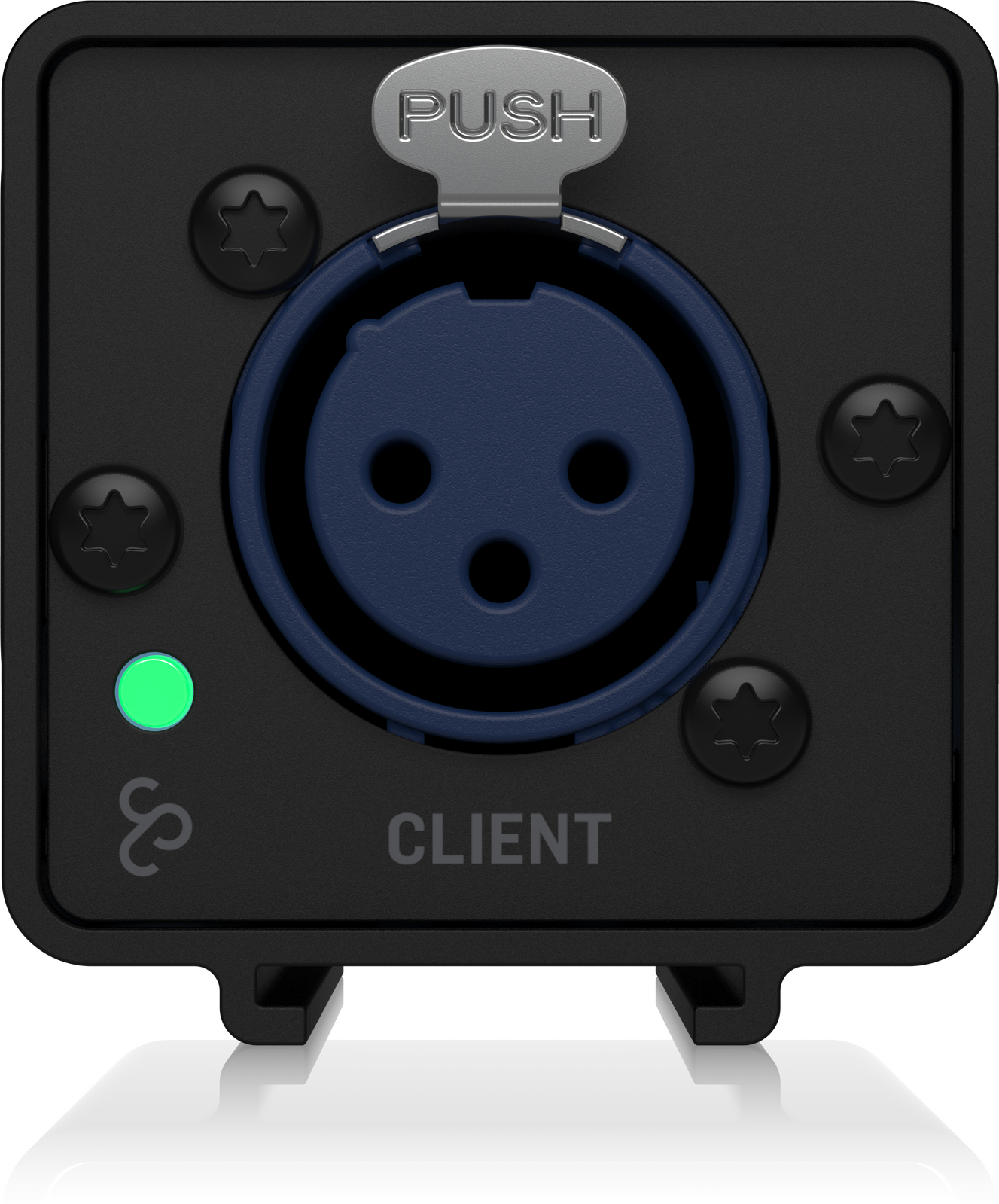

• Remote power input via SC Client (female)

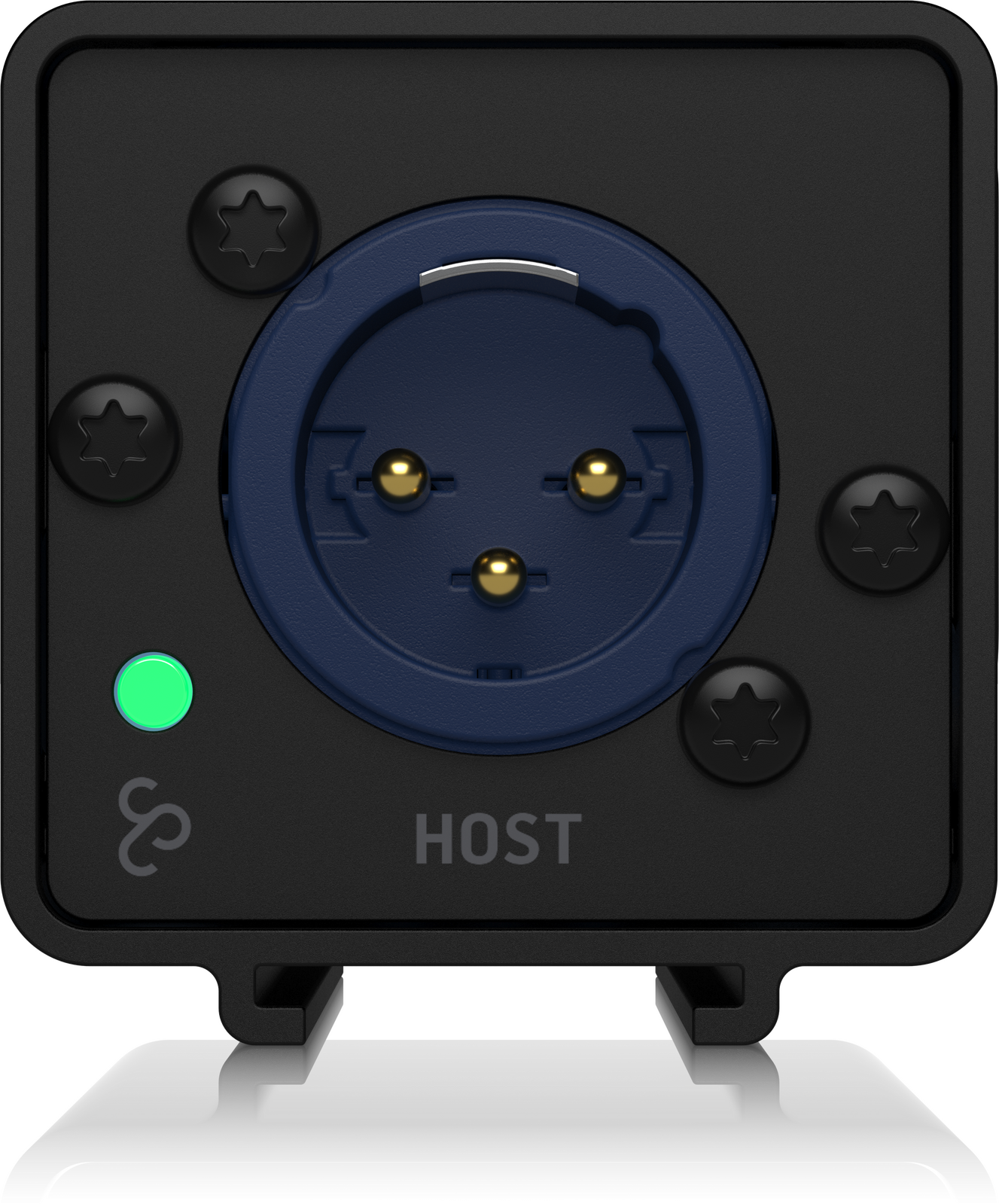

• Remote power output via SC Host (male)

Power Consumption: 0.5 W

Physical
Dimensions: 78 x 40 x 42 mm
Weight: 0.1 kg
