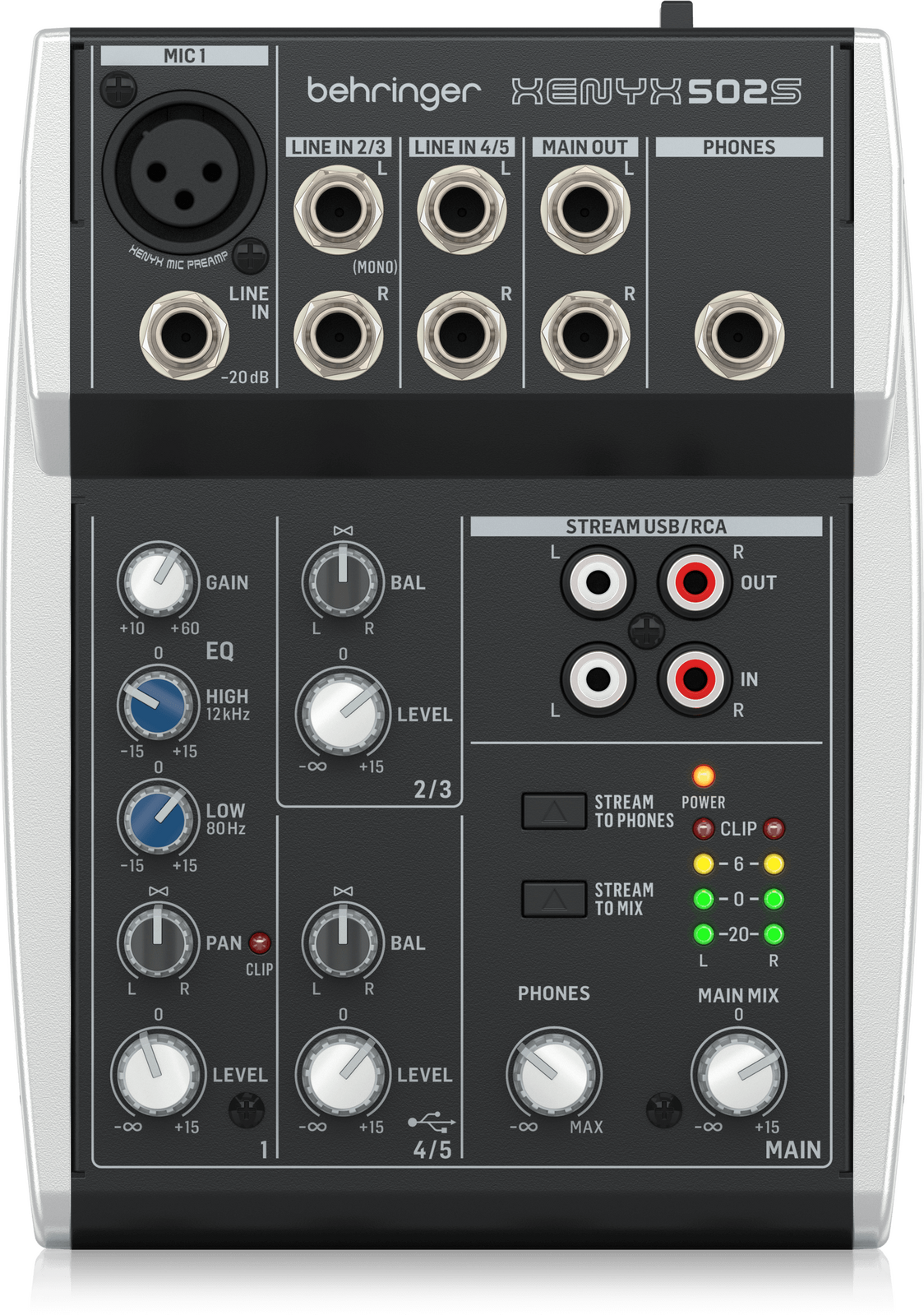

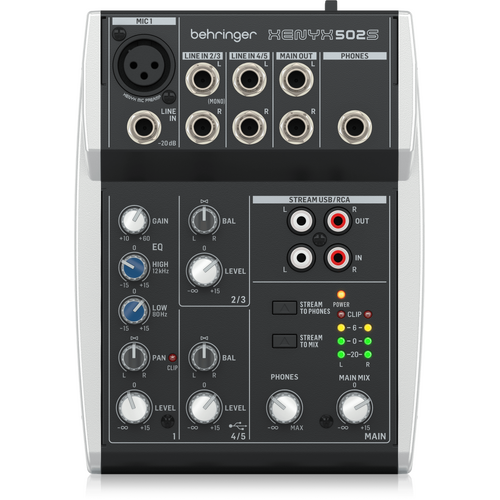

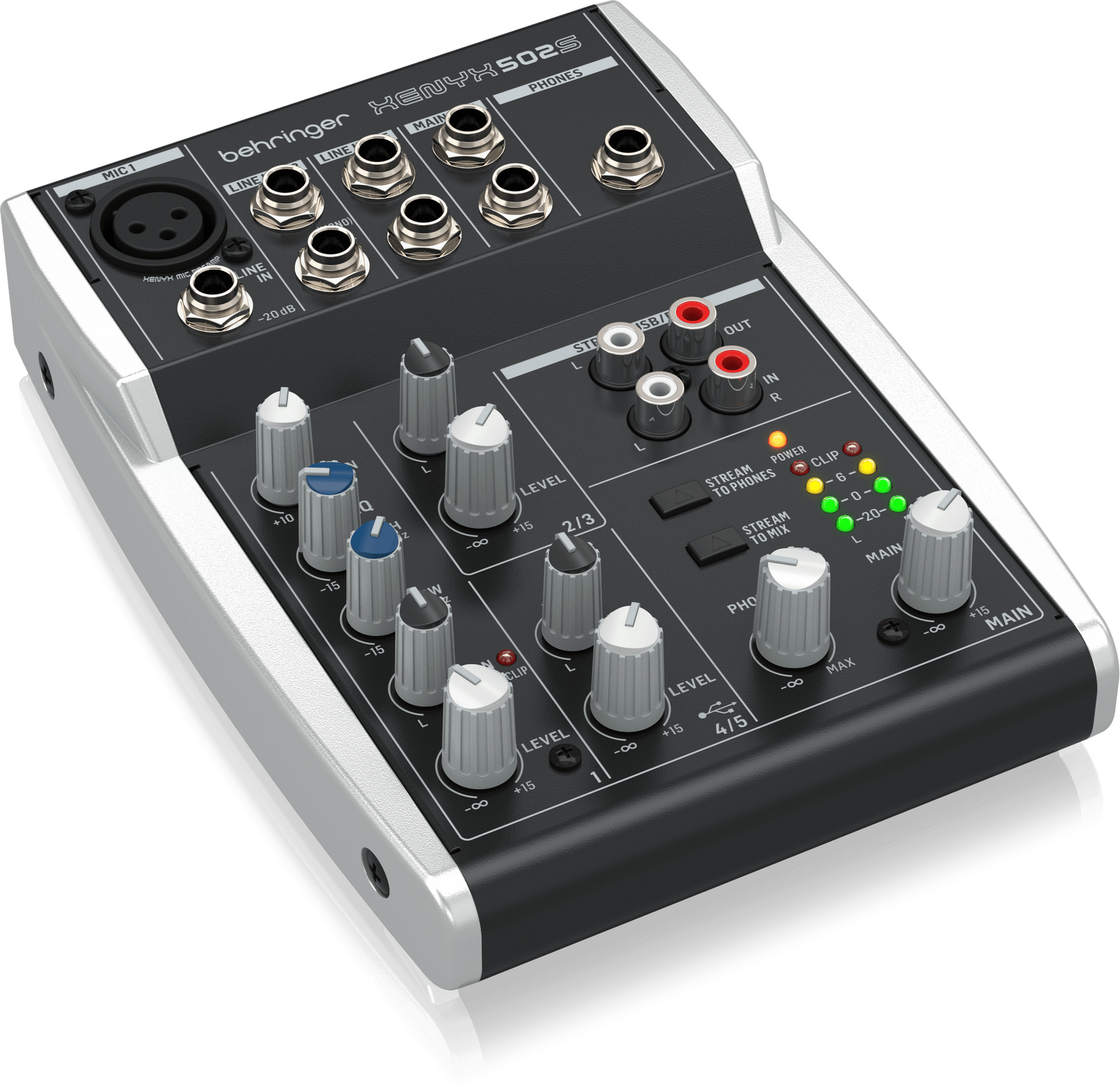

Behringer XENYX 502S

The ultra-compact XENYX 502S mixer’s 5 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamp.

FEATURES

• Ultra-low noise analog mixer for streaming, podcasting and recording

• Award winning XENYX microphone preamp for warm and musical sound

• Stereo USB audio interface to connect your computer or mobile device

• Direct mixing of PC/gaming sounds into the streaming output

• Analog mixing and equalization for pure sound

• Versatile sub mixer for network enabled audio devices

• Stereo channel 4/5 automatically switches between TRS input and USB playback

• High-quality main, phones and streaming outputs

• Stereo RCA inputs assignable to main mix or monitor/phones outputs

Great for Any Setup
The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. One mono and 2 stereo channels allow you to mix up to 5 signals, blending them to a stereo RCA streaming input and a stereo USB input. That is a total of 9 crystal-clear audio signals for monitoring via headphones or the high-quality TRS Main outputs. The 502S can also be used as a versatile sub mixer for combining network enabled audio devices with other analog signals.

SPECIFICATIONS

Mono Inputs
Microphone Input
Balanced XLR, discrete input circuit
Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
Frequency response Gain +10 dB: 10 Hz to 150 kHz
Frequency response Gain +60 dB: 20 Hz to 70 kHz
Gain range: +10 dB to +60 dB
Max input level @ +10 dB Gain: +12 dBu
Input Impedance: 2 kΩ balanced
Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%

Mono Line Inputs
1/4" TRS connector balanced
Impedance: 22 kΩ balanced, 10 kΩ unbalanced
Gain range: -10 dB to +40 dB
Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs
Stereo Line
1/4" TRS connector balanced
Frequency response: 20 Hz to 200 kHz
Impedance: 22 kΩ balanced, 10 kΩ unbalanced
Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)
RCA connector unbalanced
Impedance: 10 kΩ unbalanced
Max input level: 10 dBu

Equalizer
Low: 80 Hz/±15 dB
High: 12 kHz/±15 dB

Main, Monitor & FX Send Outputs
Type: 1/4" TRS connector impedance-balanced
Impedance: 120 Ω
Max output level: 21 dBu

Phones Out
Type: 1/4" TRS connector unbalanced
Impedance: 23 Ω
Max output level: 19 dBu/150 Ω

STREAM out (Analog)
Type: RCA connector unbalanced
Impedance: 1 kΩ unbalanced
Max output level: 10 dBu

Main Mix noise
Main Mix @ -∞: -109 dBu A-weighted
Channel @ -∞: -109 dBu A-weighted

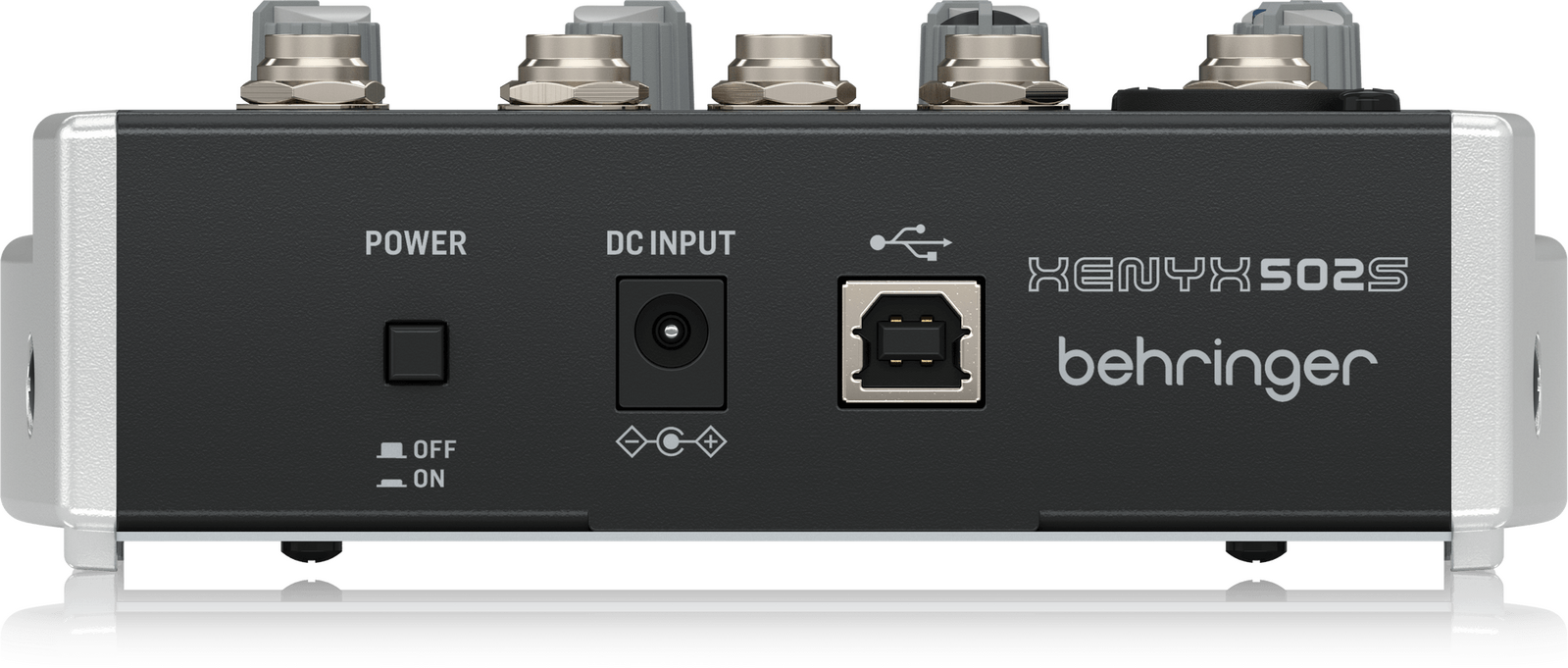

USB
Type: Type-B connector
USB Audio Data: 48 kHz 16 bit
UAC2 Class Compliant: stereo in/out

Power Supply
Power Consumption: 8 W
Adaptor input: 100 - 240 V~, 50/60 Hz, 0.5 A
Adaptor output: 18 V DC 1.0 A
