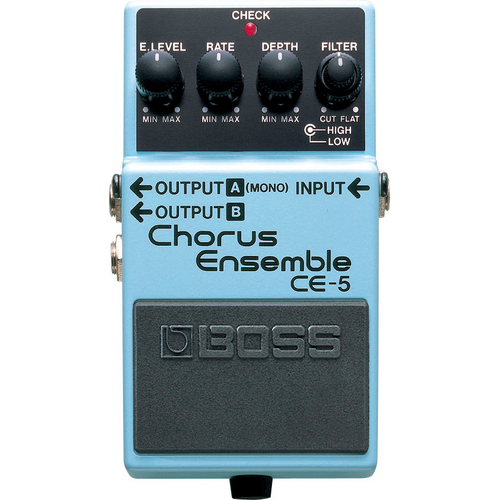

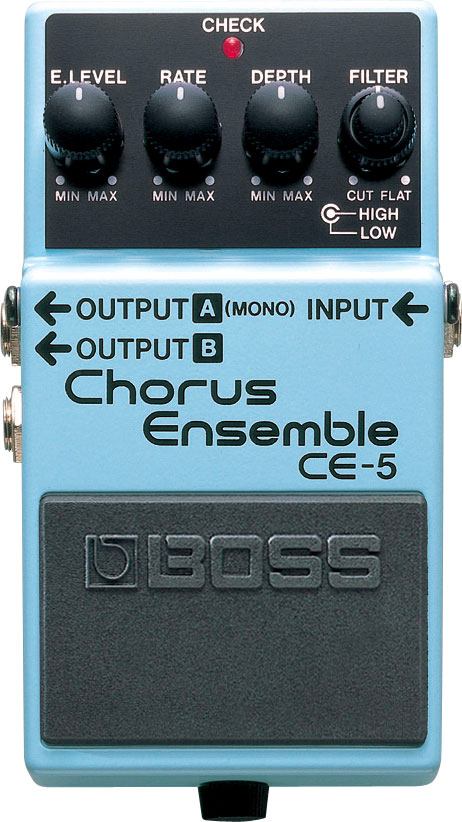

BOSS CE-5 Chorus Ensemble

THE ORIGINAL CHORUS

The CE-5 Chorus Ensemble is BOSS' ultimate compact chorus pedal, covering a wide frequency range and featuring high- and low-cut filters. This lets users create any kind of chorus effect--from a mild, natural chorus to the clear and penetrating stereo chorus effect popular in contemporary music.

FEATURES

• Ultra-high quality compact chorus pedal for guitarists and keyboardists

• High- and Low-cut filters for shaping tonality of the chorus

• Offers Effect Level, Rate, Depth and Filter knobs for complete control

• Mono input and Stereo outputs for connection to dual amps or for studio use

• Produces a range of chorusing effects, from subtle to extreme

• BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• HIGH FILTER/LOW FILTER knob

• DEPTH knob

• RATE knob

• E.LEVEL knob

• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT A/B jack: 1/4-inch phone type

• DC IN jack

Power Supply:

• Alkaline battery (9 V, 6LR61)

• AC adaptor (PSA series: sold separately)

Current Draw: 55 mA
Expected battery life under continuous use: Alkaline: Approx. 6.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately): AC adaptor: PSA series

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 425 g, 15 oz

* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.
