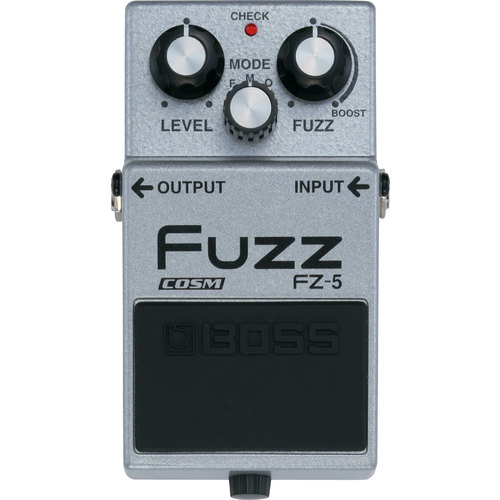

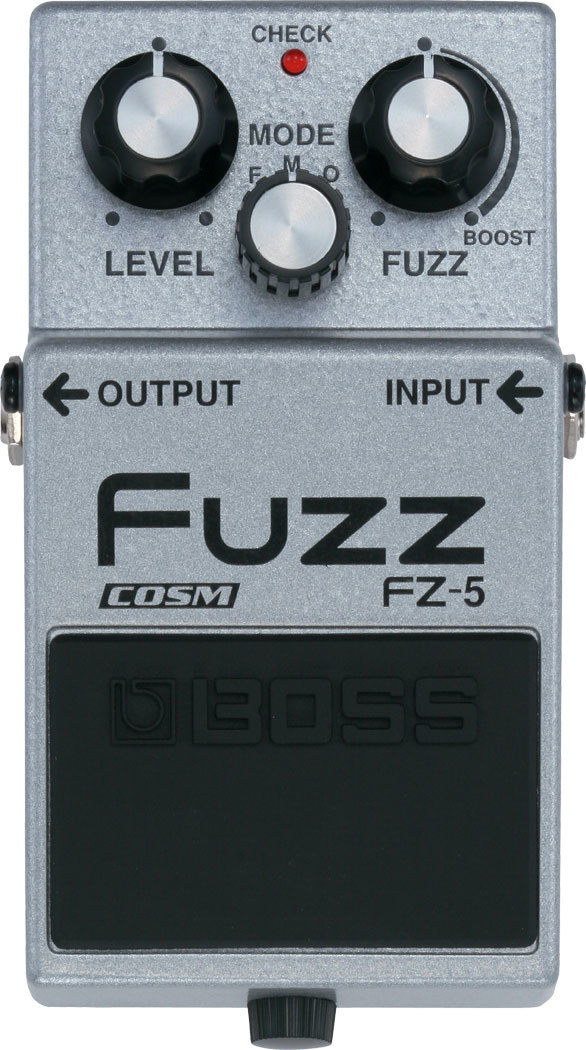

BOSS FZ-5 Fuzz

A DISTORTED BLAST FROM THE PAST

The FZ-5 is a modern pedal built for the modern guitarist, but the sounds you can get from the FZ-5 are pure retro. Looking back at the glorious rock sounds of the ’60s and ’70s, the FZ-5 recreates its vintage fuzz through BOSS state-of-the-art COSM technology. Recall the fuzz-filled flavors of classic pedals, such as the Maestro FZ-1A, Fuzz Face and Octavia pedals, and kick ’em into overdrive with the FZ-5’s Boost knob. BOSS’ proprietary COSM technology allows guitar players to recreate classic fuzz BOOST control for more aggressive tone. The FZ-5 is the perfect weapon for players wanting to beef up their rigs with classic retro fuzz artillery.

FEATURES

• Vintage sounds inspired by famous fuzz pedals of the ’60s and ’70s

• Uses advanced COSM technology to recreate classic fuzz

• BOOST control for more aggressive tone

• Road-tough BOSS metal construction

• BOSS five-year warranty

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• FUZZ knob

• MODE knob

• LEVEL knob

• Pedal switch

Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT jack: 1/4-inch phone type

• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 60 mA
Expected battery life under continuous use: Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

• Alkaline battery (9 V, 6LR61)

Options (sold separately): AC adaptor: PSA series

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 405 g, 15 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
