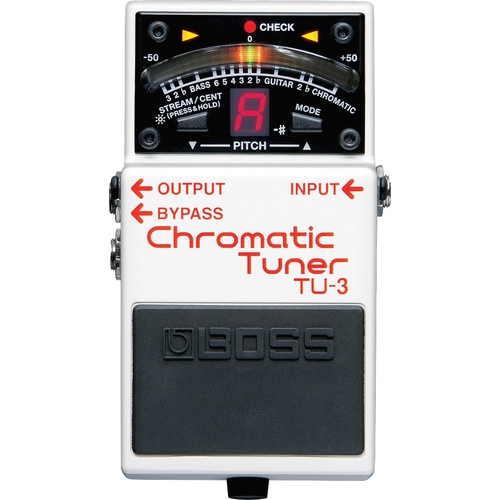

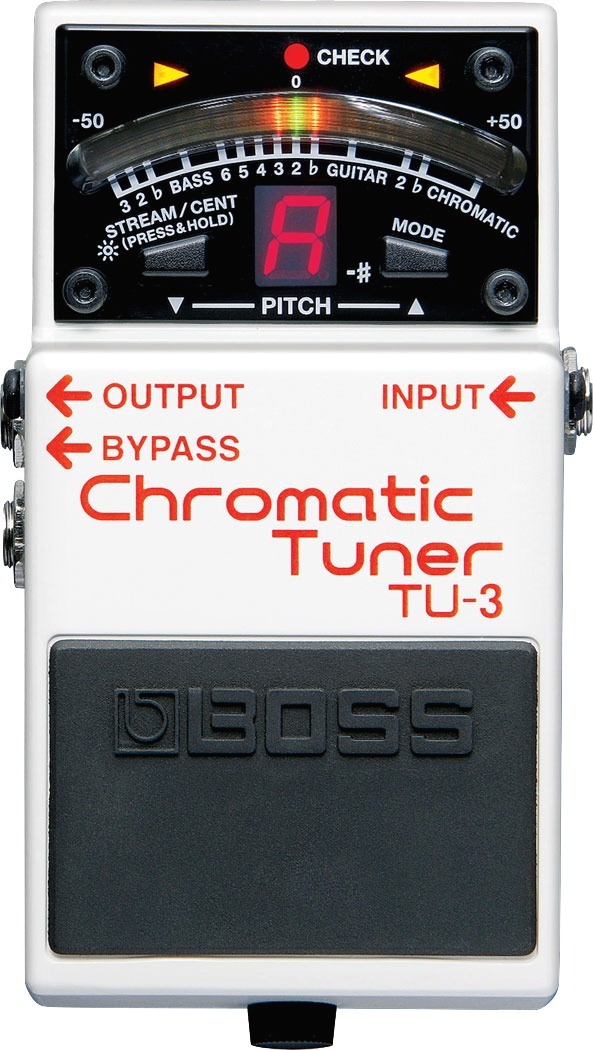

BOSS TU-3 Chromatic Tuner

THE NEW WORLD-STANDARD TUNER HAS ARRIVED

The world’s top-selling stage tuner, the BOSS TU-2, evolves and improves with the debut of the new TU-3. Housed in a tank-tough BOSS stompbox body, the TU-3 features a smooth 21-segment LED meter with a High-Brightness mode that cuts through the harshest outdoor glare. Choose between Chromatic or Guitar/Bass tuning modes, and enjoy visual pinpoint tuning verification with the Accu-Pitch Sign function. The TU-3 incorporates a convenient Note Name Indicator that can display notes of 7-string guitars and 6-string basses, while the Flat-Tuning mode can support up to six half-steps. It’s the new-standard tuner that no guitarist or bass player should be without!

FEATURES

• 21-segment LED meter with brightness control

• High-Brightness mode enhances meter visibility outdoors

• Accurate to +/- one cent

• Accu-Pitch Sign function provides visual verification when tuning is complete

• Chromatic and Guitar/Bass mode (tune by string number, with support for 7-string guitars and 6-string basses)

• Flat tuning is supported with Guitar Flat mode, which allows for “drop” tunings up to six semitones below standard pitch

• Tuner automatically mutes when the tuner is on

• Supplies power for up to seven BOSS compact effect pedals

• BOSS five-year warranty

SPECIFICATIONS

Tuning Range: C0 (16.35 Hz)--C8 (4,186 Hz)
Reference Pitch: A4 = 436--445 Hz (1 Hz step)
Tuning Accuracy: +/- 1 cent
Modes:

• Chromatic

• Chromatic flat x2

• Guitar

• Guitar flat x2

• Bass

• Bass flat x3

Display mode: Cent mode, Stream mode
Power Supply: Carbon-zinc battery (9V, 6F22) or Alkaline battery (9V, 6LR61), AC adaptor (sold separately)
Bypass: Buffered bypass
Controls:

• Pedal switch

• MODE button

• STREAM/CENT button

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:

• INPUT jack

• OUTPUT jack

• BYPASS jack

• DC IN jack

• DC OUT jack

Current Draw: 20 mA (DC 9 V), 80 mA (DC 9 V, when High Brightness mode is on)
Expected battery life under continuous use:

• Carbon: Approx. 5 hours

• Alkaline: Approx. 21 hours

*These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")

• Carbon-zinc battery (9V, 6F22)

Options (sold separately):

• AC adaptor: PSA series

• Parallel DC cord: PCS-20A(DC Plug x8)

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 390 g, 14 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
