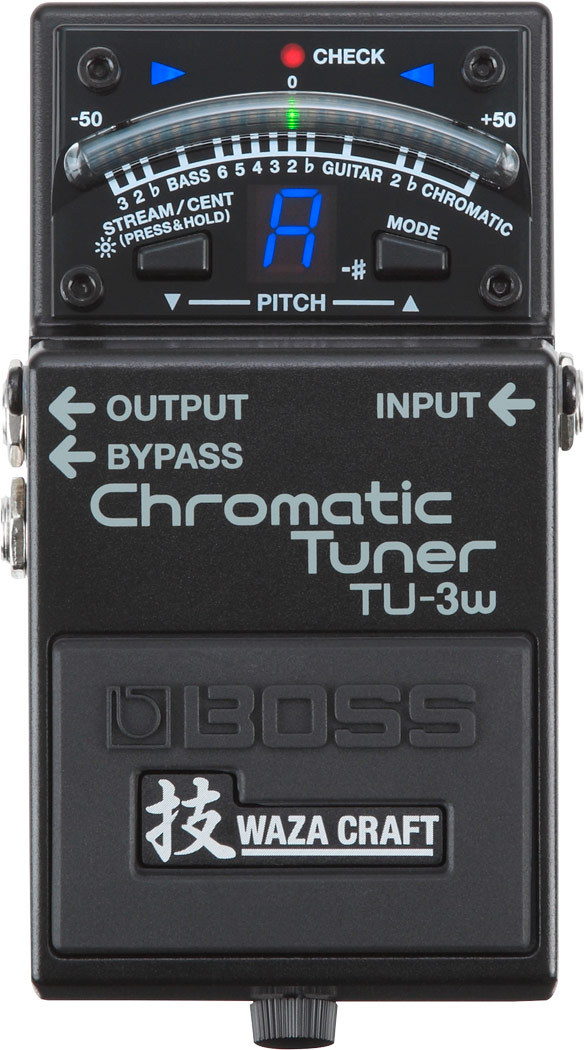

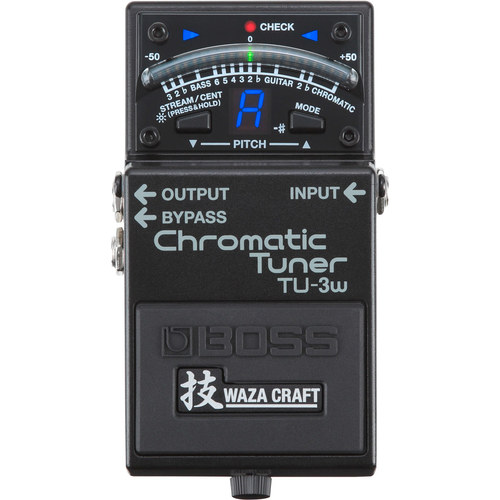

BOSS TU-3W Chromatic Tuner Waza Craft

THE LEADING STOMPBOX TUNER, REFINED WITH WAZA EXPERTISE

With the TU-3W, BOSS brings Waza Craft mojo to the world’s leading stompbox tuner. At its core, the TU-3W provides rock-solid tuning equivalent to the industry-standard TU-3. In true Waza tradition, the pedal’s benchmark functionality is further enhanced with BOSS skill and craftsmanship. Pure, uncolored signal transfer is essential for a tuner, and the TU-3W features redesigned circuitry with selectable buffered or true-bypass operation and the most transparent audio pass-through possible. Packing high-end performance for discriminating players, the TU-3W delivers a premium pedal experience only available from BOSS.

FEATURES

• The world’s leading stompbox tuner, enhanced with Waza innovation and craftsmanship

• Superior tuning and premium signal buffer in one pedal

• Tuning functions are identical to the industry-standard TU-3

• Refined audio circuitry for exceptionally pure signal pass-through

• Buffer can be turned off for true-bypass operation

• BOSS five-year warranty

Waza Craft: The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. Being made in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully selected analog components, refined circuitry, and meticulous attention to detail.

SPECIFICATIONS

Tuning Range: C0 (16.35 Hz)--C8 (4,186 Hz)
Reference Pitch: A4 = 436--445 Hz (1 Hz step)
Tuning Accuracy: +/- 1 cent
Modes:

• Chromatic

• Chromatic flat x2

• Guitar

• Guitar flat x2

• Bass

• Bass flat x3

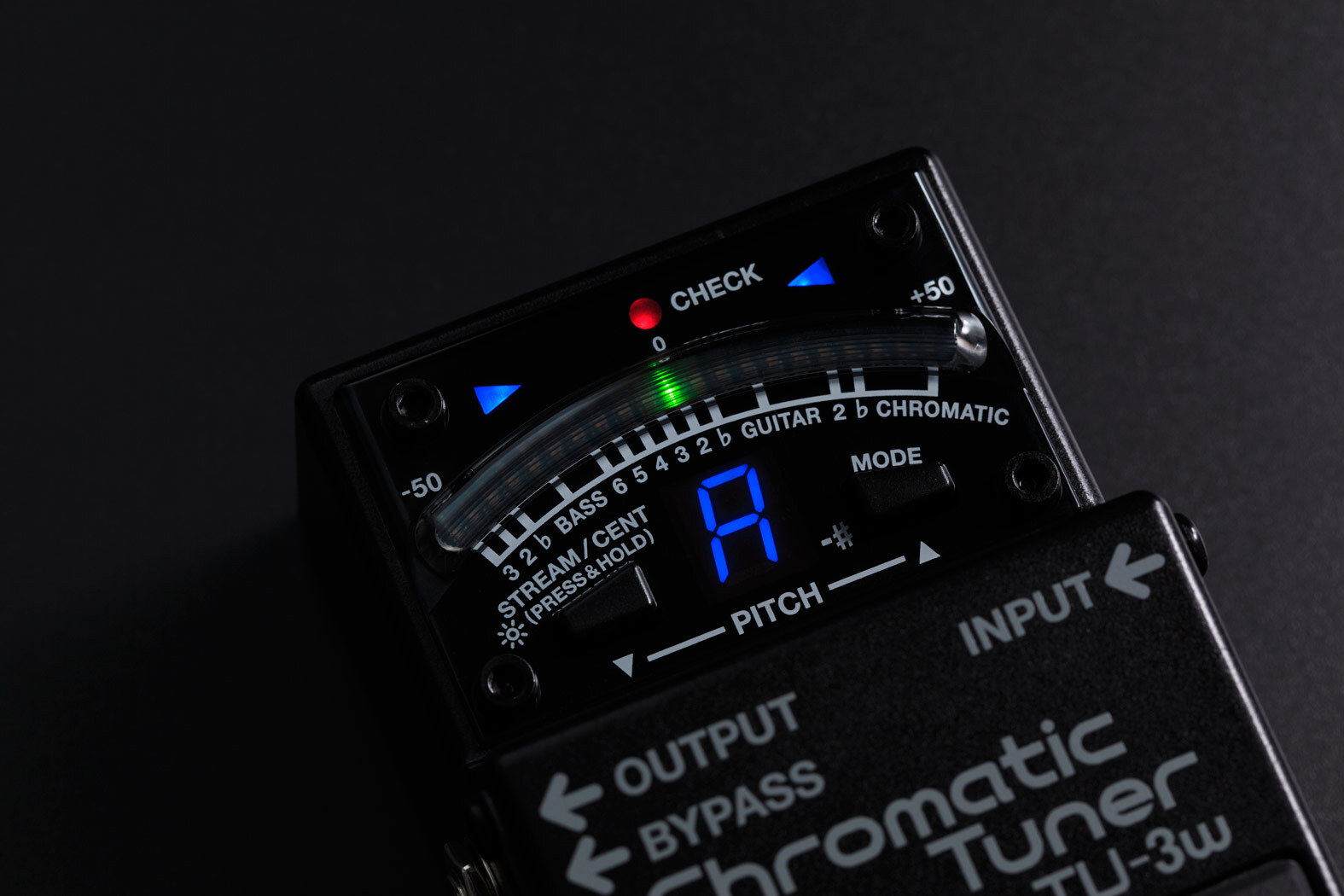

Display mode:

• Cent mode

• Stream mode

Power Supply: Alkaline battery (9V, 6F22) or Carbon-zinc battery (9V, 6LR61), AC adaptor (sold separately)
Bypass: Buffered bypass or True bypass
Controls:

• Pedal switch

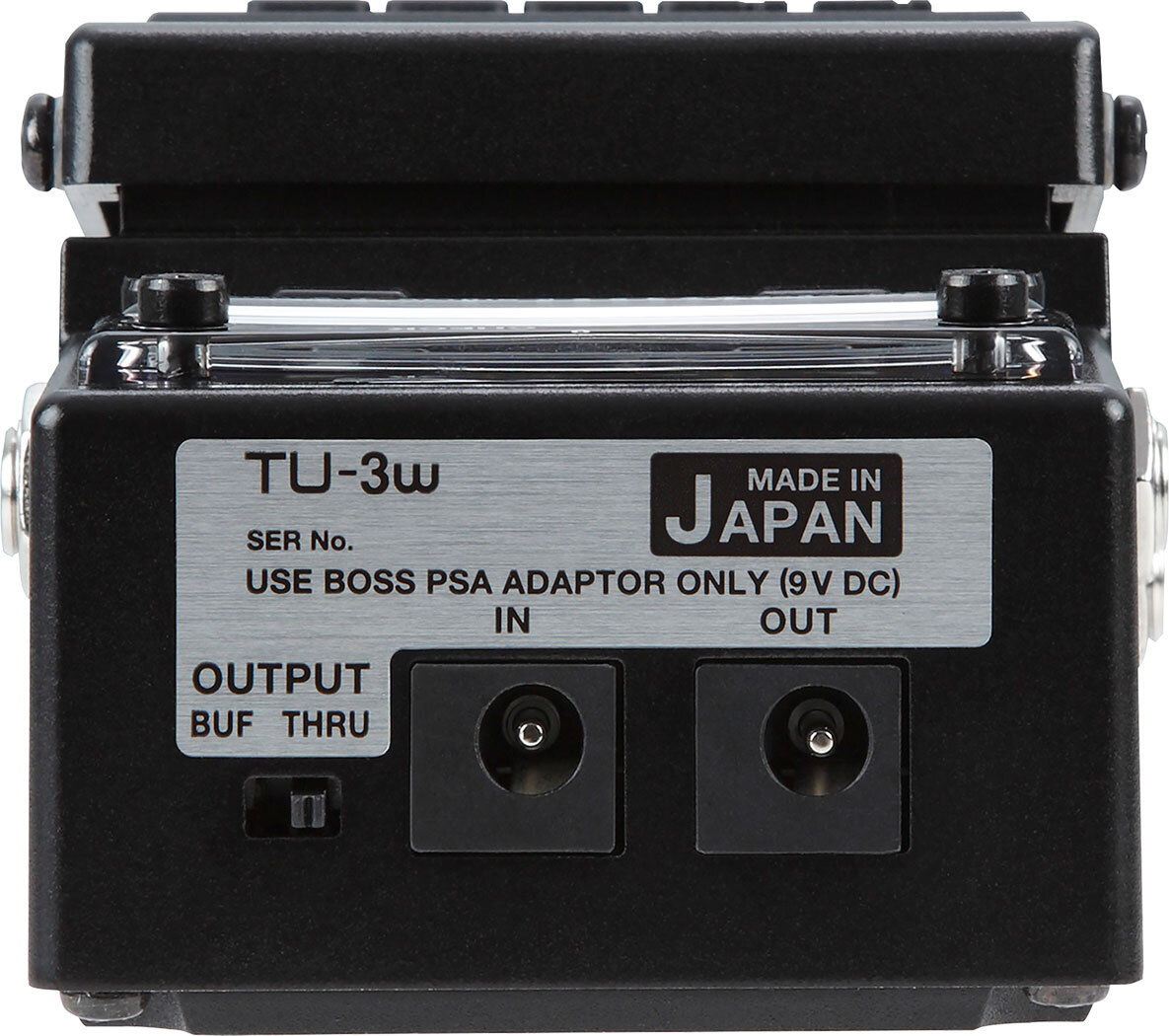

• OUTPUT switch (BUF/THRU SW)

• MODE button

• STREAM/CENT button

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT jack: 1/4-inch phone type

• BYPASS jack: 1/4-inch phone type

• DC IN jack

• DC OUT jack

Current Draw: 50 mA (DC 9 V), 110 mA (DC 9 V, when High Brightness mode is on)
Expected battery life under continuous use: Alkaline: Approx. 5.5 hours, Carbon: Approx. 0.5 hours
These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")

• Alkaline battery (9V, 6LR61)

Options (sold separately):

• AC adaptor: PSA series

• Parallel DC cord: PCS-20A (DC Plug x8)

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 460 g, 1 lb 1 oz

* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.
