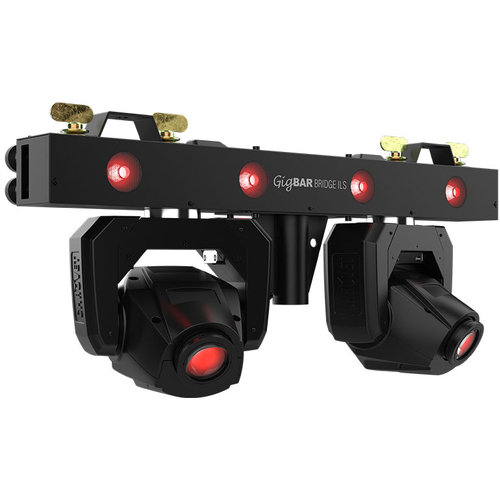

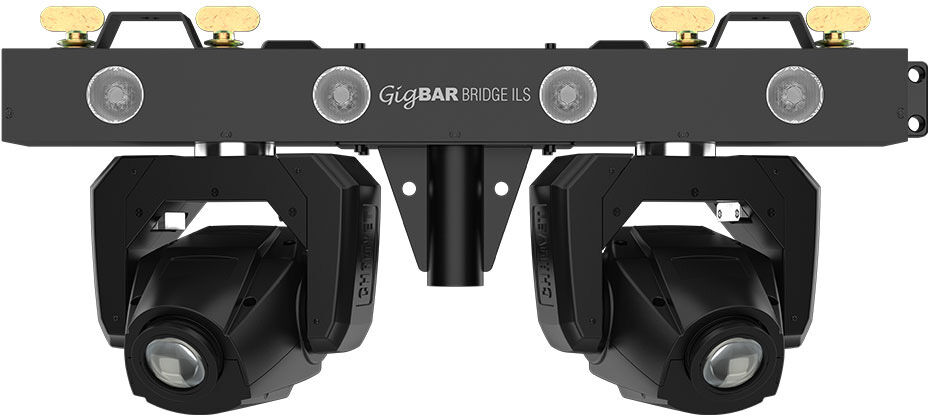

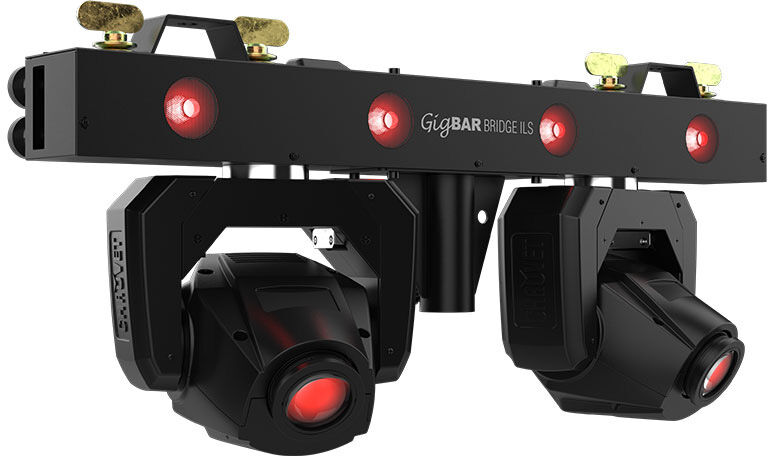

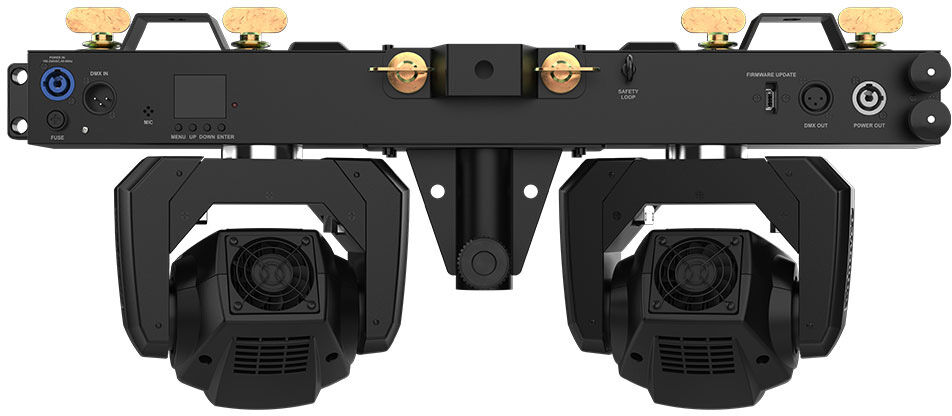

Chauvet DJ GigBAR Bridge ILS LED Lighting System

Enjoy a customizable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system has a minimal setup time thanks to its moving heads and wash lights that come pre-mounted onto a single bar. ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Create dynamic dancefloor moments with just one system.

FEATURES

• 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar

• Quickly and securely connect multiple fixtures with the built-in locking system

• Built-in DFI transceiver communicates DMX or ILS signals wirelessly

• Safely mounts onto truss or mobile tripods using the removable bracket

• Easy navigation and access all functions directly from the full-color LCD display

• Powerful moving heads with separate color and gobo wheels allow for creative programming

• Totem Mode keeps the moving heads focused on the dance floor

• Save time running cables and extension cords by power linking multiple units

• ILS compatibility for use in the ILS ecosystem

SPECIFICATIONS

DMX Channels: 3, 16 or 46
DMX Connectors: 3-pin XLR
Light Source (moving head): 1 LED (cool white) 40W (3A), 50,000 hours life expectancy
Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
Colours (moving head): 9 + open, split colors, continuous scroll at variable speeds
Colours (wash): red, green, blue, white, amber, and UV
Gobos (moving head): 9 + open, continuous scroll at variable speeds
Beam Angle (wash): 22°
Field Angle (wash): 38°
Strobe Rate: 0 to 20Hz
Operating Frequency: 2.4 GHZ
Power Linking: 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes: 37.4 mm (1.5″)
Max Unobstructed Distance (D-Fi): 183m
Optional Controllers: RF, Footswitch, ILS Command
Approvals: CE, RoHS , FCC
Size: 660 x 71 x 305 mm
Weight: 8.4 kg

WHAT'S INCLUDED

• GigBAR Bridge ILS

• Power cord

• 2 Hanging brackets

• Carry bag

• Quick Reference Guide
