DPA Microphones CORE+ 4099 Classic 4 Mic Touring Kit

KIT-4099-DP-4C - 4099 CORE+ Classic Touring Kit, 4 Mics and accessories, Loud SPL

These kits, featuring 4099 CORE+ versions ensure the highest sound quality and bring more clarity and details to your music.

FEATURES

• CORE+ technology

• High SPL handling

• Wide dynamic range

• Supercardioid pick up pattern

• Superior gain before feedback

• MicroLock® connector

• IP58 certified

• Advanced, flexible clip program

The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.

SPECIFICATIONS

Directional pattern: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, THD 10%: 145 dB SPL peak
Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Connector: MicroLock
Microphone weight: 18 g (0.63 oz)
Microphone diameter: 5.7 mm (0.22 in)
Microphone length: 50 mm (1.97 in)
Cable length: 1.8 m (5.9 ft)
Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Gooseneck length: 140 mm (5.5 in)
Sensitivity selection tolerance (at 1 kHz): ±1 dB
Colors: Black

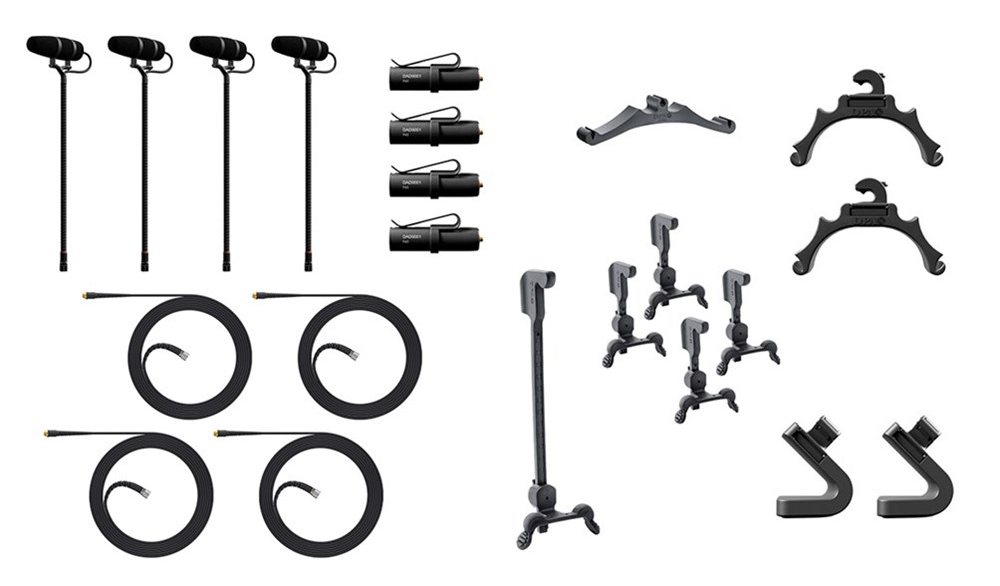

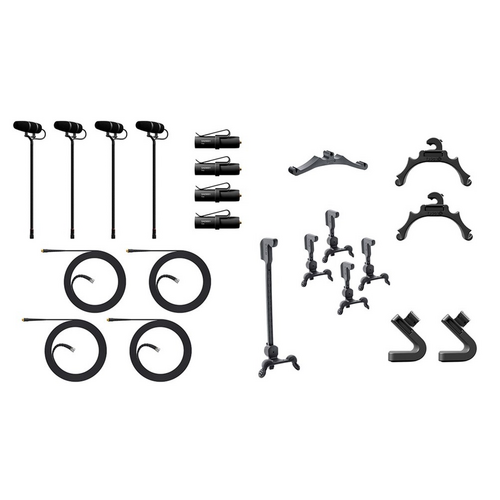

KIT inclusions:

• 4 x 4099-DP-1 Instrument Microphone, Loud SPL

• 4 x MicroLock Extension Cable, 1.6 mm / 0.06 in

• 4 x DAD9001 MicroLock to 3-pin XLR with Belt Clip

• 1 x Microphone Clip for Bass

• 2 x Microphone Clip for Cello

• 1 x Microphone Clip for Guitar

• 2 x Microphone Clip for Piano

• 4 x Microphone Clip for Violin
