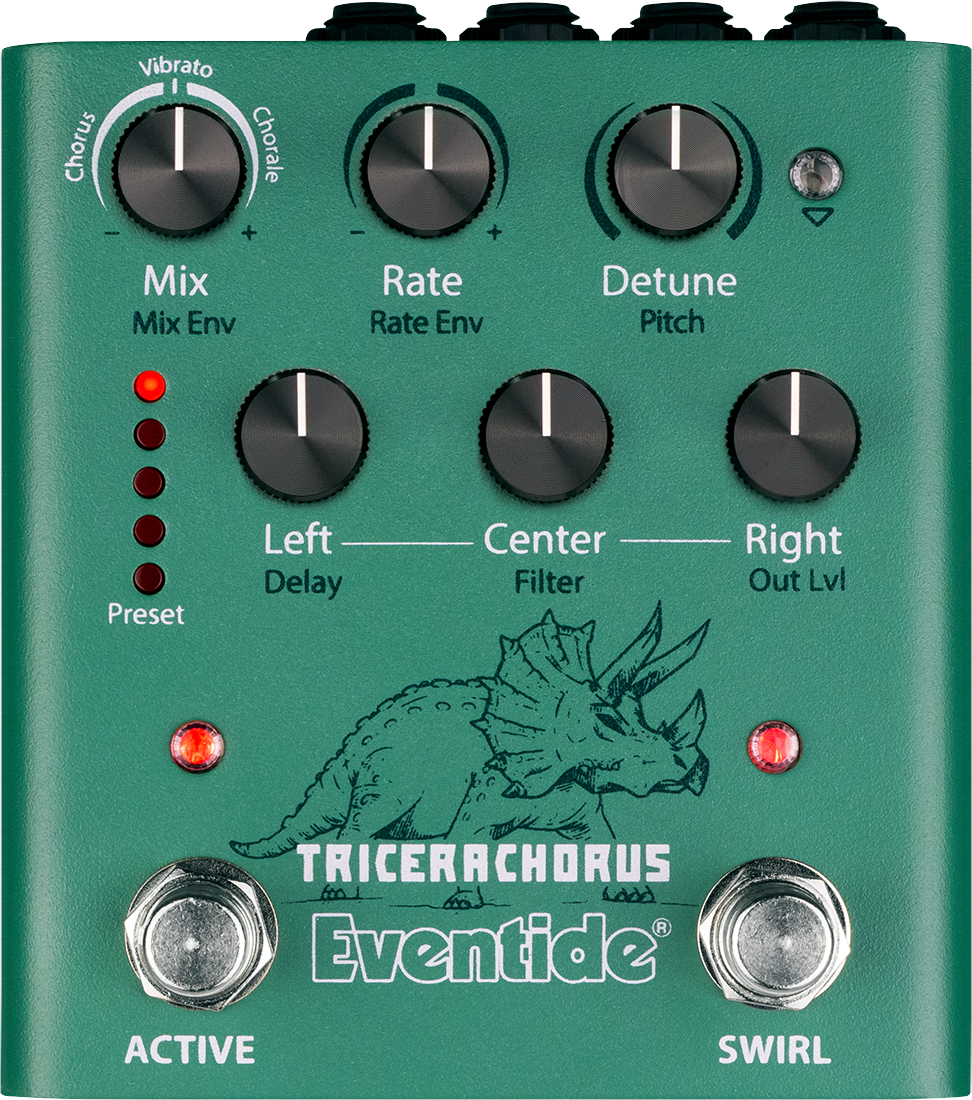

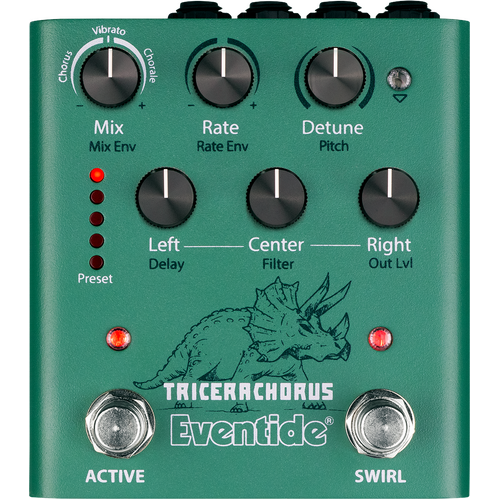

Eventide TriceraChorus

A World of Swirl

Inspired by the classic Tri-Stereo Chorus and stompbox choruses of the 1970s and early 1980s, the TriceraChorus pedal pairs rich Bucket Brigade-style chorusing with Eventide’s legendary MicroPitch detuning for a lushness that rivals the jungles of the late Cretaceous Period. TriceraChorus features three chorus voices and three unique chorus effects which can be used to create a wide stereo spread with pulsing waves of modulation. The innovative “Swirl” footswitch adds psychedelic flanging, phasing, and Univibe-style tones. It has never been easier to dial in syrupy smooth, deep modulation on guitar, bass, synths, strings, vocals, and more.

FEATURES

• Three independent chorus voices: Left, Center and Right

• Three chorus types: Chorus, Vibrato, Chorale for a wide array of tonal possibilities

• Dedicated “Swirl” footswitch capable of generating psychedelic flanging, phasing and Univibe-style tones

• Five presets loaded at your feet with dozens more available with Eventide Device Manager (EDM) software

• Dual-action Active Footswitch is latching or momentary.

• Rear panel Guitar/Line Level switch for matching levels with guitar, synths, FX loop or DAW interface

• Map any combination of parameters to an expression pedal.

• Use a single aux switch to tap Rate or a triple aux switch for easy preset changing (up/down/load).

• MIDI capability over TRS (with MIDI to TRS cable or converter box) or USB (with MIDI-host controllers)

• Multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry

• Catch-up mode helps dial in your sound when toggling between presets/parameters.

• Eventide Device Manager PC or Mac application for software updates, system settings and creating/saving presets

Deep Modulation & Dreamy Textures
TriceraChorus has three chorus voices: Left, Center, and Right, which can be detuned to add even more depth. A three-phase LFO modulates the delay times for these voices, producing a dazzling movement across the stereo field. The combination of the three modulated delays creates a huge wash of chorus reminiscent of that big, dreamy 80s sound.

A Trifecta of Tone
Like the mighty three-horned Dino, TriceraChorus is a powerhouse of chorus offering three effect types complemented by detuning and Swirl. For a quintessential vintage chorus sound, set TriceraChorus to “Chorus” mode. If you need something with more complexity and movement, “Chorale” produces lush, heavenly choruses inspired by classic rackmount Tri-chorus units. For a more warbly, pulsing effect, try “Vibrato.” Add detune for subtle pitch shifting sweetness. Engage the “Swirl” footswitch to get lost in a whirlpool of kaleidoscopic sound.

SPECIFICATIONS

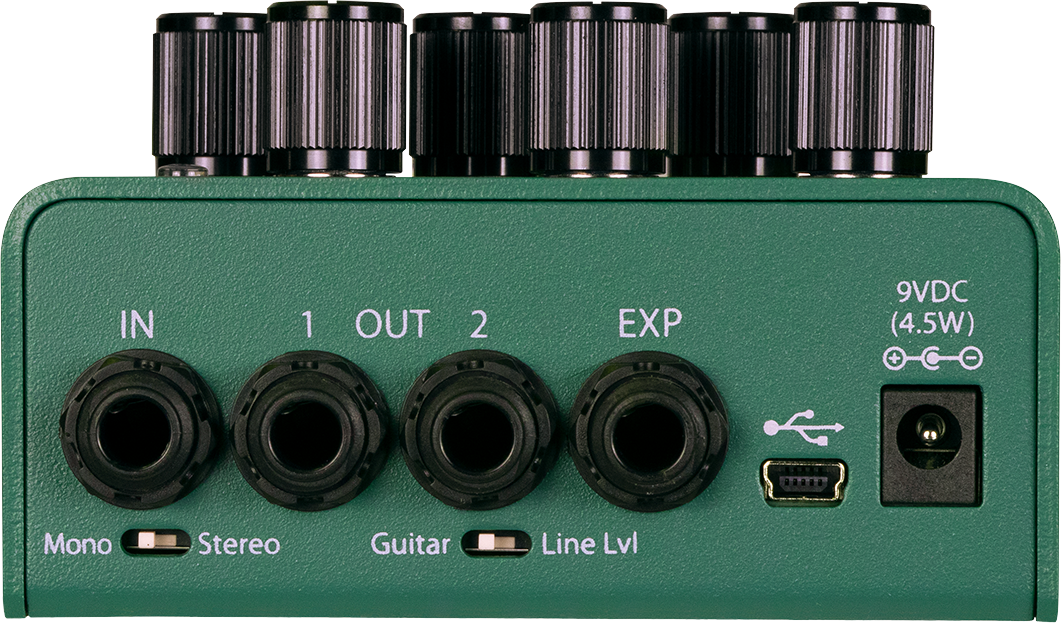

Connectors
Input: 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4″ TS Mono / Mono Output
Out 2: 1/4″ TS Mono / Stereo Output
EXP: 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O
Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Specifications
Power: 9V DC @ 300mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
Dimensions (Product): 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
Weight (Product): 1.06 lb / 0.48 kg
Dimensions (Package): 7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
Weight (Package): 1.68 lb / .77 kg
