Ibanez PTEQ Pentatone

The Pentatone Equalizer is a standalone version of the 5-band equalizer section in the Ibanez Pentatone Preamp. Adding a continuously variable Q control on each band, which allows for a wider variety of sound creation, enables even more detailed sound creation. Furthermore, the ±9V power supply circuitry provides a wide headroom.
That makes the parametric equalizer suitable for not only electric guitars but also higher-level output signal equipment such as electric bass guitars and keyboards.

FEATURES

Q controls
Continuously variable Q control on each band.

Master LEVEL control
Adjusts the overall signal level from -∞dB to +6dB.

Wide headroom
Generated by ±9V power supply circuit.

SPECIFICATIONS

Controls: 5-band frequencies, 5-band levels, 5-band Q controls, Master Level
True bypass

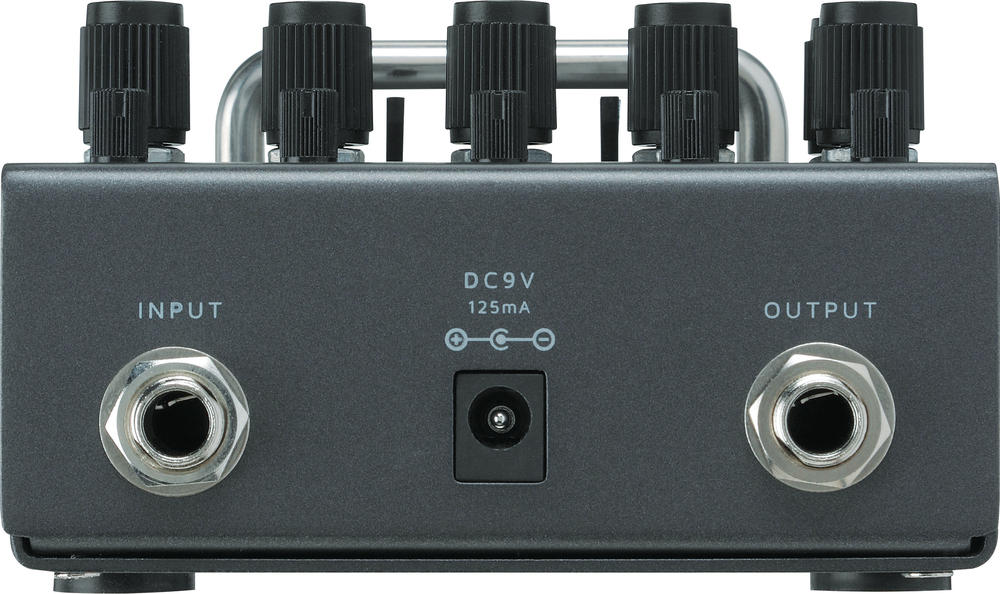

I/O’s: INPUT, OUTPUT
Size: 100(W) x 123(D) x 63(H) (mm) / 3.9(W) x 4.8(D) x 2.5(H) (inch)
Weight: 690g, 1.5lb (including Battery)
Required Current: 125mA@9V
Power Supply: One 9V battery (006P) or external AC adapter
