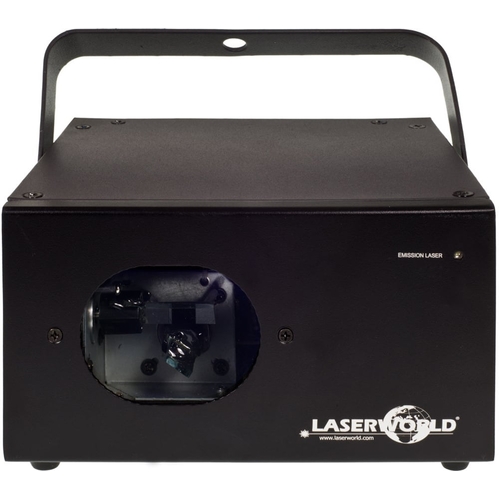

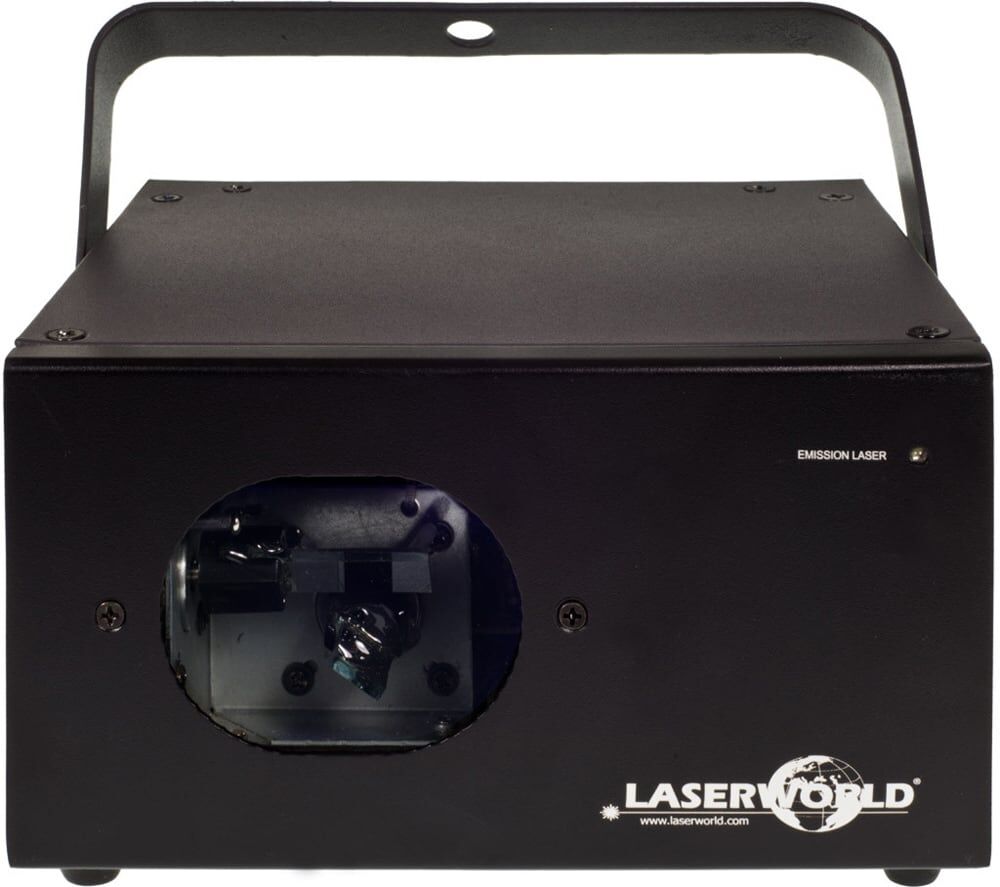

Laserworld EL-230RGB

The Laserworld EL-230RGB is a compact RGB laser system with a total output power of up to 230 mW. Designed for mobile entertainers, private parties and smaller venues. The laser comes with a safety key and is fitted with an interlock for added safety. Supplied with 50 built-in patterns including; layers, tunnels, fences, waves etc. that can be operated via the stand-alone and sound-to-light modes. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted. For more dynamic effects the laser can be controlled via DMX.

Powering the laser projector are 3 primary modules; Red, Green, and Blue. The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm, the royal-blue laser module with a wavelenght of 445 nm ensure beautiful colors and brightness. The beams have a diameter of about 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed stepper motors with 2-5 kpps as well as a scan angle of up to 30°. For great coverage and effect.
For the best effect we recommend combining your laser projector with a smoke, or haze machine. This will allow you to see the beams of the laser in mid-air and will give your next party or event the WOW factor it deserves.

FEATURES

• Compact Class 3B RGB laser system

• 50 amazing and colourful patterns

• Wide 30° scan angle

• Sound-to-music, stand-alone and DMX operation

• Safety and interlock prevents unauthorized use

• Great for house parties, DJs, and small venues

SPECIFICATIONS

• Total Power typical: 230 mW

• Guaranteed min. power: 170 mW

• Power Red: 100 mW / 650 nm

• Power Green: 20 mW / 532 nm

• Power Blue: 50 mW / 445 nm

• Beam Specifications: ca. 4 mm / 1 mrad

• Laser Sources: Diode, DPSS Laser

• Laser Class: 3B

• Operation Modes: Stand-Alone, Sound-to-Light, DMX

• Scanner: high-speed stepper motors, up to 2-5 kpps

• Scan Angle max.: 30°

• Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)

• Accessories: power cable, manual, interlock, key

• Power Supply: 85V – 250 V AC

• Power Consumption: 15 W

• Dimensions: 188 x 165 x 106 mm

• Weight: 2.6 kg
