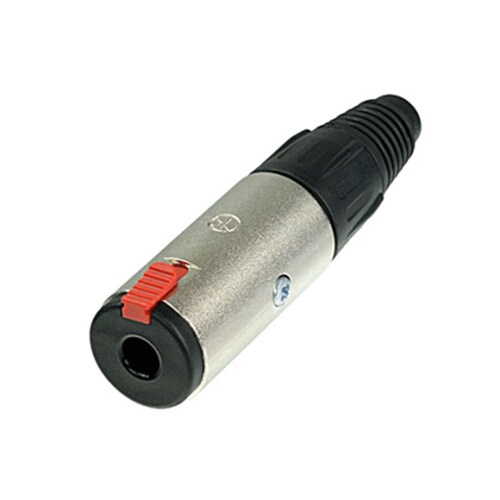

Neutrik NJ3FC6
Connector
In stock at warehouse.
Allow additional days for shipping or to collect in-store.
Important Warehouse Shipping Information
Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.
Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.
If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.
More infoCalculate Shipping
Enter post code to calculate shipping
Professional locking 1/4" cable jack for secure in-line connections. Nickel housing, silver contacts, excellent cable protection
The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
FEATURES
-
Securely locking cable jack
-
Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
-
Metal shell makes it extremely robust and reliable
-
Neutrik cable retention and boot as on XLR connectors
-
Solder terminals
-
Colored boots available in 10 colors for color coding and marking
SPECIFICATIONS
Connection Type: Jack
Gender: Female
Contact resistance: < 6 mΩ (initial)
Dielectric strength: 1 kVdc
Insulation resistance: ≥ 1 GΩ @ 500 V dc
Rated current per contact: 10 A
Cable O.D.: 3.5 - 8.0 mm
Insertion force: < 30 N
Withdrawal force: < 20 N
Lifetime: > 10000 mating cycles
Locking force: > 80 N
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 2 µm Ag
Contacts: Brass (CuZn37) (Ground)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Standard compliance: EIA RS 453, IEC 60603-11
Solderability: Complies with IEC 68-2-20
Temperature range: -25 °C to +70 °C
