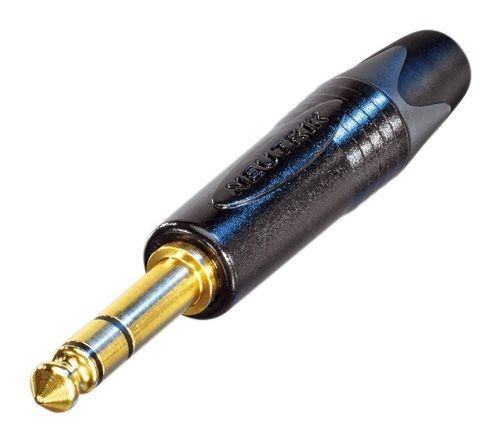

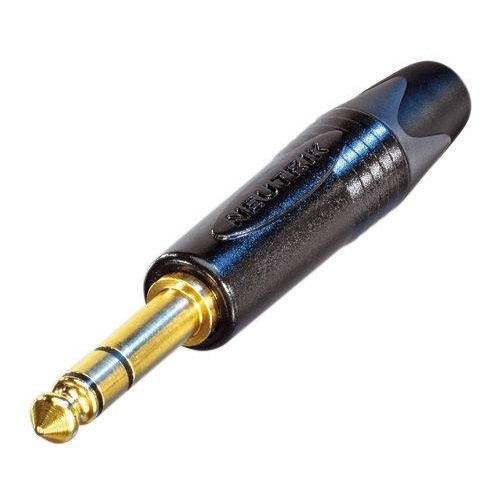

Neutrik NP3X-B

Connector

$13.20


See more from Neutrik

SKU: NU-NP3X-B


5+ in stock at Hobart store — Ready to ship or collect in store
In stock at warehouse. Allow additional days for shipping.

More info.

Make 4 payments of $3.30 over 8 weeks and get it now!


Calculate Shipping


3 pole 1/4" professional phone plug, gold contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

FEATURES

  • Extra slim 1/4" plug for highest packing density

  • Robust diecast shell in stylish design

  • Proven chuck type strain relief for reliable cable retention

  • Sleek design for best handling convenience

  • Precision machined one-piece contacts - avoid hook up of tip contact

SPECIFICATIONS

Connection Type: Plug
Gender: Male
Contact resistance: depends on mating connector mΩ
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: depends on mating connector A
Rated voltage: < 50 V
Cable O.D.: 4 - 7 mm
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Bushing: Polyacetal (POM) + PU
Contact plating: 0.2 µm Au
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Standard compliance:    IEC 60603-11 / EIA RS-453
Solderability: Complies with IEC 68-2-20
Temperature range: -20 °C to +65 °C
