Positive Grid Spark PEDAL

Your Rig. One Pedal. Zero Compromise.

Spark PEDAL puts an entire gig-ready rig, a smart effects processor, and a looper in a single, hassle-free setup. No menus. No complex routing. Just legendary tone, anywhere you plug in.

The rig follows you now.

FEATURES

• Any rig. Any setup.
  Plugs into everything. PA, pedalboard, laptop, headphones & more.

• Built-in 60-second looper.
  Record, overdub, undo. Hands-free.

• Up to 7-hour rechargeable battery.
  Plays through rehearsal, the gig, and after.

• 33 amps. 43 effects. 100,000+ tones.
  Powered by the same HD Tone Engine in Spark 2.

One pedal. Every situation.
Spark PEDAL is built around one idea: your tone shouldn't be tied to one room or one rig.

• Pedalboard: Drop Spark PEDAL into your existing board and add a full amp and effects rig to the setup you already play.

• Direct to PA: Show up, plug in, and rip. Two ¼″ line outputs send a full, cabinet-emulated stereo signal straight to the front-of-house desk. Soundcheck in seconds.

• Desktop recording: Plug in over USB-C and your DAW sees Spark PEDAL as an audio interface. Studio-quality sound, direct to your session.

• Headphones: ⅛″ stereo headphone output. Full amp and effects at any hour, with zero noise.

• Jam along to anything: Pair your mobile device over Bluetooth and jam along to your own playlists, backing tracks, and favorite songs.

• Into your amp: Already have an amp you love? Keep it. Switch off the cab sim and use Spark PEDAL as a dedicated effects processor in front of your existing rig. 43 effects, your amp, your tone.

• On the road: Up to 7 hours on a rechargeable battery. Practice. Warm up. Record. It’s all here.

Great tone. No setup required.
Powered by Spark's HD Tone Engine. This isn't just modeling — it's a living, breathing ecosystem. The exact same high-definition DSP architecture as Spark 2, the world's best-selling practice amp. All dialed in for electric, acoustic, and bass guitars.

• 33 Amp Models

• 43 Effects

• 100,000+ ToneCloud Tones

Your Spark library, unplugged.
Every preset you've built. Every tone you've saved on ToneCloud. It's all there, the moment you log in.

Dual-Mode Controls. Instant Flexibility
Spark PEDAL gives you deep control without the complexity. Five multifunction knobs and three heavy-duty footswitches adapt instantly between amp and effects control.

• Amp Mode: Dial in your Gain, Bass, Mid, and Treble in real time — exactly like a traditional amp head.

• FX Mode: Click the main knob to instantly transform those same knobs into a dedicated stompbox row, controlling Drive, Modulation, Delay, and Reverb depth on the fly.

• 6 Onboard Presets: across 2 banks Save your favorite sounds and switch between them on the fly. Six slots, two banks, one tap to recall.

• Built-in Tuner: A full-featured tuner is built right in — no extra pedal, no extra cables, no compromise.

• Dynamic LED Feedback: Color-coded LEDs show mode, preset, looper status, and battery level at a glance.

Hear it in your head. Play it now.
The free Spark app connects to Spark PEDAL and puts powerful tone-building tools right in your hands. Build your signal chain from a full library of amps, cabs, and effects. Explore 100,000+ tones on ToneCloud. Describe what you're after and Spark AI builds it for you. The depth of a complete setup — always with you, always growing.

• Spark AI: Type a phrase, a song, an artist, or a feeling and get tones that match. Tweak them, save them, make them yours.

• Build Your Rig: Design your signal chain block by block. Choose amps, stompboxes, and effects, then fine-tune every parameter to taste.

• Auto Chords: Play a song through the app and Auto Chords shows you the chords in real time. Follow along immediately — no tab hunting, no guessing.

• ToneCloud: Browse and download from over 100,000+ tones shared by guitarists around the world. Find one, save it, take it anywhere.

Build it. Layer it. Jam over it.
The built-in 60-second looper turns Spark PEDAL into a writing, practice and performance tool. Lay down a base, stack overdubs, undo and redo with intuitive footswitch control.

• Record, overdub, play, stop, undo, and clear — all hands-free

• 60 seconds of loop time per layer

• Dedicated switches mean no menu hunting mid-loop

Built to move with you.
Rugged chassis, heavy-duty steel switches, and a footprint that fits any setup. Set it on your desk for a recording session, drop it on the floor for the gig, or slot it into your pedalboard at rehearsal. However you want to play, Spark PEDAL is ready.

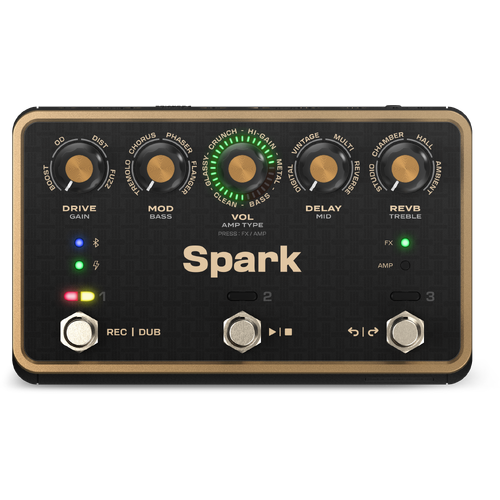

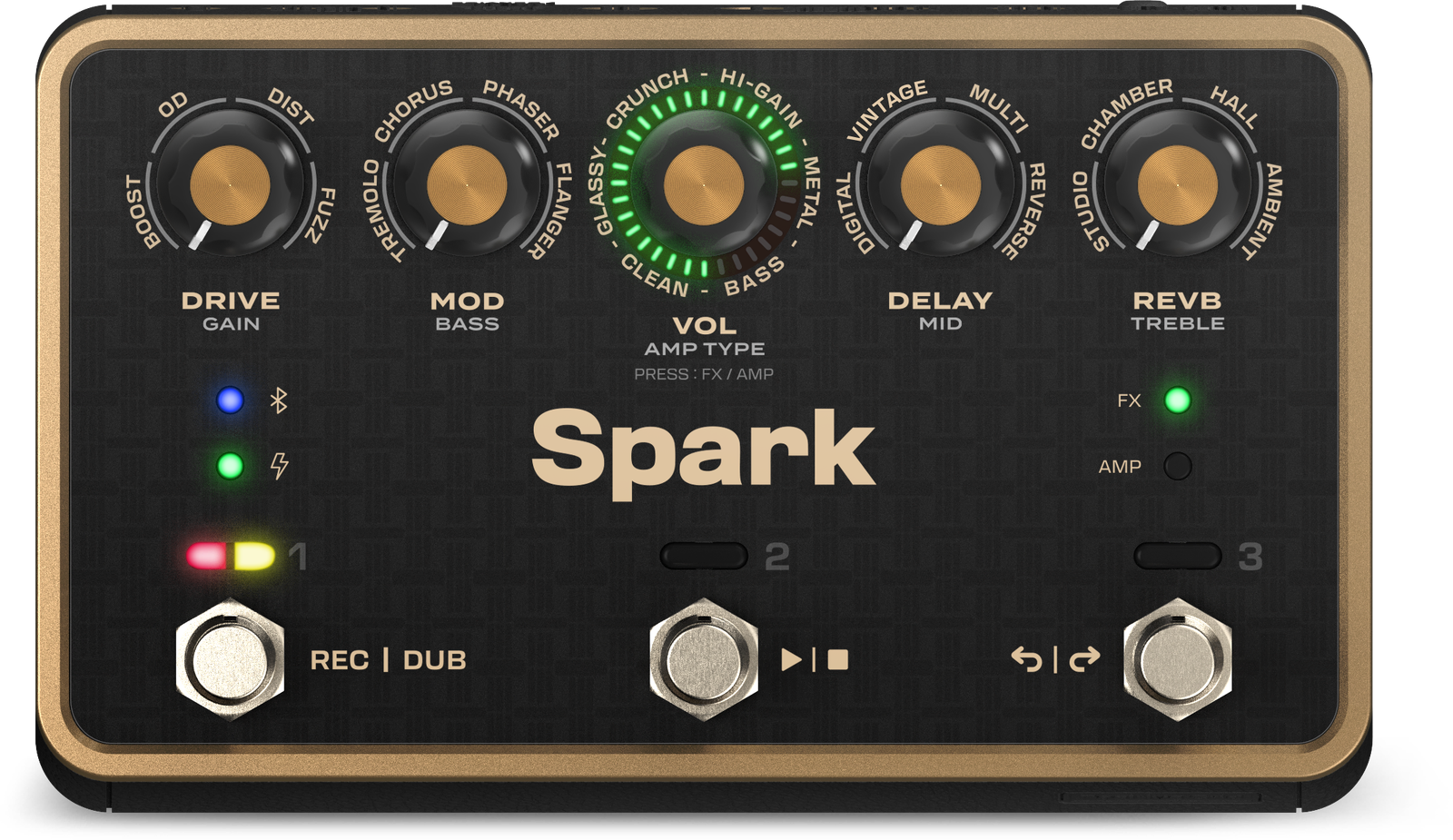

Top panel

• Main knob — Amp/FX mode selector

• Gain, Bass, Mid, Treble knobs

• 3 heavy-duty footswitches

• Dynamic LED indicators

• Built-in tuner

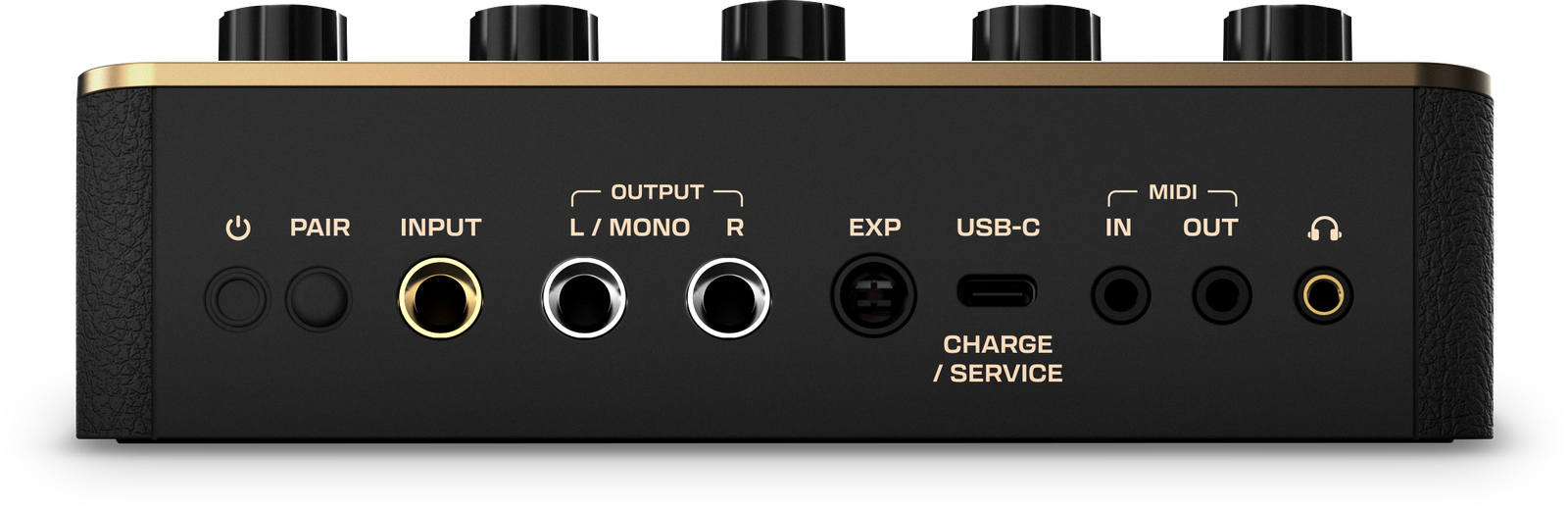

Back panel

• ¼″ instrument input (electric, acoustic, or bass)

• Two ¼″ line outputs (L/Mono + R)

• ⅛″ stereo headphone output

• USB-C (charging, firmware updates, audio interface)

• ⅛″ MIDI in/out

• ¼″ TRS expression pedal input

• Bluetooth 5.0 + WiFi 2.4GH

SPECIFICATIONS

Power
Main Input Power: DC 5V/1A (USB)
Battery Type: Built-in 3000mAh rechargeable lithium-ion battery
Play Time: Up to 7 hours
Charging Time: Approx 4.5 hours

Controls and Connectivity
Top Panel Controls & Displays

• 3 x Steel Footswitches for Preset Switching, Looper Control

• 4 x Knobs (VR) for Effects Control & Amp Tone Control

• 1 x Multifunction Control Knob (Encoder) for Amp Selection & Volume Control

• 6 x FootswitchIndicators (Multiple Color LEDs) for Preset & Looper Status

• 1 x Global Status Indicator (Multiple Color LED Ring)

• 1 x Power Indicator (To display battery level and charging status)

• 1 x Connection Indicator

Rear Panel Controls & I/O

• Power Button

• Pair Button

• 1 x ¼” Input

• 2 x ¼” Line Output

• 1 x ¼” TRS Expression Pedal Input

• 1 x USB-C Port for Charging, Service, and Audio Interface

• 2 x ⅛” MIDI Input and Output Port

• 1 x ⅛” Headphone Output

Wireless Connectivity

• Bluetooth 5.0 for Bluetooth Audio and Wireless Connection with Companion App

• ＷiFi (2.4GHz) for OTA(Over-the-air) Firmware Update

Box Contents

• Spark Pedal

• USB-C to USB-C Cable

• MIDI 3.5mm(1/8inch) to Standard DIN 5pin Adapter x 2

• Quick Start Guide

Physical Unit
Dimensions: L 175 x W 104 x H 47.2 mm (Knob/Switch excluded) / H 54.8 mm (Knob/Switch included)
Weight: 0.56 kg / 1.23 lb

Software
Mobile Apps: Spark App for iOS and Android (included)
Supported iOS version: iOS 15 or later
Supported Android OS version: Android 8.1 or later
