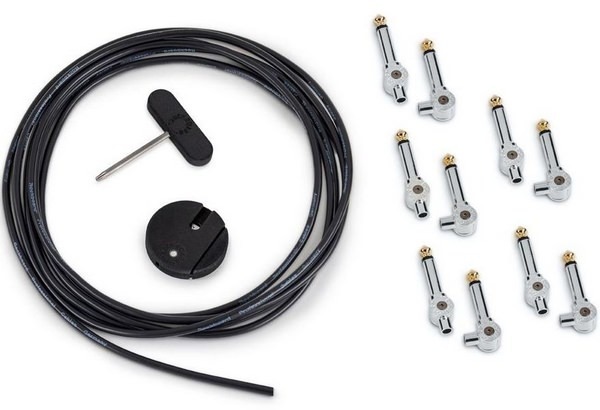

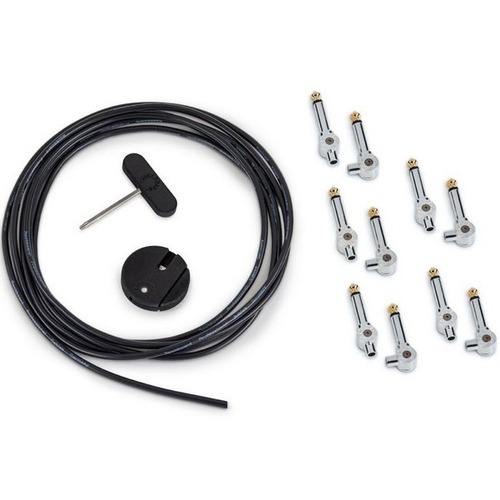

RockBoard Solderless Patch Cable Set 3m Chrome
PatchWorks Cable Set
In stock at warehouse.
Allow additional days for shipping or to collect in-store.
Important Warehouse Shipping Information
Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.
Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.
If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.
More infoCalculate Shipping
Enter post code to calculate shipping
The RockBoard® PatchWorks Solderless Patch Cable System features the first genuine 2-directional 2-piece solderless plug design on the market designed and developed in Germany. They will always offer the plug orientation you need, since you can easily flip them from straight to angled or vice-versa. The patented easy-to-use design has a two-piece plug features a slim and compact design for saving pedalboard real estate that can be changed from straight to angled simply by turning one part by 90 degrees. Using professional-grade, high-quality cable and connectors with gold-plated tips, the RockBoard® PatchWorks give you everything you desire for your hi-fi pedalboard. Build your own patch cables, in exactly the length you need them, cutting down on excess cable path and curbing signal loss.
FEATURES
-
Solderless patch cable system
-
Set for assembly of 5 patch cables
-
Unique 2-directional 2-piece connector design (patent pending)
-
Can be assembled as either straight or angled plugs
-
Plug’n play design - no cable stripping required
-
Includes 10 plugs and 300 cm / 118 7/64" cables
-
Plug dimensions straight (L x W x H) 20 x 12 x 10 mm / 13/16" x 1/2" x 3/8"
-
Plug dimensions angled (L x W x H) 15 x 13 x 10 mm / 9/16" x 1/2" x 3/8"
-
Gold plated tips
-
Chrome finish
-
Low capacitance cable for maximum signal transparency
-
Flexible oxygen free copper conductor 7 / 0.16 mm
-
Stiff PE insulation
-
Braided tinned copper shielding 6 x 16 / 0.12 mm
-
Black outer PVC jacket
-
Capacitance cond./shield less than 8 pF/decimeter
-
Conductor resistance of 4 mOhm/decimeter
-
Operating temperature -15°C to +70°C / 5° F to 158° F
-
Diameter 4 mm / 3/16"
-
Incl. TX8 wrench, cable cutter
For more information, click here to visit the manufacturers website.
