Roland 4CY-4WT-01 V-Cymbal Pack

Roland Cymbal Pack for DWe Acoustic-Electronic Wireless Convertible Drum Sets

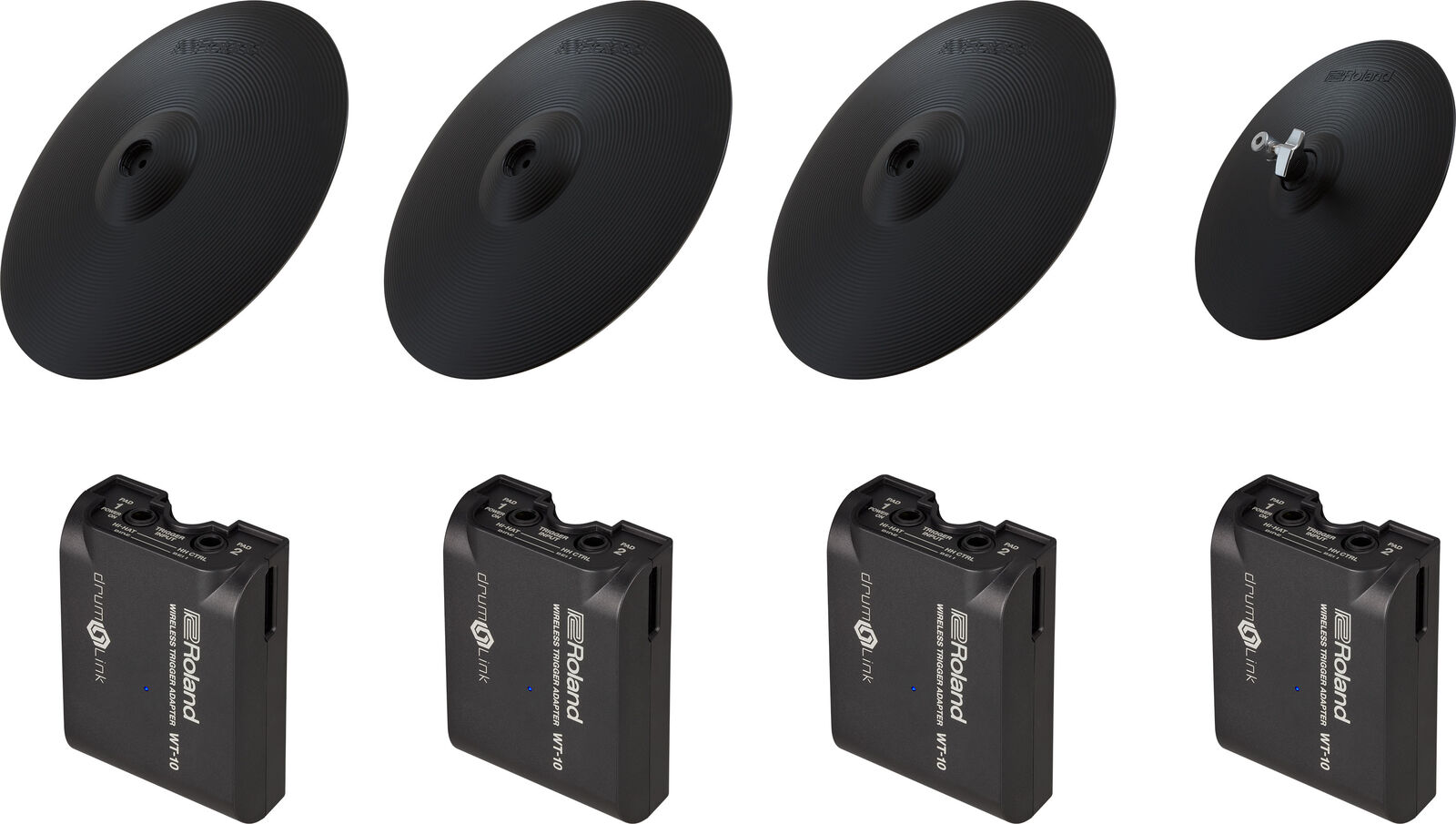

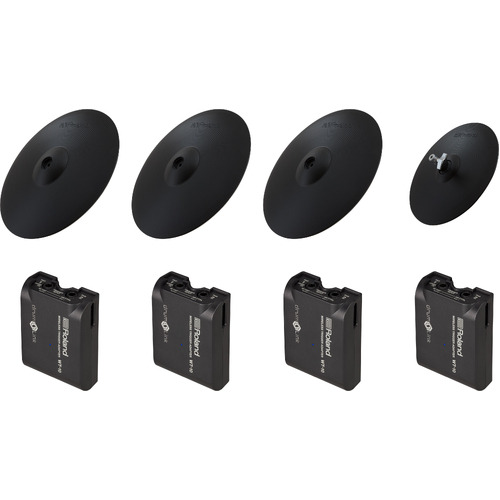

The 4CY-4WT-01 DrumLink Cymbal Pack provides a ready-made solution for outfitting a Drum Workshop DWe acoustic-electronic wireless convertible drum set with Roland electronic cymbals. Includes three CY-16R-T crash/ride pads, one VH-10 V-Hi-Hat pad, and four WT-10 Wireless Trigger Adapters.

FEATURES

• Cymbal pack for DWe acoustic-electronic wireless convertible drum sets from Drum Workshop

• Three CY-16R-T crash/ride pads

• One VH-10 V-Hi-Hat pad

• Four WT-10 Wireless Trigger Adapters

• WT-10 units communicate wirelessly with the DWe DrumLink Wireless Hub

SPECIFICATIONS

VH-10: Hi-Hat
Size: 12 inches
Trigger: 2 (Bow, Edge)
Connectors: TRIGGER OUTPUT jack, CONTROL OUTPUT jack
Dimensions: 314 (W) x 314 (D) x 103 (H) mm / 12-3/8 (W) x 12-3/8 (D) x 4-1/16 (H) inches
Weight: 1.2 kg / 2 lbs 11 oz (Excluding motion sensor unit)
Accessories: Owner’s Manual, Leaflet "USING THE UNIT SAFELY", Motion sensor unit, Insulating plate, Cable tie

CY-16R-T: Cymbal
Size: 16 inches
Trigger: 3 (Bow, Bell, Edge)
Connectors: BELL OUTPUT jack, BOW/EDGE OUTPUT jack
Dimensions: 407 (W) x 407 (D) x 56 (H) mm / 16-1/16 (W) x 16-1/16 (D) x 2-1/4 (H) inches
Weight: 1.3 kg / 2 lbs 14 oz

Accessories: Owner’s manual, Leaflet "USING THE UNIT SAFELY", Cymbal nut, Felt washer, Stopper, Cable tie

WT-10: Wireless Trigger Adapter
Wireless Format: Proprietary Protocol
Wireless Carrier Frequency: 2.4-2.485 GHz ISM Band
Transmission Range: 10 m (32 feet) line-of-sight
* May vary due to local conditions

Connectors
Trigger input jacks: (PAD1, PAD2)
Power Supply: Alkaline battery (AA, LR6) x 2
Battery Life: Approx. 6 months
* This can vary depending on the conditions of use.

Dimensions
Body: 70 (W) x 31 (D) x 98 (H) mm / 2-13/16 (W) x 1-1/4 (D) x 3-7/8 (H) inches
Includes horizontal clamp: 84 (W) x 73 (D) x 98 (H) mm / 3-5/16 (W) x 2-7/8 (D) x 3-7/8 (H) inches
Weight: 170 g / 6 oz (including batteries) / 225 g / 8 oz (including batteries and clamp)
Clamp Mountable Diameter Size: Φ4.5 mm––Φ32 mm / Φ3/16––1-5/16 inches

Accessories: Clamp, Connection cables (0.4 m / 15 inches) x 2, Owner's Manual, Leaflet "USING THE UNIT SAFELY"
