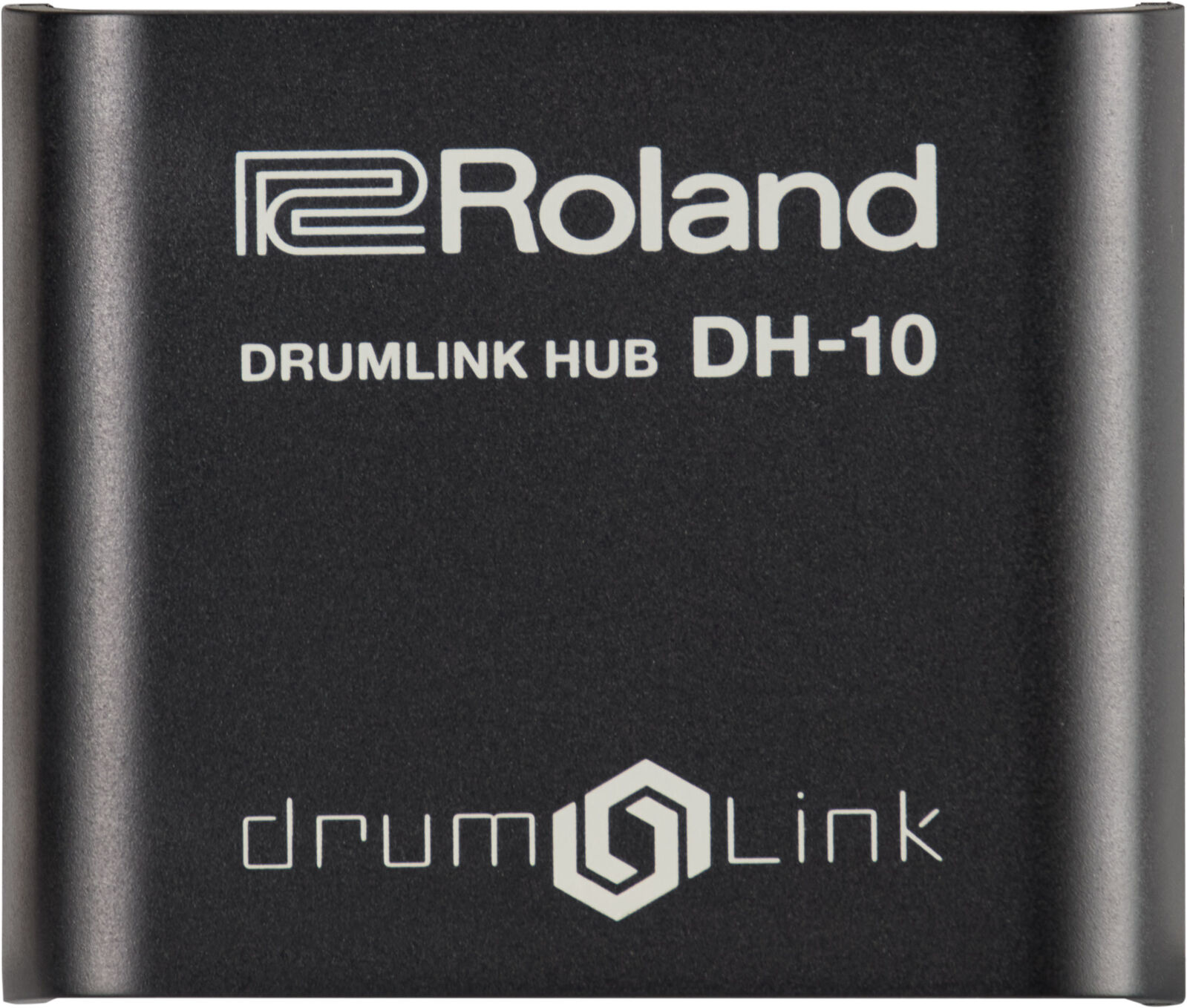

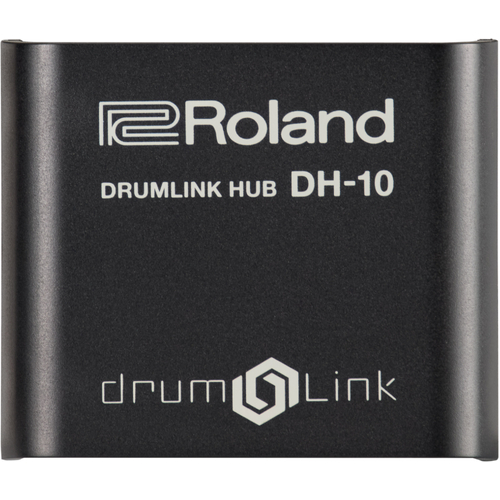

Roland DH-10

Compact Receiver for Roland WT-10 Wireless Trigger Adapters

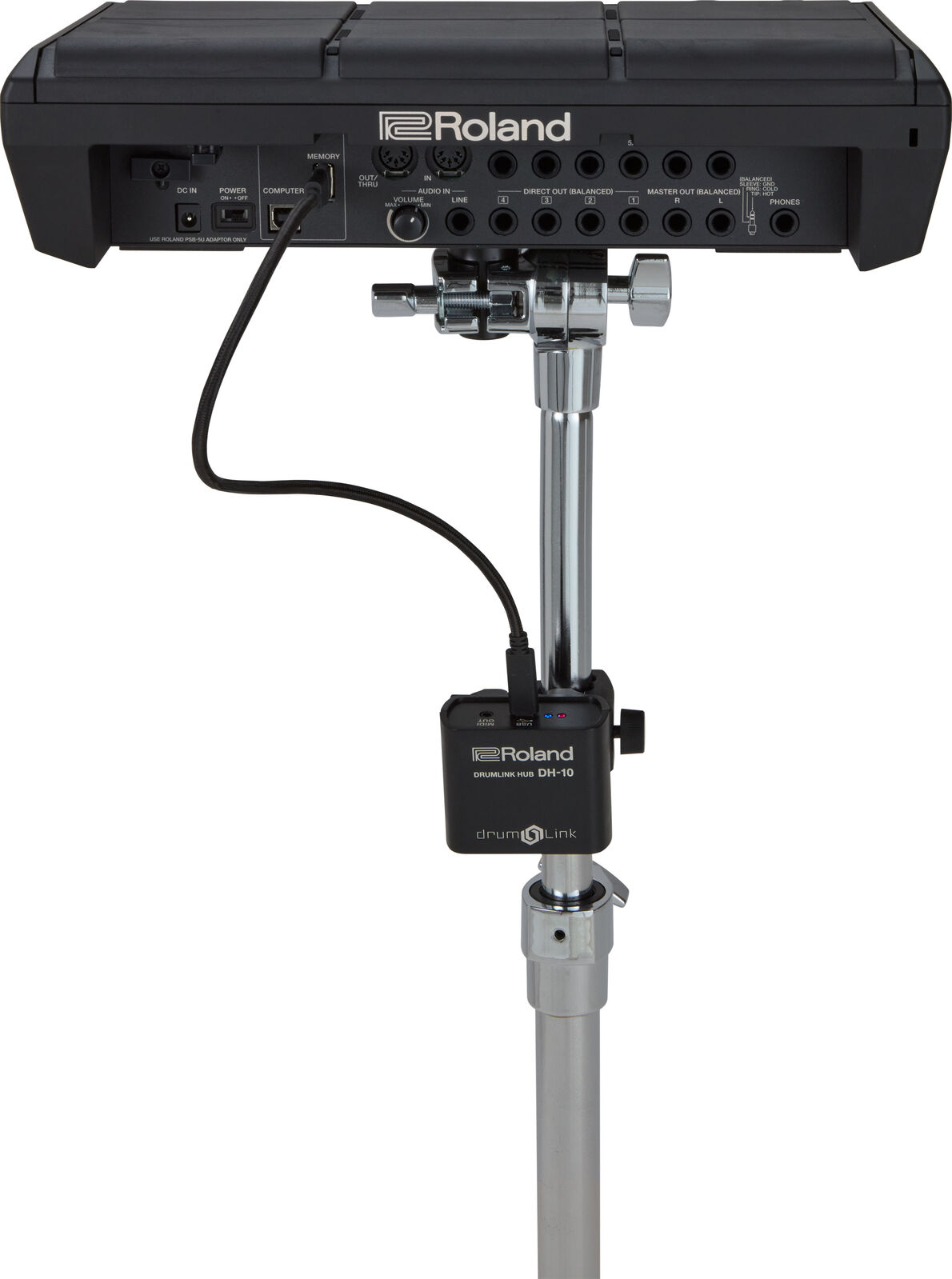

The advanced DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. The compact DH-10 DrumLink Hub captures trigger signals from multiple WT-10 Wireless Trigger Adapter units and sends them to a V71, TD-50X, or TD-27 V-Drums sound module, SPD-SX PRO Sampling Pad, or a computer.

FEATURES

• Wireless receiver for the Roland DrumLink system

• Compatible with the V71, TD-50X, and TD-27 V-Drums sound modules and SPD-SX PRO Sampling Pad

• Receives trigger signals from multiple WT-10 Wireless Trigger Adapter units

• Connects to the V-Drums module or a computer via USB-C or MIDI

SPECIFICATIONS

Wireless Format: Proprietary Protocol
Wireless Carrier Frequency: 2.4-2.485 GHz ISM Band
Transmission Range: 10 m (32 feet) line-of-sight
* May vary due to local conditions

Connectors
USB Port: USB Type-C(R)
MIDI OUT connector: TRS mini type
Power Supply: Supplied from via USB

Dimensions
Body: 70 (W) x 45 (D) x 58 (H) mm / 2-13/16 (W) x 1-13/16 (D) x 2-5/16 (H) inches
Includes horizontal clamp: 84 (W) 88 (D) x 58 (H) mm / 3-5/16 (W) x 3-1/2 (D) x 2-5/16 (H) inches
Weight: 65 g / 3 oz / 120 g / 5 oz (including clamp)
Clamp Mountable Diameter Size: Φ4.5 mm––Φ32 mm / Φ3/16––1-5/16 inches
Accessories: Clamp, USB Type-C(R) cable (0.5 m / 19 inches), Type-C(R) to A adaptor, Owner's Manual, Leaflet "USING THE UNIT SAFELY"
