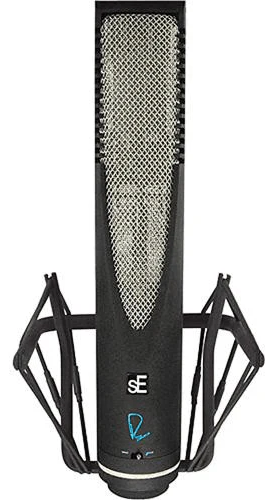

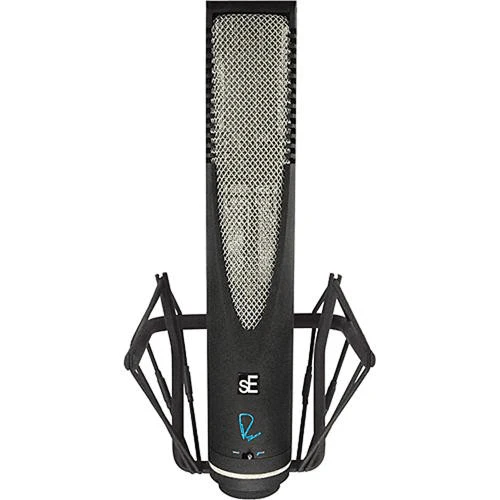

sE Electronics RNR1

The world's first mic from Mr. Rupert Neve

With custom transformers and discrete circuitry from the man behind the recording industry as we know it, the RNR1 hears more than any other ribbon on the planet.

Siwei and Rupert first met in 2004 and that's when they started exchanging ideas. Soon, their first brainchild started to take shape and their collaboration on an "impossible" microphone began: an active ribbon mic with high-frequency response extending to an unprecedented 25kHz. Using two of Rupert's custom transformers and highly specialized circuitry, the RNR1 captures more of your soundscape than any other ribbon in the world.

FEATURES

• Two custom Rupert Neve-designed transformers

• Ultra-wide frequency response preserved by integrated circuitry

• Hand-tensioned 2.5µm aluminum ribbon

• Unique and bold design aesthetic with precision-machined and scalloped edges

• Custom-designed and easy-to-use shock mount

• 100 Hz bass-cut filter and gold plated XLR connectors

Recommended Use: Vocals, acoustic guitar, electric guitar cab, orchestral + strings, piano, woodwinds, brass, drum kit, cymbals / OH, room

SPECIFICATIONS

Components
Transducer: Hand-crafted 2.5 µm aluminum ribbon

Power
Connectivity: 3-pin male XLR connector
Powering: 48V Phantom Power (P48 according to IEC 61938)
Electronics: Active
Electrical impedance: 200 Ohms
Matching connectors: XLR3F

Sound
Polar patterns: Figure-8
Frequency range: 20 Hz - 20 kHz
Sensitivity: 25 mV/Pa (-32 dB)
Max SPL: 137 dB (0.5% THD @ 1kHz)
Equivalent noise level: 17 dB(A)
Signal to noise ratio: 77 dB
Low-cut filter: 100 Hz

Dimensions
Mic diameter: 47 mm (1.85 in.)
Mic length: 268 mm (10.55 in.)
Mic Weight: 860 g (30.34 oz.)

What's in the box:

• RNR1 microphone

• Custom shockmount

• Wooden box

• Metal case

• Thread adapter

• User manual
