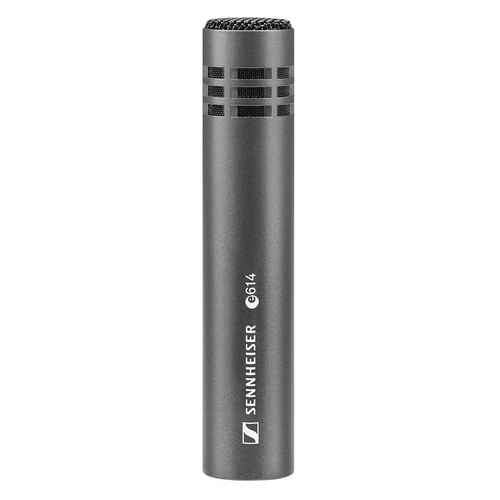

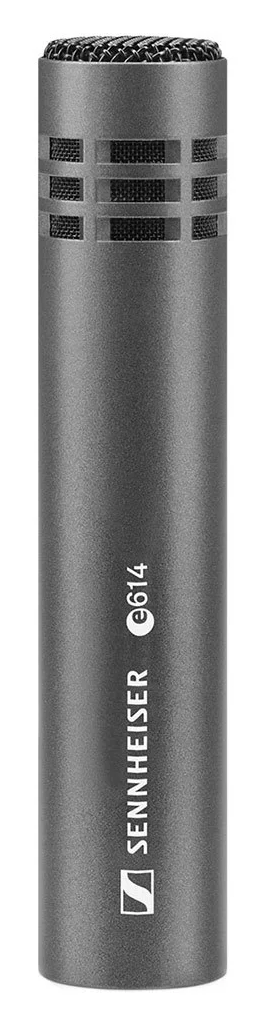

Sennheiser e 614

Super-cardioid electret condenser microphone for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording.

Extremely wide frequency range. Focused pick-up. Outstanding transient response. As a condenser microphone, the e 614 convinces in demanding scenarios with a natural, full sound. Its wide frequency range captures nearly every instrument; its extraordinary dynamics conjure fine nuances from the air, giving them space and depth.
Thanks to the precise directivity, the e 614 safely reduces the bleed from other instruments on stage or in the studio. With its high maximum sound pressure level, it is especially designed for percussion and as an overhead mic, but also effortlessly supports stringed and woodwind instruments.

• Condenser microphone

• Excellent directivity over the entire frequency range (40-20,000 Hz)

• Natural sound for flexible applications

• Designed for high sound pressure levels

• Rugged and ready for the road

SPECIFICATIONS

Dimensions: Ø 20mm, L = 100mm
Connector: XLR-3
Frequency response: 40 - 20000 Hz
Transducer principle: pre-polarised condenser microphone
Weight: w/o cable: 73 g
Pick-up pattern: super-cardioid
Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
Nominal impedance: 50 Ω
Min. terminating impedance: 1000 Ω
Phantom powering: 12 – 52 V / 3 mA
Equivalent noise level: 24 dB(A)
Equivalent noise level weighted as per CCIR: 35 dB
Maximum sound pressure level (passive): 139 dB/SPL

What's in the Box

• e 614

• Microphone pouch

• Microphone clip MZQ 100
