Sennheiser EW 100 G4-CI1-AS

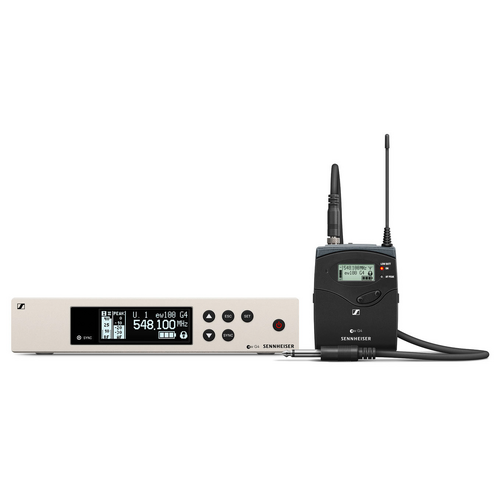

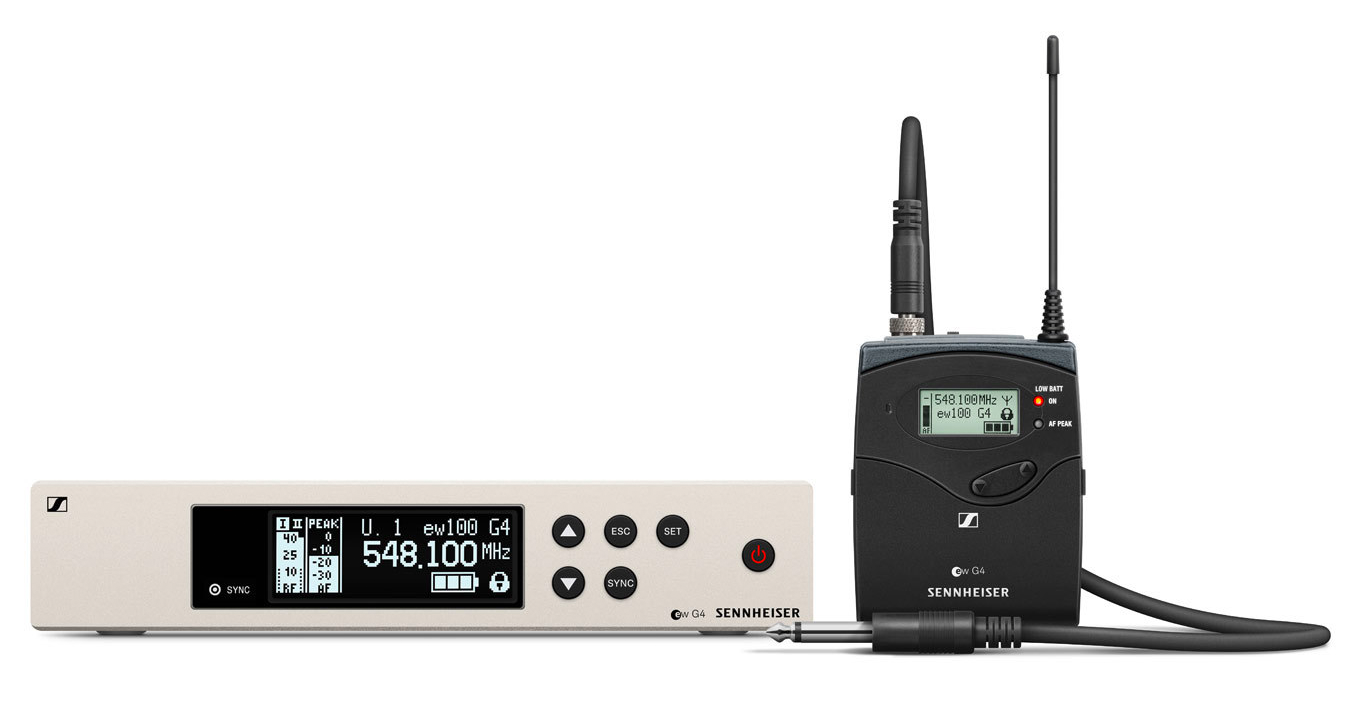

Rugged all-in-one wireless system for guitar and bass. Set consists of 1 SK 100 G4 wireless bodypack, 1 Ci1 Instrument cable, 1 EM 100 G4 Rackmount receiver, 1 rack kit and 1 RJ10 Linking cable.

Engineered for professional live sound: Rugged all-in-one wireless system for guitar and bass. Robust bodypack transmitter and Ci1 instrument cable for daily use on stage

• Engineeered for professional live sound: Rugged all-in-one wireless system for guitar and bass.

• Robust bodypack transmitter and robust Ci 1 instrument cable for daily use on stage

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

Reliability and performance
Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.

Feature-rich and built to last
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

The Ci1 instrument set
For guitarists, bassists and instrumentalists alike, the EW 100 G4-Ci1 is the set you need to take your wireless performance to the next level. Featuring the same receiver and bodypack transmitter as the other ewG4 sets, the Ci1 replaces a microphone with a 1/4" (6.3mm) instrument cable that includes a 3.5mm locking connection. A metal housing strikes the perfect balance between lightweight and rugged, built to handle the lifestyle of a working musician.

SPECIFICATIONS

EM 100 G4
Frequency range: AS: 520 - 558 MHz
Dimensions: Approx. 190 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
Signal-to-noise ratio: ≥ 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Current consumption: 300 mA
Adjacent channel rejection: Typically ≥ 65 dB
Intermodulation attenuation: Typically ≥ 65 dB
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 2.5 μV for 52 dBA eff S/N
Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 °C to +55 °C
Receiver Principle: True diversity
Blocking: ≥ 70 dB

SK 100 G4
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: ≥ 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: ≤ 25 µA
Input impedance: 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm

What's in the Box

• EM 100 G4 true diversity receiver

• SK 100 G4 bodypack transmitter

• Ci 1 instrument cable

• rackmount set

• power supply

• 2 AA batteries

• 2 rod antennas

• RJ 10 cable

• quick guide

• safety guide

• manufacturer declaration sheet

• frequency supplement sheet
