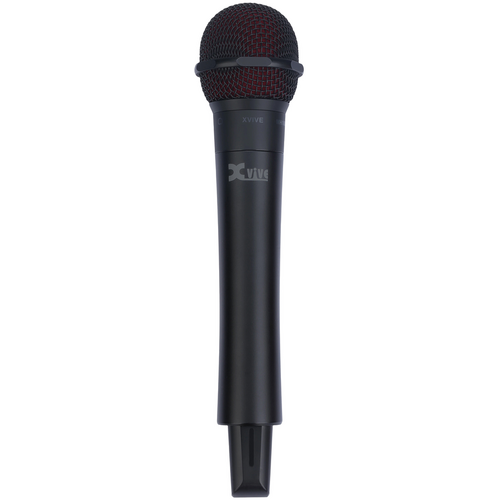

Xvive M5 Wireless Microphone System

M5 is a compact and easy-to-use wireless microphone system designed for stage performance, hosting, teaching, livestreaming and portable public address applications. It features one auto-sync channel and six fixed channels (Channels 1–6) for flexible use in single or multi-system setups.

FEATURES

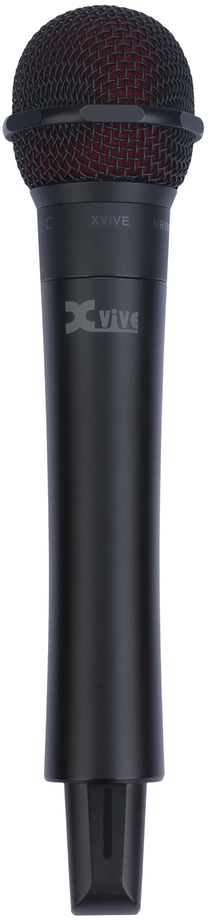

• The M5 System includes a high-quality dynamic Microphone/Transmitter and a wireless Receiver

• Stable wireless broadcast on the 5.8 GHz band with high-fidelity 24-bit/48 kHz audio and very low latency

• 7 wireless channels to choose from including default Auto mode and six fixed-frequency channels

• The mic head can be swapped out with mic heads from other brands including Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt® and Austrian Audio®

• Microphone signal can be sent to multiple M5 Receivers

• Up to six M5 Systems can be used simultaneously in one location on fixed-frequency channels, and/or up to five M5

Channel Options
M5 offers seven channel options: Channel 0 (Auto Mode) and six fixed-frequency channels (1-6). Your set will connect in Auto Mode by default—but you can use any fixed-frequency channel by setting the Transmitter and Receiver to the same channel (1-6). Channel 0 automatically scans the local RF environment and selects available frequencies to help maintain a stable wireless connection. For typical single-set use, Channel 0 is recommended.

Connecting the Receiver

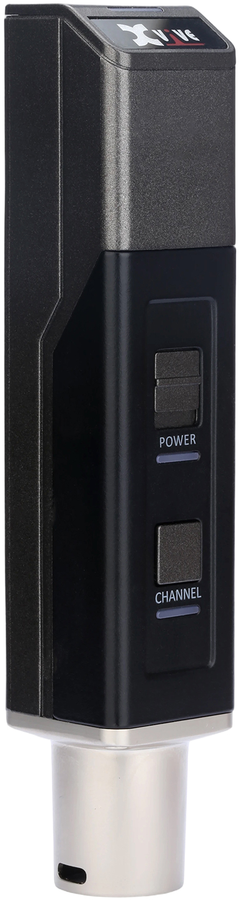

After wirelessly linking the units, connect the M5 Receiver to your audio device. Plug the Receiver directly into an XLR mic input on your device (mixer, powered speaker, audio interface). This is the simplest and most common setup.

One Microphone, Multiple Receivers
To send a signal from one Microphone/Transmitter to multiple Receivers, select one of the fixed-frequency channels (1–6) and set the Transmitter and all Receivers to the same channel. After wirelessly linking the units, connect the M5 Receiver to your audio device. Plug the Receiver directly into an XLR mic input on your device (mixer, powered speaker, audio interface). This is the simplest and most common setup.

Multiple Systems, One Area
Using fixed-frequency channels (1–6), you can use up to six M5 systems simultaneously in the same area, with one system per fixed channel. And/or, you can use up to five factory pre-paired systems using Auto Mode (Channel 0)—each system operating as a one-to-one paired Transmitter and Receiver. The limits above do not restrict the ability of a single Transmitter to connect to multiple Receivers using fixed-frequency channels.

XLR-to-1/4" Options

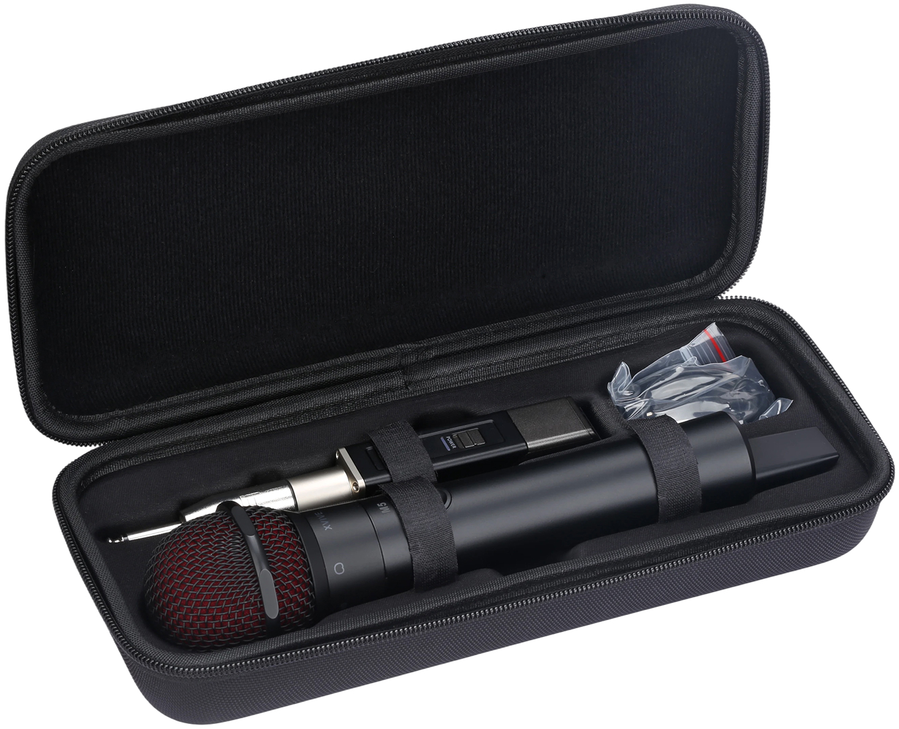

The M5 Receiver connects to a female XLR input only, ready to connect directly into an XLR mic input on your mixer or interface. However, the included XLR-to-6.35 mm (1/4”) adapter also allows you to connect to 1/4” inputs on powered speakers or amplifiers! The M5 System comes in a durable carry case and includes the Microphone/Transmitter, Receiver, XLR-1/4” adapter, USB charging cable, and user manual.

Capsule Compatibility
The M5 handheld Transmitter is compatible with the following Microphone Heads:

• Shure®: Beta58A, Beta87A, Beta87C, KSM8, KSM9, KSM9HS, PG58, SM58, SM86, SM87A

• Electro-Voice®: RC2-767, RC2-967, RC2-PL80a, RC2-410, RC2-510, RE420-RC3, RE520-RC3

• Heil Sound®: RC22, RC35

• Telefunken®: M80WH, M81WH

• Lectrosonics®: HHC, HHVMC

• Lewitt®: W9

• Austrian Audio®: OD505 WL1, OC707 WL1

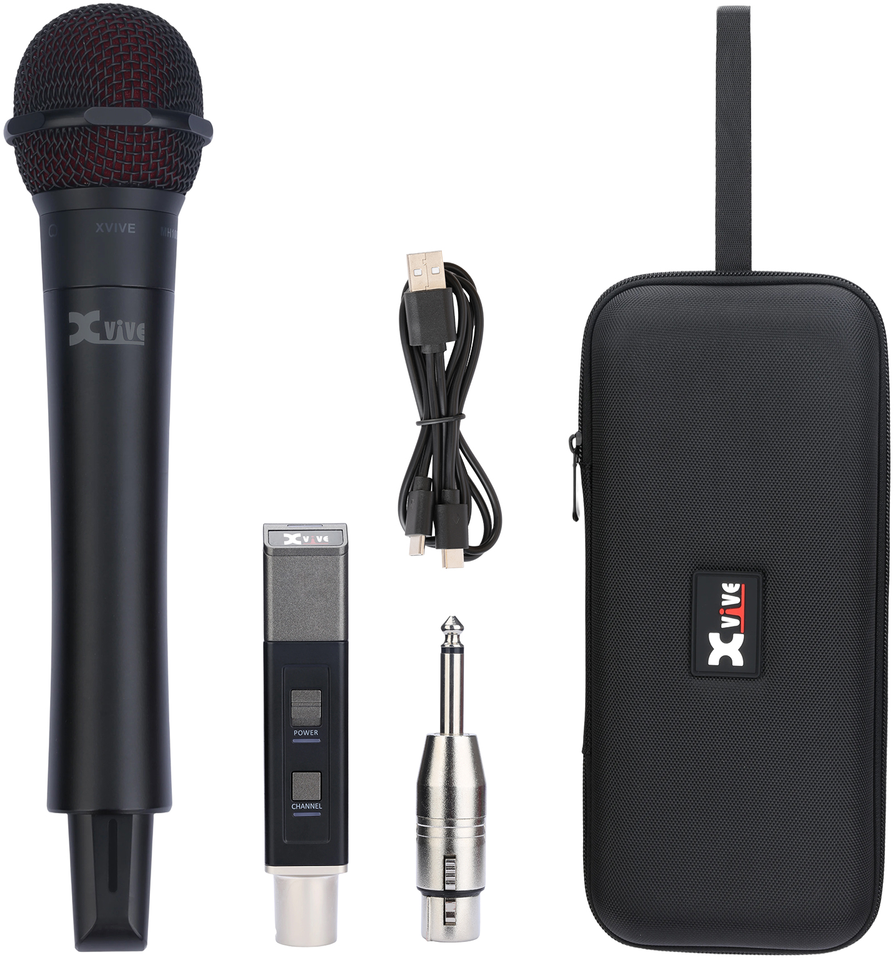

What's Included
The M5 System comes in a durable carry case and includes the Microphone/Transmitter, Receiver, XLR-1/4” adapter, USB charging cable, and user manual.

SPECIFICATIONS

Wireless Type: 5.8 GHz ISM worldwide open band
Bit Depth/Sample Rate: 24-bit / 48 kHz
Switchable Channels: 7 (Auto Mode + 6 fixed-frequency channels)
Frequency Response: 20 Hz – 20 kHz
Dynamic Range: 110 dB
Latency: <5 ms
Operating Range: 30.5 m / 100 ft (line-of-sight)
Battery Type: Onboard lithium-ion, USB-rechargeable
Battery Life: 12 hrs (Transmitter), 10 hrs (Receiver),
Charging Time: 4.5 hrs (Transmitter), 3.5 hrs (Receiver)
