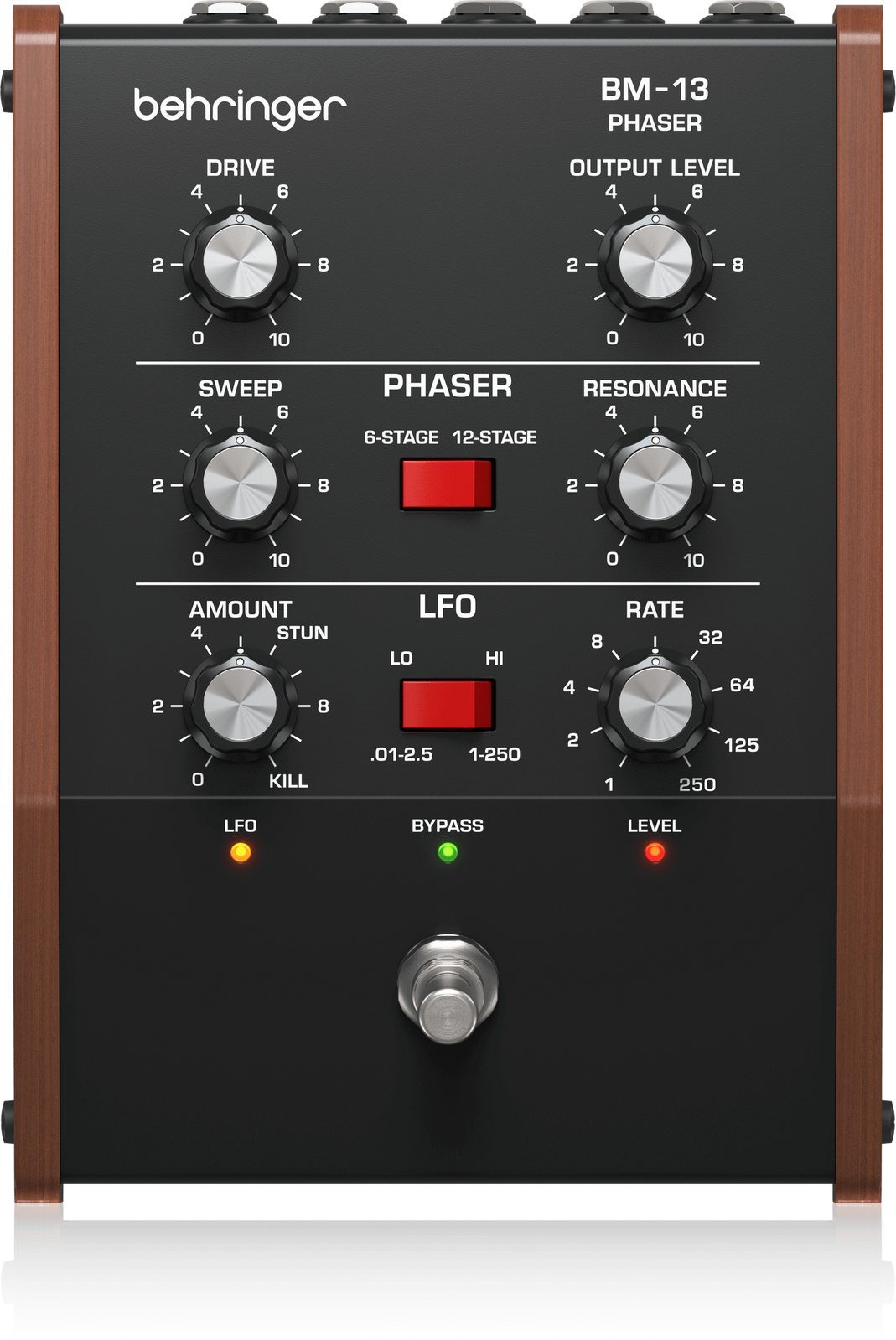

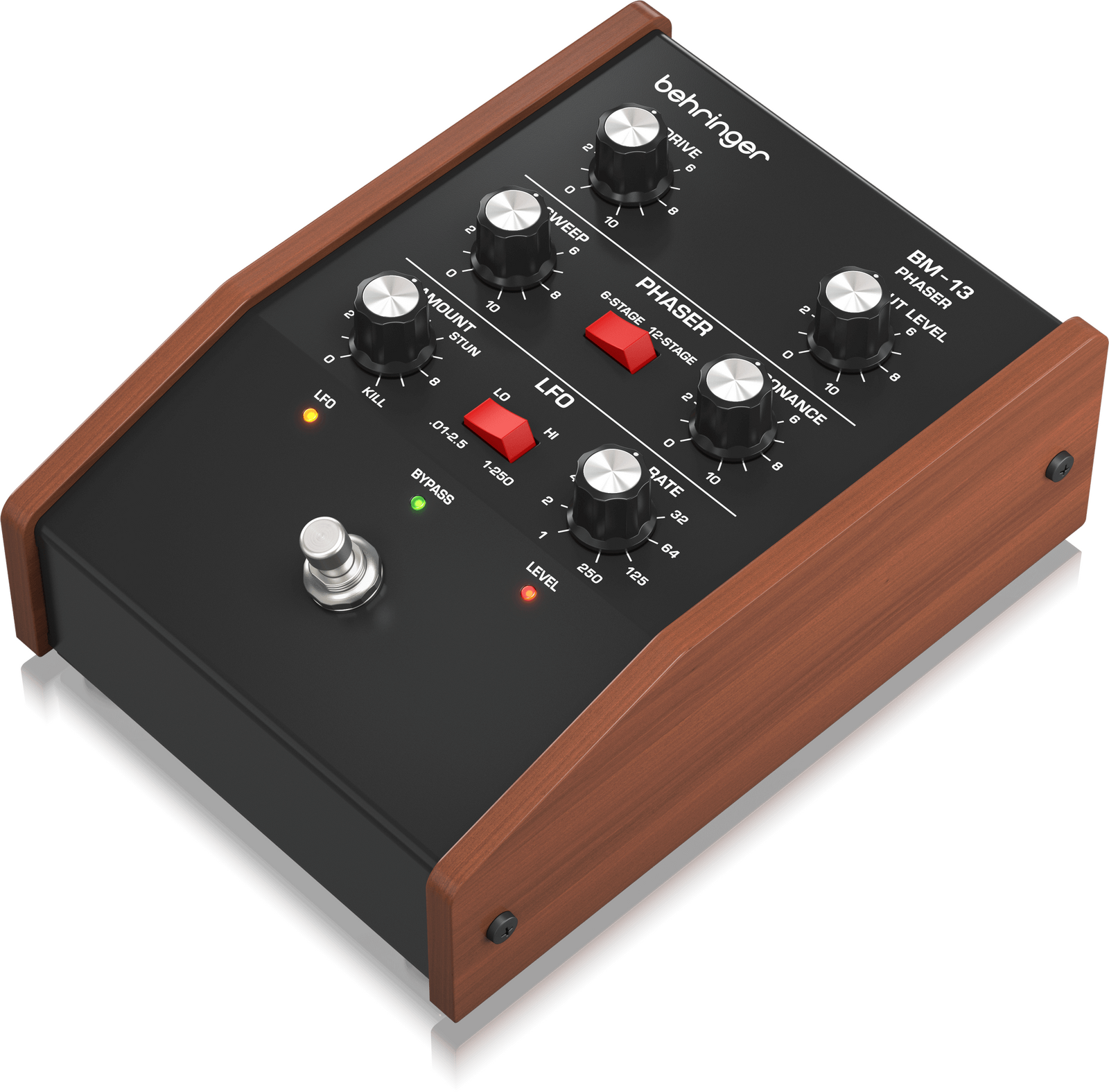

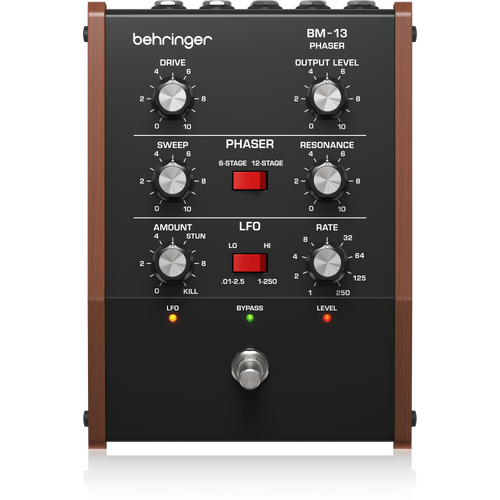

Behringer BM-13

The Behringer BM-13 PHASER is your new go-to box of swirling, sweeping, analog goodness. Whether you’re chasing subtle vintage shimmer or deep resonant sweeps, BM-13 delivers timeless phaser tones with powerful controls for shaping the waveform the way you want.

A Control Freak’s Dream
With hands-on control over sweep, resonance, LFO rate and amount, BM-13 is as tweakable as it is musical. Want to slow things down to a hypnotic pulse? Crank that LFO down to a lazy 0.01 Hz. Feeling spicy? Flip it into high gear for warbly, out-there textures at up to 250 Hz. Add a little grit with the Drive knob, fine-tune your output level and explore either 6-stage or 12-stage phasing – each delivering its own flavor dimension and character.

Plug In and Lose Yourself
From funked-out guitar riffs to synth pads that melt into space, BM-13 is built for exploration. Guitarists and bassists will love how it adds motion without washing out your tone, while keyboardists and synth wizards can drench their patches in analog swirl. Even in the studio, it’s a secret weapon – run vocals, drums, or entire mixes through it for instant vibe and warmth. And with stereo output capability, your sound can stretch wide across the stage or mix.

Built to Play
Modulation doesn’t stop at the stomp switch. BM-13 comes equipped with expression pedal inputs, giving you full control over key parameters from modular gear or performance pedals. Whether you’re a traditional player or an experimental sound-shaper, the Behringer BM-13 PHASER invites you to dive in and make it your own.

SPECIFICATIONS

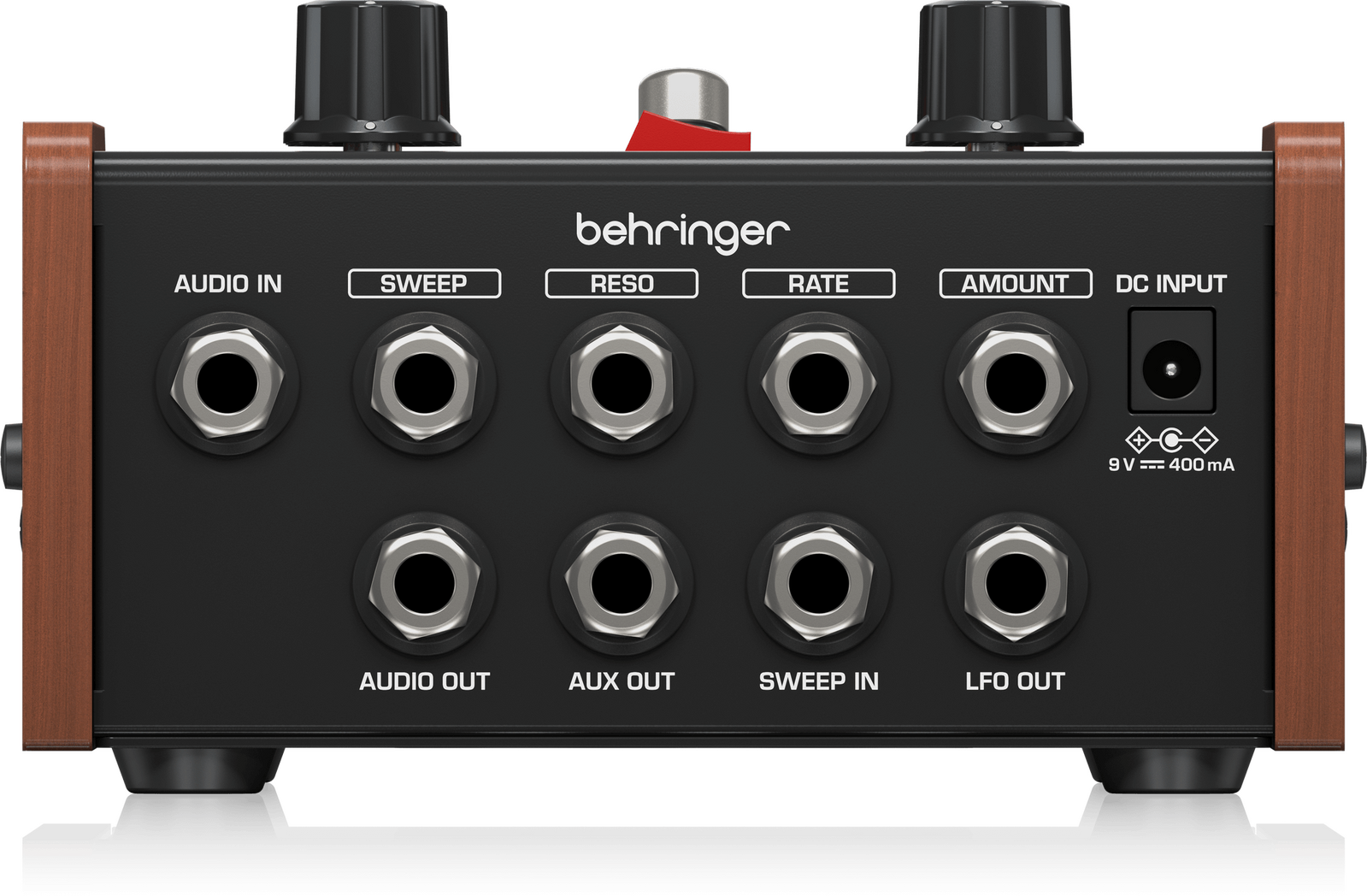

Audio Connections
Audio in
Connector: 1 x 1/4" TS, unbalanced
Impedance: 1 MΩ

Audio out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 6.8 kΩ

Aux out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 6.8 kΩ

Control Connections
Sweep
Connector: 1 x 1/4" TRS
Impedance: 40 kΩ, unbalanced
CV input range: 0 V to +10 V

Reso
Connector: 1 x 1/4" TRS
Impedance: 50 kΩ, unbalanced
CV input range: 0 V to +5 V

Rate
Connector: 1 x 1/4" TRS
Impedance: 34 kΩ, unbalanced
CV input range: 0 V to +5 V

Amount
Connector: 1 x 1/4" TRS
Impedance : 40 kΩ, unbalanced
CV input range: 0 V to +5 V

Sweep in
Connector: 1 x 1/4" TRS
Impedance: 47 kΩ, unbalanced
CV input range: ±2.5 V

FLO out
Connector: 1 x 1/4" TRS
Output impedance: 2.2 kΩ, unbalanced
CV input range: ±2.8 V

Controls
Drive: 1 x rotary knob
Output level: 1 x rotary knob
Sweep: 1 x rotary knob
6-stage / 12-stage: 1 x rocker switch
Resonance: 1 x rotary knob
Amount : 1 x rotary knob
Hi / lo: 1 x rocker switch
Rate: 1 x rotary knob
Bypass: 1 x footswitch

System
Frequency response: 20 Hz to 20 kHz (+0 / -0.3 dB)
Dynamic range: > 73 dB, 20 Hz to 20 kHz
Signal-to-noise ratio: > 63 dB
Overall gain: 22 dBu

Power Supply / Voltage
Power input: Standard 9 V DC,  centre negative, > 400 mA (power supply not included)
Power consumption: 0.75 W

Dimensions / Weight
Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm / (3.38 x 5.81 x 7.75")
Weight: 1,047 g (36.9 oz)
