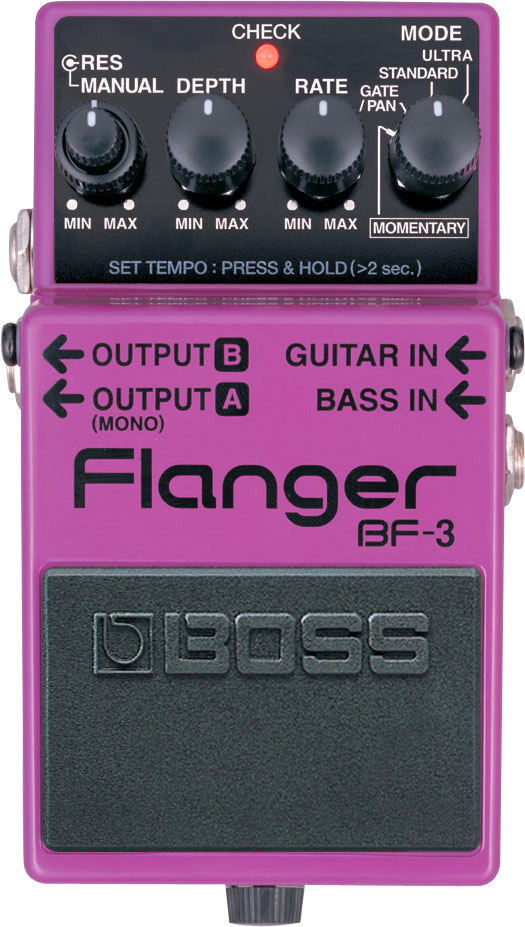

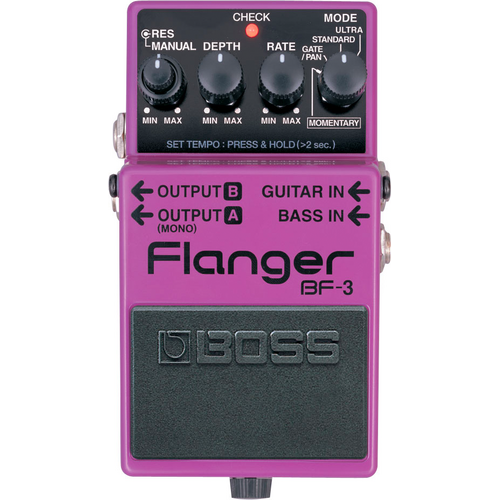

BOSS BF-3 Flanger

THE FLANGER GETS A FACE-LIFT

Building on the 20-year legacy of the famous BOSS BF-2, the new BF-3 flanger pedal gives guitarists and bassists an updated version of the classic BOSS flanger with the thickest stereo flanging sounds ever. Two new modes (Ultra and Gate/Pan) create stereo flanging with incredible depth--even Slicer-type effects and sounds that seem to "swirl" around the listener. An instant classic.

FEATURES

• BOSS' best flanging effects in a compact pedal

• New Ultra and Gate/Pan modes for ultra-fat flanging and futuristic slicer-type sounds, respectively

• Momentary mode turns flanging on instantly

• Tap tempo adjustable via pedal

• Independent Guitar and Bass inputs and stereo outputs

• BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• MODE knob

• RATE knob

• DEPTH knob

• RES (Resonance)/MANUAL knob

• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors:

• GUITAR IN jack: 1/4-inch phone type

• BASS IN jack: 1/4-inch phone type

• OUTPUT A (MONO) jack: 1/4-inch phone type

• OUTPUT B jack: 1/4-inch phone type

• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 60 mA
Expected battery life under continuous use: Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

• Registration Card

• Alkaline battery (9 V, 6LR61)

Options (sold separately): AC adaptor: PSA series

Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 425 g, 15 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
